PCD Cutter Grinding Machine with High Precision for Inserts Drill and Endmill Grinding

Categories PCD&CBN Insert Grinder
Model NO.: BT-150HS
Type: Tool Grinding Machine
Processing Object: Curve
Abrasives: Grinding Wheel
Controlling Mode: CNC
Automatic Grade: Automatic
Cylindrical Grinder Type: Universal Cylindrical Grinder
Precision: High Precision
Certification: CE, ISO 9001
Condition: New
Transport Package: Wooden Case
Specification: 1890mm*1650mm*1980mm
Trademark: DEMINA
Origin: China
HS Code: 8460390000
Production Capacity: 50 Sets Per Year
MOQ: 1 Piece
Price: US $34,000 / Piece
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PCD Cutter Grinding Machine with High Precision for Inserts Drill and Endmill Grinding

Product Description

BT-150HS is designed for the economical manufacturing and regrinding of cutting tools made from PCD, PCBN, CVD, tungsten, carbide and other materials. It can grind angles and radii on standard and special turning and milling inserts, boring tools, grooving tools and many types of special turning tools.

Our Advantages
  1. Stable feed: in order to avoid periodic impact, the machine to be equipped with "flexible feed" of air pressure device, effectively improve the roughness of the tool edge.
  2. Our company uses a big screen to display tool images in front of the operation position. An eye lift can cooperate. It improves production efficiency about 50%.
  3. Equipped with grinding head lifting adjustment shaft, grinding point vertical lifting device developed for non-standard tools (such as V-cut cutter, dense tooth milling cutter and tool front cutter face, etc.), lifting distance ±75cm.
Product Parameters
Machine Parameters
Diameter of Grinding wheel150mm
Grinding wheel center hole40mm
Grinding Spindle Power3 KW
RPM of Grinding500~4,000 RPM
Magnification of CCD measuring SystemUp to 70 times
Coolant Tank with Filter PaperAbout 70 L
Electrical Supply12 KW
Power Supply380V /3 Phase/50Hz
Overall Dimensions L×W×H1890×1650×1980mm
Weight2000kg

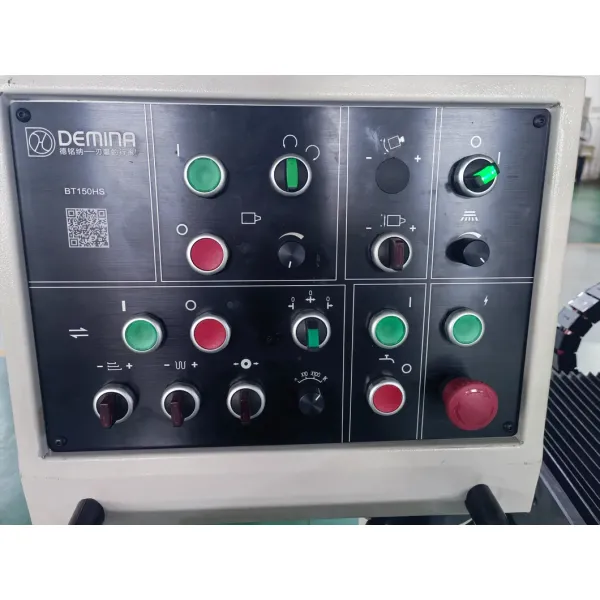

Detailed Photos
