Optical Line Protection OLP with 2*2 Optical Switch and Power Consumption 5W

Optical Line Protection OLP with 2*2 Optical Switch and Power Consumption 5W

Optical Line Protection OLP with 2*2 Optical Switch and Power Consumption 5W
Optical Line Protection OLP with 2*2 Optical Switch and Power Consumption 5W
Categories Others
Model Number: JWM1900-OLP-B
Place of Origin: Beijing, China
Brand Name: JHBF
Packaging Details: 1 Pcs in 1 Cartoon
Supply Ability: 1000 Piece/Pieces per Month
Price: $440.00/pieces 1-9 pieces
Type: Fiber Optic Equipment
Use: Metro Network
Product name: OLP-B
Connector: LC
Data Rate: 100Mbit/s ~100Gbit/s
Life of Optical Switch: 1000000 times
Protection Mode: 1:1
Insertion Loss: <5.3dB
Platform(Chassis): JWM1900 Chassis 1U/2U/5U
Max Switching Time: <25ms
Typical Switching Time: 10ms
Power Consumption: <5W
Port: TianJin
Contact Now
Company Info.
Tianjin Janhoo Optoelectronics Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Optical Line Protection OLP with 2*2 Optical Switch and Power Consumption 5W

Products Description

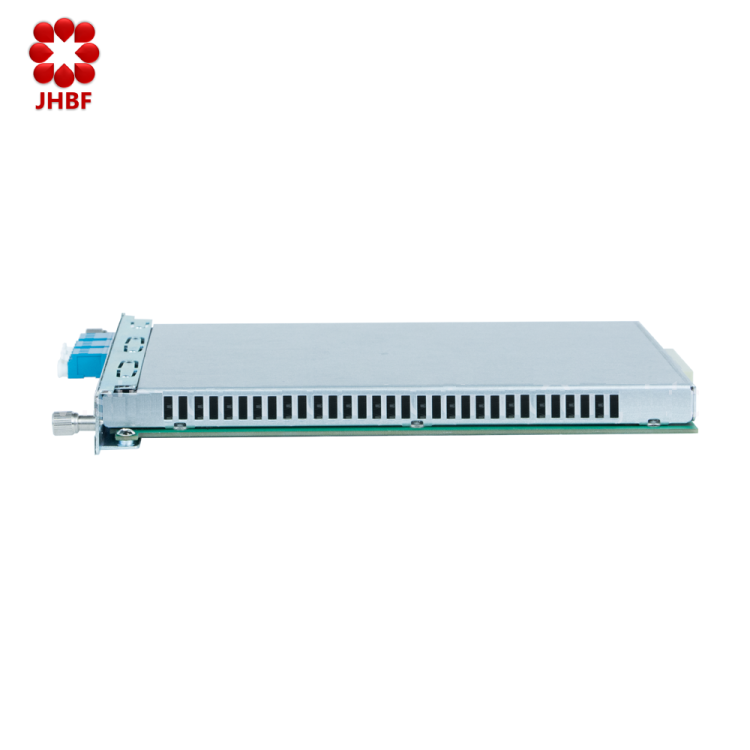

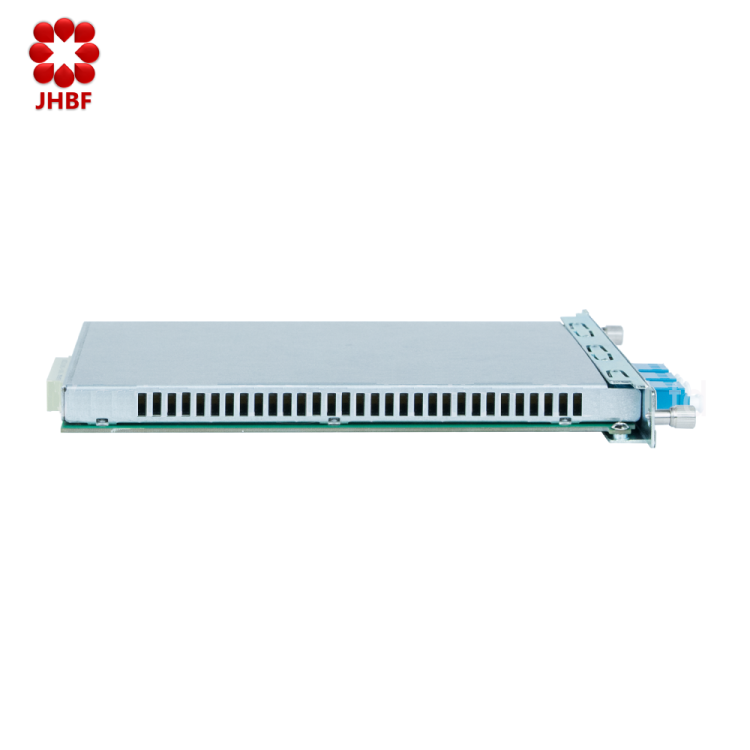

Optical Line Protection Card(OLP)
JHBF OLP series Equipment is Optical Line Protection (OLP) system, which is developed for optical fiber line backup. It can auto
identify the fiber line signal status of fiber, and automatically switching to protect system when the fiber faults occurred, improving the service quality of carriers.
JHBF OLP cards can be inserted into our JWM1900 chassis platform, 1U, 2U, 4U for different application, and can be managed by smartphone.
We have several kinds OLP, and it is widely used in backbone, metro and access network. OLP-B (1:1) is focus on backbone network
protection because it is low insertion loss, OLP-A (1+1) is focus on metro network because it is cost effective and fast
switching.
Features
* High reliability, support outdoor application
* Supporting dual-fiber bidirectional and single-fiber bidirectional protection
* Small and light, can be placed flexibly,Plug and play, easily install and maintenance
* Wide optical power monitoring range: -50dBm~+25dBm
* Support 1+1 (double-sending, optional receiving), 1:1 (optional sending and receiving) protection
* Short optical path protection switching time: ≤25ms
* Supporting SNMP-based unified network management platform
* Support remote monitor and control by APP in smartphone
* Supporting local and remote control

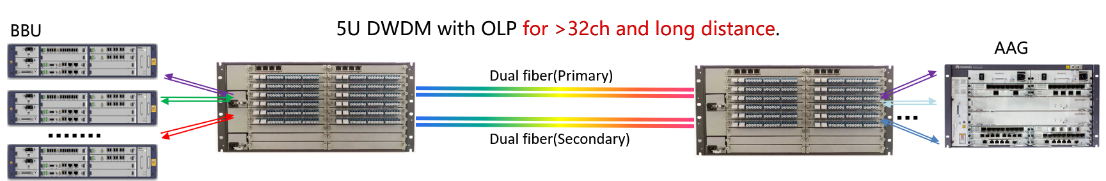

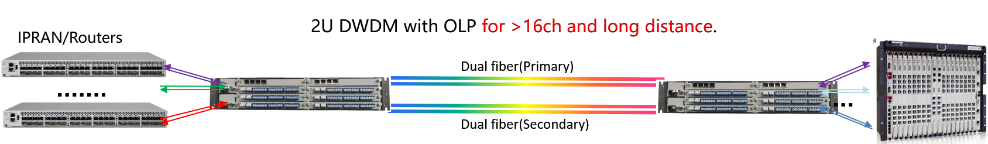

Applications
1. JDP16 Half passive DWDM with OLP for DRAN
2. OLP-A and OLP-B for Metro and backbone network.
Specifications
System Parameter
Unit
Technical Index
OLP-A(1+1)
OLP-B(1:1)
Wavelength Range
nm
1260~1360 & 1460~1640
Insertion Loss
T1/T2 to Tx
dB
<4.0
<1.5
Rx to R1/R2
dB
<1.3
<1.5
WDL
dB
<0.25
PDL
dB
<0.1
Crosstalk
dB
>55
Return Loss
dB
>45
Switching Time
ms
<25(typical 10)
<50(typical 20)
Life of Optical Switch
Time
1,000,000
Network management mode
CLI,Netriver,WEB
Optical Power Monitor Range
dBm
Tx: -30~+25 Rx: -40~+10
Accuracy of Optical Power Measurement
dB
±0.5
Optical Power Resolution
dB
0.1
Optical Interface
LC/PC LC/UPC
Power Consumption
W
< 5
Working temperature
°C
0～+50
Storage temperature
°C
-40～+75
Order information
Part Number
Ver
Product Description
JWM1900-OLP-A
A
1+1 Optical Line Protection Card, LC.
JWM1900-OLP-B
A
1:1 Optical Line Protection Card, LC.
