| Categories | Portable EV Charger |
|---|---|
| Brand Name: | ANS |
| Model Number: | EVX03B |
| Certification: | CE,RoHS |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 100000PCS/month |
| Delivery Time: | 20-30days |
| Packaging Details: | 15.7*15*3.15(in) |
| Product name: | Adjustable Current EV Charging Cable |
| Input/Output voltage: | AC 110V/230V |
| Key Feature: | IP67 |
| Feature: | Adjustable Current |
| Power: | 3.7kw |
| Company Info. |
| Chengdu Honors Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
This adjustable current EV charging cable offers flexible charging control for various power environments. Based on the EVX03B architecture, it allows users to select charging current between 6A and 16A through touch-button operation before starting the charging process.

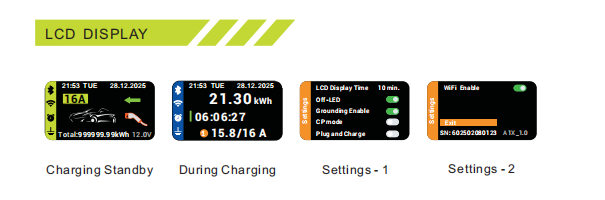

The LCD screen clearly displays selected current, voltage, charging power, energy consumption, and charging time. This flexibility makes it suitable for households with limited circuit capacity.
The integrated IC-CPD module provides protection against over-voltage, under-voltage, overload, short circuit, leakage, and over-temperature conditions, ensuring safe charging performance.
6A–16A adjustable current
Touch-button configuration
LCD real-time monitoring
Multiple safety protections
IP67-rated enclosure
Flexible residential charging, circuit-limited homes, mobile EV
charging.
Charger Drawing
Charging time, Consumption(kWh)
Charging voltage /current/ power, Total electricity(kWh),Temperature
Current adjustable from 6A to 16Ain steps of 1A
Delay charging setting
The screen and LED can automatically turn off according to the set
time
Optional
Appointment forcharging (based on data and time on the APP)
APP remote control (Bluetooth and WlFl)
Chargingmode (APP/Plug and Play)
View charging records on the APP
| Category | Item | Specification |
|---|---|---|
| Electrical Parameters | Input / Output Voltage | AC 110V / 230V |
| Input Frequency | 50 / 60 Hz | |
| Max. Output Power | 1-Phase up to 3.68 kW (230V, 16A) | |
| Max. Output Current | 16A for 1-Phase | |
| Standard | EN IEC 62752:2024 | |
| Certificate | CE, RoHS | |
| Protection | Over Voltage Protection | Yes |
| Under Voltage Protection | Yes | |
| Over Load Protection | Yes | |
| Short Circuit Protection | Yes | |
| Leakage Protection | Yes | |
| Over-Temp Protection | Yes | |
| Function & Accessory | LED Indicators | Yes |
| LCD Screen | 1.47-inch | |
| RCD | Type A (Type B optional) | |
| Current Adjustment | Yes | |
| WiFi / Bluetooth | Optional | |
| Relay Adhesion Detection | Yes | |
| RFID Manageable | No | |
| Working Environment | Protection Degree | IP67 |
| Operation Temperature | -30℃ ~ +55℃ | |
| Relative Humidity | ≤95% RH | |
| Operating Elevation Limit | ≤2000 m | |
| Cooling | Natural Air Cooling | |
| Standby Power Consumption | < 1 W | |
| Mechanical Parameters | Charging Cable | 5 m (Standard configuration) |
| Control Box | H × W × D = 195 × 91 × 49 mm | |
| Weight | ≤ 3.0 kg | |
| Colour | Black | |
| Material | PC (Flame retardant, UV resistant) |
How to install
Packaging

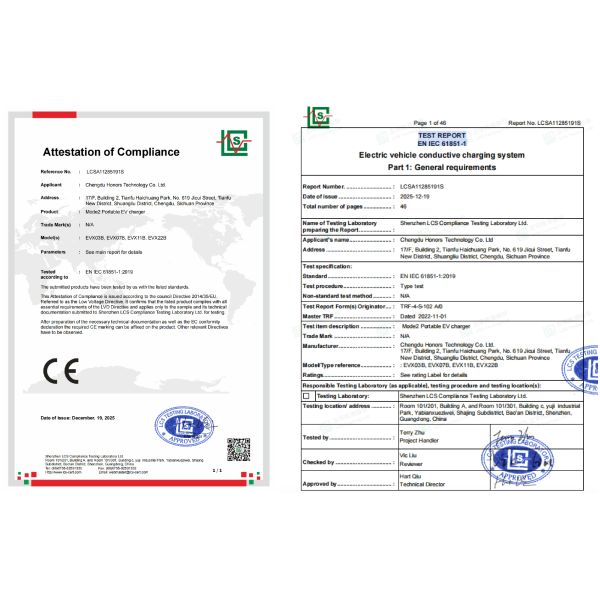

Certification
Exhibition
Visits from Various Countries (looking forward to your arrival)
|
