Advanced FPV & UAV Detector with Ultra-Wideband Coverage
100MHz–8GHz Ultra-Wideband UAV & FPV Detection Device
Advanced portable drone detection system with real-time video
capture and precise direction finding capabilities for
comprehensive airspace security.
Product Overview

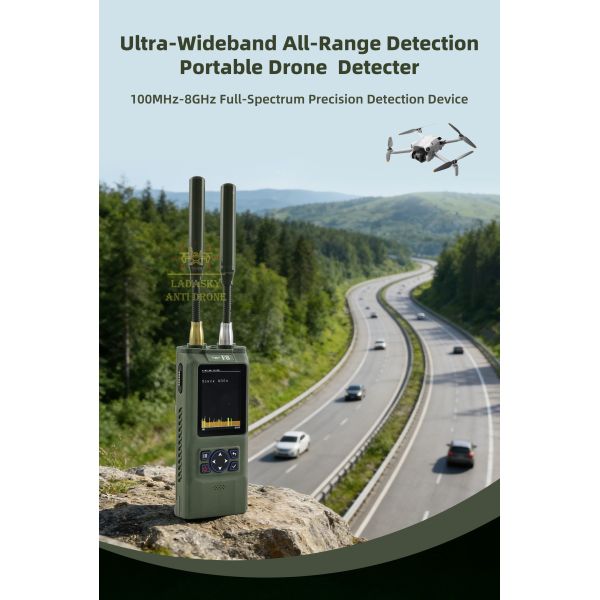

The LDSKW08 ultra-wideband portable drone detection device employs
superheterodyne architecture to detect OFDM high-definition image
transmission signals from mainstream DJI and Autel drones across
the 100MHz-8GHz range, along with analog image transmission signals
from various DIY racing drones. Featuring dual antennas and
multi-channel simultaneous scanning, this device delivers fast
detection speed, high sensitivity, long detection range, low false
alarm rates, strong scalability, and user-friendly operation.
Key Features
- Full-Spectrum Detection Coverage: Comprehensive 100MHz to 8GHz frequency coverage with
ultra-wideband full-spectrum monitoring and real-time analog video
transmission signal detection with ultra-low false alarm rates.
- Mainstream Drone Compatibility: Real-time signal detection and data updates for leading drone
brands including DJI and Autel, ensuring accurate monitoring data.
- Precise Direction Finding: Supports directional antenna replacement with signal strength
monitoring for rapid drone location pinpointing.
- Real-Time Video Capture: Captures simulated drone video within 100MHz-8GHz range, enabling
first-person FPV camera viewing with dual display options: direct
device viewing or large-screen export via magnetic interface.
- Interference Linkage Function: Integrates with backpack-style countermeasure equipment via
magnetic interface for long-range "detection-countermeasure"
operational capabilities.
- Wide Temperature Adaptability: Reliable operation from -20℃ to +60℃, ensuring stable performance
in extreme weather conditions.
- Waterproof Protection: IP54 rating provides effective protection against water splashes
and dust for complex outdoor environments.
- Fast Charging Support: 35W high-power fast charging achieves full charge in one hour,
significantly reducing downtime.
- Extended Battery Life: 2900mA high-performance battery delivers up to 7 hours of
continuous operation for extended outdoor missions.
- Bluetooth Data Transmission: Real-time monitoring data transmission to terminal devices for
convenient remote viewing and analysis.
Technical Specifications
| Parameter | Specification | Notes |
|---|
| Receiver Frequency Band | 100MHz-8000MHz | |
| Video Capture | 100MHz-8000MHz | Analog Image Transmission |
| Recognition Type | OFDM High-Definition Image Transmission Signal, FM Analog Image
Transmission | For Racing Drones |
| Detection Distance | 1km | Depending on frequency band and transmission power |
| Detection Alarm Method | Video, Audio-Visual | |
| Log Recording | Supports Memory Card Recording | |
| Upgrade and Data Export Interface | Dedicated Magnetic Cable | |
| Power Supply | Removable Lithium Battery (Type-C Rechargeable) | |
| Battery Life | ≥7 hours (single battery) | |
| Structural Dimensions | ≤164mm*44mm*68mm | Main unit without antenna |
| Operating Weight | ≤580g (including single battery) | |
| Startup Method | Power Button Operation (Press and hold for 3 seconds) | |
| Control Method | Button operation, supports volume adjustment, screen backlight
activation, and drone detection information viewing | |
| Environmental Adaptability | Operating Temperature: -20℃~ +60℃; Storage Temperature: -40℃~ +85℃;
Protection Rating: IP54 | |
Frequently Asked Questions
What is the detection frequency range of the device?
100MHz-8000MHz, covering the frequency bands of mainstream UAV OFDM
high-definition image transmission signals and racing drone analog
image transmission signals.
What video viewing methods does the device support?
It supports two video display methods: direct viewing through the
device itself, or exporting and displaying real-time images by
connecting a large-screen device via the magnetic interface.
What is the battery life of the device?
Equipped with a 2900mA removable lithium battery, the maximum usage
time can reach 7 hours. It supports 35W high-power fast charging
and can be fully charged in one hour.
What is the protection level and operating temperature range of the
device?
The protection level reaches IP54 standard, and the operating
temperature range is -20℃ to +60℃, which can adapt to various
complex environments.
Does the device support data export and firmware upgrade?
Yes, through the dedicated magnetic cable interface, log export and
firmware upgrade can be realized.
What is the weight and size of the device?
The operating weight is ≤580g (including a single battery), and the
structural size of the host without antenna is ≤164mm*44mm*68mm,
featuring strong portability.
