1-5L Agrochemical Pesticide Automatic High Speed Rotary Filling
Machine LineThis line is suitable for filling pesticide products with
specifications of 1-5L
Production capacity: 4000BPH can be customized according to
customer's needs
Main features:1.This filling line is suitable for filling 1-5L pesticide product,2.One-Key change over, reduce labor intensity and reduce labor
costs,3.Whole line output is about 4000 bottles/hour, may customized
according to customer's requirements,4.Filling accuracy:±7g (5L) , accurate precision, reduce
unnecessary waste,5. Dynamic online weighing technology, not affected by various
characteristics of materials;6.Whole line adopts high quality stainless steel material,
good-looking appearance.| Main parameters: | |
| Power supply | AC380V, 50/60HZ |
| Single line power | approximately 62KW |
| Gas source pressure | (0.6-0.7) MPa, dry, clean, and stable gas source |
| Single line gas consumption | 1.2m ³/ minute |
Applicable bottle type:
Length 80-240mm,Width 80-180mm,Height 200-320mm

Automatic bucket feeding machine
Applicable bottle type: Length 80-240mm
Width 80-180mm
Height 200-320mm
Capacity: 5L ≤ 2400 barrels/hour

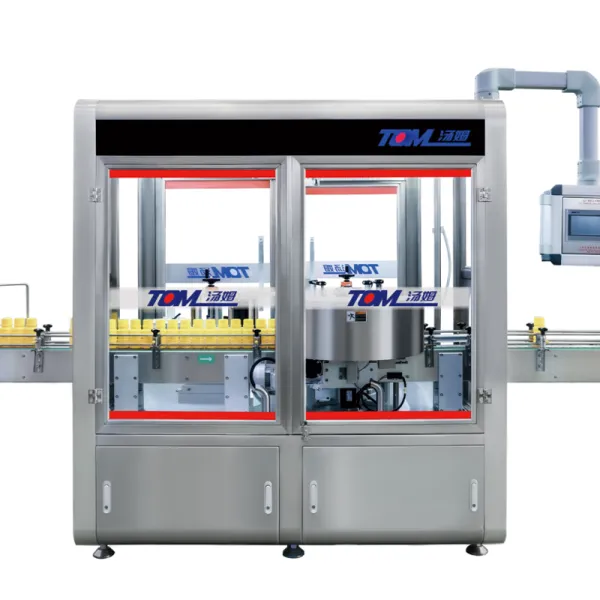

GXXC-20-6 Intelligent Rotary Weighing Filling and Capping
Integrated Machine
Applicable bottle types: length 80-240mm, width 80-180mm, height
200-320mm
Capacity: 5L ≤ 4000 barrels/hour
Filling accuracy: 5L ± 7g
TBJ-920A Intelligent Double sided Adhesive Labeling Machine
Applicable bottle type: length 80-240mm, width 80-180mm
Height 200-320mm
Applicable labels: Height 20-160mm,
20-150m in length
Capacity: 5L ≤ 4000 barrels/hour
Labeling accuracy: ±1mm
Intelligent robot case packer
Applicable bottle type: diameter 40-95mm, height 80-260mm
Carton specifications: length 300-500mm, width 200-400mm, height
100-300mm
Capacity: 6-12 boxes/minute
Gripping type can be customized according to customer's package

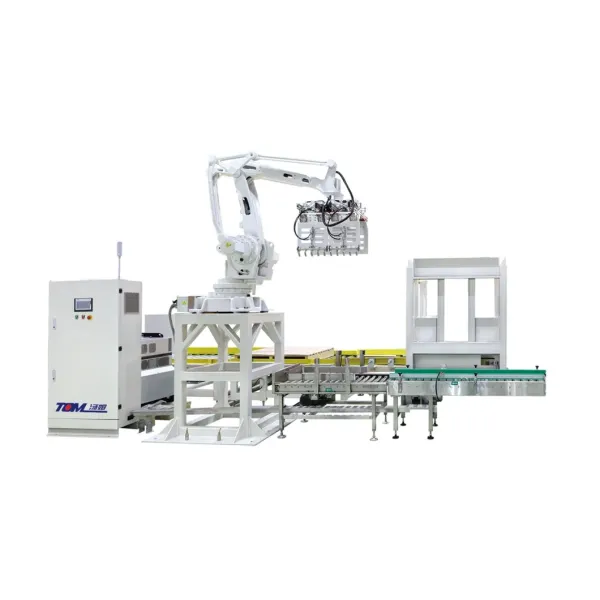

Robot palletizer
Maximum payload: 20Kg
Capacity: 4-8 boxes/min Working radius: 1600mm Vertical distance:
2100mm

Jiangsu Tom Group is an enterprise specializing in the production of intelligent packaging machines. The factory covers an area of 150 acres and have more 700 employees.
Jiangsu Tom Group has six companies: Jiangsu Tom Intelligent Equipment Co., Ltd., Jiangsu Thomson
Intelligent Equipment Co., Ltd., Jiangsu Tom Engineering Design
Co., Ltd., Changzhou Tom Software Development Co., Ltd., Tom
Intelligent Equipment (Shandong) Co., Ltd., and Jiangsu Tom
Intelligent Logistics Co., Ltd.
Jiangsu Tom Group is a full-service provider specializing in the research, design, and
production of intelligent filling equipment from 1998. We are committed to creating Industry 4.0 intelligent factories for our customers and providing them with generation after
generation of advanced intelligent filling lines; Advanced
technology and forward thinking overall solution, as well as EPC general contracting engineering and warehousing logistics software engineering, to create a smart
factory.

Tom Product Categories
· Pesticide and Fertilizer packaging machines
· Shampoo and Detergent packaging machines
· Edible Oil, Sauce & Condiment packaging machines
· Lubricant packaging machine
· Coating and Paint packaging machines
· Chemical packaging machines
· Pesticide Formulations Engineering (EPC/EPCM )
As of now, Tom has served more than 4000 domestic customers and over 600 foreign customers. Its excellent performance and comprehensive after-sales service
system have received unanimous praise from a large number of users.
CNPC, Sinopec, CNOOC, Luxi Chemical, China Resources Group, Shanxi
Coking Coal Group, CNOOC Grain and Oil, Wanhua Chemical, Tianci,
Wengfu, Roche, Jingbo, Kingenta, Stanley, Shanghai Dalian, Jiangsu Longpan,
Jiangsu Gaoke, Idemitsu, Castro, Syngenta, Bayer, BASF, Red Sun, Wynca Chemical, Rainbow Chemical, Yinghui, Noposin, Lier, Meibang, Jiangshan
Chemical, Libai, Blue Moon, Unilever, Zhuangchen, Qiqiang, Cnnice, Longrich, Reckitt, Liangmianzhen, Likang Medical, Swiss Sika, Oriental Yuhong, 3 trees, Hempel, Jordan Coatings. Nippon Paint, PPG, Asia-paint, Keshun, Nestle, Lee Kum Kee, Yaomazi, Yihai Kerry, Longda, Luhua and other famous
domestic and foreign enterprises have become strategic partners of
Tom.

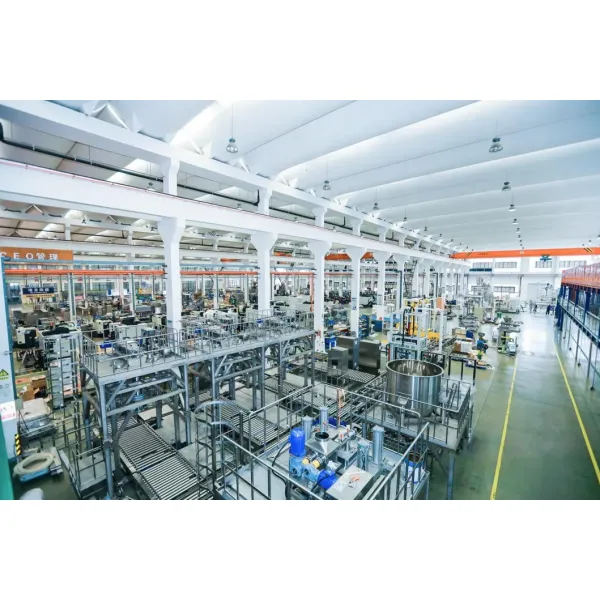

Tom Factory Tour
