35mm cut-out DALI-2 PIR motion & daylight sensor pir movement
detector
1. Features
• Utilizes PIR infrared pyroelectric sensing technology
• Flat lens design for an aesthetically pleasing appearance
• Accurately detects human movement and outputs a DALI 2.0 signal
• Powered by the DALI bus and connects to the DALI communication bus
• Supports ambient light detection
• Supports remote control setting of sensing range and delay time
• Maximum motion detection range: 8-10 meters in diameter
• Recommended for motion detection in corridors and passageways
• Supports concealed, recessed installation
• Ultra-small size; blends seamlessly with the ceiling after recessed installation
2. Parameters
| Input/Output | Input voltage | DALI bus power |
| Related Voltage | 9.5-22.5V DC | |
| Working Current | 7mA Max. (During the DALI master device's search process, the instantaneous current will reach 20mA) | |
| Working Power | ≤0.5W | |
| Output signal | DALI2.0 | |
| Sensor Parameter | Detection Method | PIR + Daylight |
| Detection Sensitivity | MH18 remote setting:100% 75% 50% 25% | |
| Hold Time | MH18 remote setting:2s/30s/1min/3min/5min/10min/30min DALI master: 2s(fixed)+1s -30min(DALI master setting) | |
| DALI Protocol Compliant | 101, 103, 303, 304 | |
| Daylight Sensor | 0-1200Lux | |
| Radius detection range(based on 100% sensitivity and 3m mounting) | 4-5m (Tangent detecting range, @25℃) | |
| Remote control | Available | |
| Mounting height | 2.5-4.0m typical value:3m | |
| Application Environment | Drill hole | Φ35mm |
| Working Temperature | -25℃...+50℃ (The lower the temperature, the longer the sensing distance may be; the higher the temperature, the shorter the sensing distance may be) | |
| Storage Temperature | -40℃~+80℃ | |
| Wiring Preparation | Diameter:0.2-2.5mm², Stripping length: 7-8mm | |
| Certificate Standard | Certificate | Compliant with CE |
Environmental Requirement | Compliant with RoHS | |
| IP Rating | IP20 | |
| Warranty | 3 years (Limit to the product defective only) | |
| Note: "N/A" means not available. | ||
3. Dimension
4. Wiring Diagram

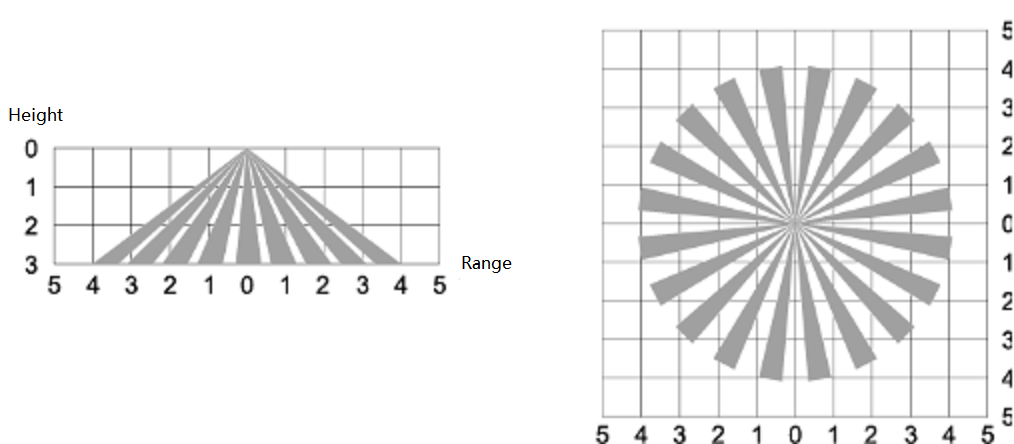

5. Detection of radiation
6. Detection Signal
The product detects human moving signals, and below is a description of the moving signals:
Moving signal: detect the human significant moving (walking) in the detection area.
7. Remote Control MH18
Remote Control MH10
8. Attention
1. The sensor should be installed by a professional electrician. Please disconnect the power before installation and wiring.
2. The optimal installation height for this sensor is 3m. It should not be installed outdoors to avoid false triggers due to ambient temperature changes. It should also not be installed in locations sensitive to temperature or airflow changes to prevent false triggers or sensor failure due to excessive temperature.
3. There should be no screens, furniture, large potted plants, or other obstructions within the detection range of this sensor.
4. There should be no reflective objects directly in front of this sensor, as reflected light can cause false triggers.
5. The sensor needs to be kept away from large electromagnetic radiation devices, such as Wi-Fi routers, cameras, and microwave ovens. A distance of at least 2 meters is recommended to prevent electromagnetic interference.
6. The sensing distance of this sensor may fluctuate depending on the installation height and ambient temperature, deviating from the typical value.
9. Disclaimer
Due to the complexity of product technology and differences in application environment, it is difficult to guarantee a completely accurate or complete description, so this specification is only for user reference.
We will reserve the right to make changes to the product specifications without notifying the user, and do not make any commitments and guarantees in the legal sense.At the same time, our company encourages users to supplement or modify the contents of our specifications after using our products.
For more information, please get in touch with our sales rep. for more details.
|
