Global Projects Light Steel Structure Camp Q235B Q345B Steel Light Frame Construction

Categories Light Steel Structure
Place of Origin: Shandong
Brand Name: Lida
Certification: ISO / CE
MOQ: 500 sq
Payment Terms: L/C, T/T
Feature: Soundproof/ Rust Proof/Earthquake Resistant/Waterproof/Heat Insulated
Material: Q195/Q235/Q345
Size: L5800mm × W5980mm × H2580mm
Weight: Approximately 4000kg
Flooring: Laminate board (18mm)
Windows: Aluminum windows
Door: Steel door
Wall Material: 75mm sandwich panel
Product: Light Steel Structure
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Global Projects Light Steel Structure Camp Q235B Q345B Steel Light Frame Construction

Camp House Steel Buildings: Rapid Deployment Solutions for Global Projects
Light steel structure buildings, also known as light gauge steel buildings or LGS buildings, represent modern construction solutions that have gained significant popularity. These structures utilize cold-formed steel sections manufactured offsite and assembled on location, offering exceptional strength, durability, and cost-effectiveness for diverse applications.
Structural Strength and Safety
The steel sections in these buildings provide superior strength compared to traditional materials like wood or concrete. They offer enhanced resistance to fire, termites, and other pests, ensuring safer construction. The recyclable nature of steel also makes these buildings an environmentally responsible choice.
Exceptional Durability
Engineered to withstand extreme weather conditions including hurricanes, earthquakes, and heavy snow loads, these buildings require minimal maintenance, providing long-term cost savings for building owners.

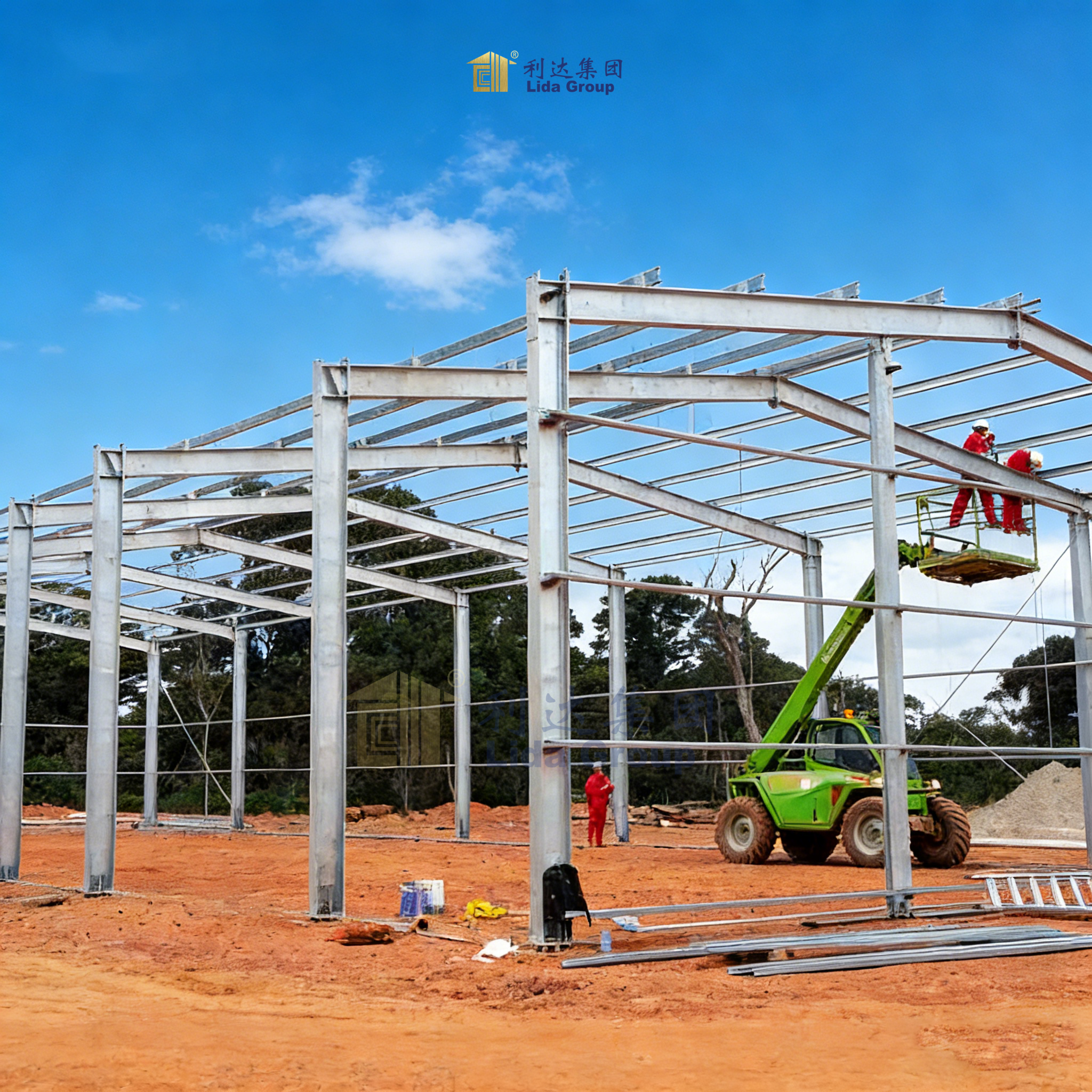

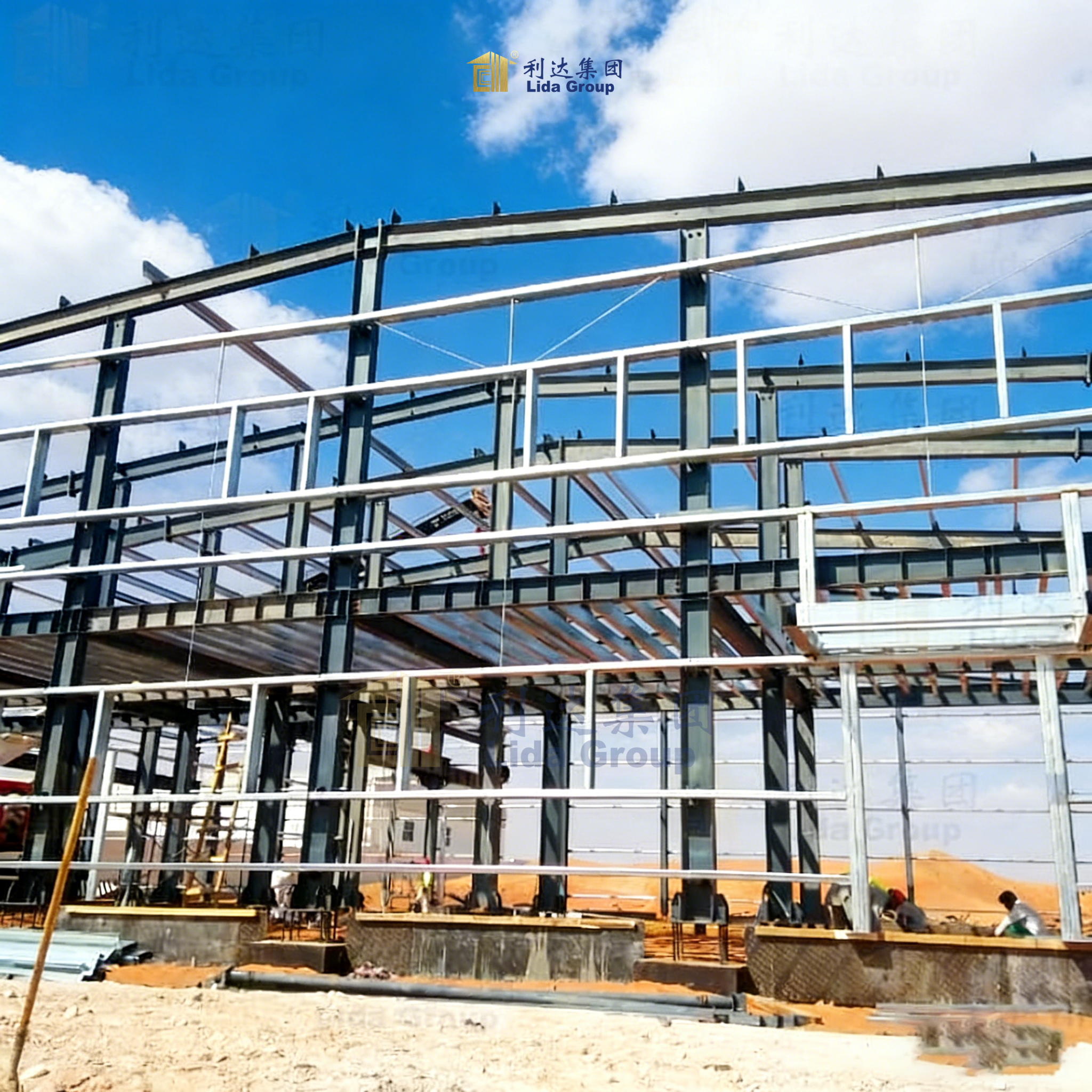

Modern light steel structure building exterior showing clean architectural lines Interior view of steel building construction showing structural framework
Cost-Effective Construction
The highly efficient manufacturing process enables rapid production at lower costs than traditional building materials. The streamlined assembly process further reduces construction time and expenses, delivering significant savings.
Versatile Applications
Light steel structure buildings serve diverse purposes across residential, commercial, and industrial sectors. They accommodate projects ranging from single-family homes to large office complexes and warehouses. Their modular design facilitates easy expansion and customization.
Technical Specifications
  • Main frame (columns and beams) constructed from welded H-style steel
  • Column-to-foundation connection via pre-embedded anchor bolts
  • Beam-to-column and beam-to-beam connections using high-intensity bolts
  • Envelope construction utilizing cold-formed C-style purlins
  • Walls and roofs composed of color steel boards or color steel sandwich panels, secured to purlins with self-tapping nails
  • Flexible door and window placement with options for normal, sliding, or roll-up types using materials including PVC, metal, alloy aluminum, and sandwich panels
