| Categories | Steel Wall Formwork |
|---|---|
| Brand Name: | Shunyao Supply Chain |
| Model Number: | Steel formwork |
| Certification: | IS0 |
| Place of Origin: | Chengdu , China |
| Payment Terms: | T/T in advance |
| Delivery Time: | 5-15 days |
| MOQ: | 100 PCS |
| Price: | $40-150 |
| Supply Ability: | Excellent |
| Packaging Details: | Bundles |
| Panelthickness: | 1.5mm to 3.0mm |
| Material: | High-quality steel |
| Customization: | Available in custom sizes and shapes |
| Safetyfeatures: | Includes safety locks and secure fittings |
| Maximumconcretepressure: | Up to 80 kN/m² |
| Easeofassembly: | Modular design for quick assembly and disassembly |
| Compatibility: | Compatible with standard formwork accessories |
| Durability: | High resistance to wear and corrosion |
| Productname: | Steel Wall Formwork |
| Panelsize: | Varies, commonly 1200mm x 2400mm |
| Application: | Used for casting concrete walls in construction |
| Connectiontype: | Bolt and clamp system |
| Surfacetreatment: | Anti-rust coating or galvanization |
| Reusability: | Over 100 times |
| Weightperpanel: | Approximately 25-40 kg |
| Company Info. |
| Sichuan Shunyao Supply Chain Management Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

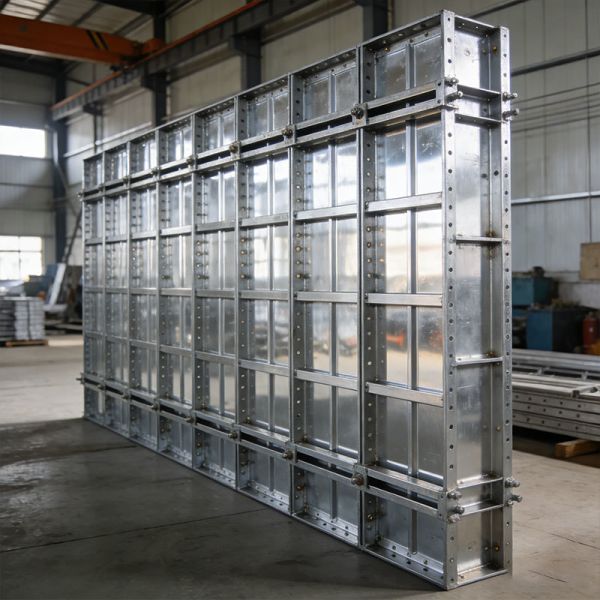

Steel wall formwork is a modular forming system specifically
designed for modern concrete buildings, made from Q355B
high-strength structural steel plates combined with steel frame
reinforcement. Standard formwork sizes are 1200×2400mm /
1500×3000mm, with a panel flatness deviation of ≤1.5mm/2m and
lateral load capacity up to 90kN/㎡, capable of meeting the pouring
requirements for high-grade C60 concrete.
Technical Advantages
Intelligent Connection System: Patented wedge locks enable quick
single-point fastening in 5 seconds, achieving a daily construction
efficiency of 180㎡ per team.
Precision Control Technology: Laser-calibrated frames and
CNC-punched positioning ensure wall vertical deviation ≤3mm per
floor.
Excellent Durability: Hot-dip galvanizing and fluorocarbon coating
provide dual protection, allowing more than 600 uses under normal
conditions.
Safety Control System: Integrated pressure sensors with warning
devices continuously monitor the pouring status.
Innovative Features
Adaptive Adjustment Mechanism: Supports stepless height adjustment
from 2.6 to 4.5 meters, equipped with an automatic leveling system.
Sealing Technology Breakthrough: EPDM rubber seals combined with
labyrinth joint design achieve zero slurry leakage.
Intelligent Temperature Control Module: Built-in heating units
ensure concrete quality during winter construction.
Digital Management Interface: Each panel is equipped with an RFID
chip, supporting full-process traceability within BIM systems.
Application Scenarios
Ultra-high-rise core tube shear walls (suitable for climbing or
sliding formwork systems)
Prefabricated components production for modular buildings
Standard section construction for underground utility tunnels
Dam panels in water conservancy and hydropower projects
Special wall structures in industrial buildings
| Material | Steel, stainless steel | Application | Concrete construction | |
| Feature | Easy to assemble, high strength, reusablet | Warranty | 2 Years | |
| Design Style | modern | After-sale Service | Online Technical Support, Onsite Installation | |
| Project Solution Capability | 3D model design, graphic design | Place of Origin | Chengdu, China | |
| Brand Name | Shunyao Supply Chain Steel Frame | Attachment | U-bolt, bolts, and nuts | |
| Color | Customer Requirements | Size | Customer s | |
| Variety | Steel formwork systeml | Type | Steel formwork for concrete construction | |
|
