20kW Vertical Axis Wind Turbine Generator with three phases output on-grid system for house use

Categories	20KW VAWT C
Brand Name:	BF
Model Number:	BF-C-20K
Certification:	CE
Place of Origin:	China
MOQ:	1
Price:	18500$
Payment Terms:	T/T,L/C
Supply Ability:	100UNITS PER MONTH
Delivery Time:	15DAYS
Packaging Details:	PLYWOOD CASE
Material:	Q235&FRP
Working tempreture:	-45-60℃
Rotor diameter (m):	6
Height of blades:	6.6
Rated rotor speed (m/s):	100r/min
Speed regulation method:	Electromagnetic control
Top weight (kg):	1800kg
Start up wind speed(m):	3.8m/s
Survival wind speed(m):	50
Rated wind speed(m/s):	13
Tower type:	133mm steel tube
Height of tower:	12M
Material of blades and numbers:	Glass fiber reinforce plastic/5
Output voltage:	220V/380V
Work Speed:	3.8-25m/s
Wind energy utilized coefficient:	30%-40%

Contact Now

Add to Cart

Company Info.

Qingdao Bofeng Wind Power Generator Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

20kW Vertical Axis Wind Turbine Generator with three phases output on-grid system for house use

BF-C Series 20kW Vertical Axis Wind Turbine System

Our BF-C-series wind power generating system features advanced vertical axis technology with magnetic suspension structure, delivering exceptional wind energy efficiency and reliable performance for residential and small business applications.

Key Features

High wind energy coefficient with low startup wind speed (3.8m/s)
Superior anti-wind capability and stable operation
Noise-free performance with maintenance-free design
Advanced anti-corrosion treatment and sealing for long service life
Captures wind from any direction without yaw mechanism
Ideal for urban and suburban environments with turbulent wind flows

Technical Specifications

Power	20KW
Rotor diameter	6m
Height of blade	6.6m
Material of blades and numbers	Glass fiber reinforce plastic/5
Rated rotor speed	150r/min
Output voltage	220V/380V
Start up wind speed	3.8m/s
Rated wind speed	13m/s
Work speed	3.8-25m/s
Security wind speed	50m/s
Height of tower	12m
Top weight except tower	1800kg
Tower type	133mm steel tube
Wind energy utilized coefficient	30%-40%
Suggested batteries information	64pcs 12V 200AH
Speed regulation method	electromagnetic control
Range of working temperature	-45℃-60℃

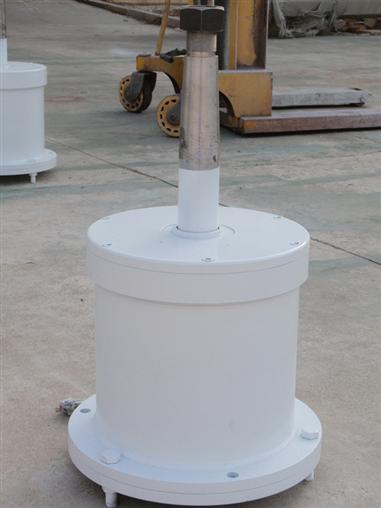

Generator Body

Features high-grade Neodymium Iron Boron permanent magnets, each tested for magnetic flux by authorized institutions. Engineered for low starting torque while maintaining high generating efficiency through optimized internal structure.

Generator body internal components and structure

Blade Specifications

Streamline shape with 3 reinforced fiber plastic blades. Manufactured using unidirectional fiber fabric and epoxy resin molds with inner foam core construction. Designed for low noise operation, excellent balance, and superior fatigue resistance.

Our Fiber Reinforced Plastic (FRP) blades are precision-engineered for Vertical Axis Wind Turbines (VAWT), offering an optimal balance of strength, lightweight design, and long-term weather resistance. Manufactured using advanced composite molding technology, these blades are tailored to maximize energy capture from turbulent and multi-directional wind flows, making them the ideal choice for both urban and remote installations.

Wind turbine blade design and construction details

Wheel Hub & Connectors

Precision-made steel wheel hub connects blades to generator. Blades connectors constructed from Q235 plate with anti-corrosion surface treatment for durable performance.

Wheel hub connection details and mounting

Tower Options

Available in Q235 guy wire tower with anti-corrosion painting or free stand tower with hot dip galvanized plastic spraying for various installation requirements.

Off-grid Controller

Wind-solar hybrid controller which rectifies AC current generated by wind generator into DC current and charges the battery bank. Unload function activates when strong wind produces excess current. The controller brakes when batteries reach full capacity (125% voltage) and resumes charging when voltage reduces to 108%. Includes manual brake button for emergency stops.

Product Model	WWS200-220-N00
Rated Battery Voltage	220V
Rated Wind Turbine Input Power	20kW
Maximum Wind Turbine Input Power	30kW
Wind Turbine Brake Current	91A
Rated Solar Input Power	6kW
Floating Charging Voltage	266V
Display Mode	LCD
Quiescent Current	≤20mA
Ambient Temperature & Humidity	-20～+55℃/35～85%RH(Without Condensation)
Temperature Compensation Function (Optional)	-4mV/℃/2V ,-35℃--+80℃ ,Precision:±1℃
Dimension(L×W×H)	Controller Box: 440×300×170mm ; Dumpload Box: 680×420×675mm
Net Weight	Controller Box:9kg ; Dumpload Box: 30kg

In order to serve our customers better. Our company can adjust parameters configuration according to customer's requirement.

Off-grid Inverter

Pure sine wave output capable of driving any household appliances. Features integrated circuit design with minimal wiring connections. Utilizes microprocessor technology for enhanced system integration. Includes comprehensive protection systems with high efficiency transformer design and LCD operation status display.

20kW Off-grid Inverter Technical Data

Product Model	WI200-220-3N01
Rated Output Capacity	20kVA
Rated Battery Voltage	220VDC
Over Voltage Shutoff	312VDC
Over Voltage Recovery	302VDC
Under Voltage Shutoff	198VDC
Under Voltage Recovery	220VDC
No-load Loss	≤0.9A
Output Wave	Pure sine Wave
Display Mode	LCD
Cooling	Fan
Rated Output Voltage	220VAC
Wave Distortion	≤4％
Output Frequency	50±0.5Hz
Dynamic Response	5%
Power Factor	≥0.8
Over-load Capacity	120% 1min,150% 10s
Invert Efficiency	90% Max
Isolating Mode	Toroidal Transformer
Noise (1m)	≤40dB
Insulating Strength	1500VAC,1min
Protection Functions	Input over voltage protection, Battery under voltage protection, Battery anti-reverse connection protection, Output overload protection, Output short circuit protection, Over temperature protection.
Ambient Temperature	-20～+55℃
Working Altitude	≤4000m
Ambient Humidity	0~90%,Without Condensation
Dimensions (Lx W x H)	500 x 500 x 1100mm
Net Weight	130kg

In order to serve our customers better, our company can adjust parameter configuration according to customer's requirement.

Performance Curves

Additional Technical Specifications

Generator Type: Permanent magnetic synchronous style
Surface Treatment: Multi-layer painting including base coat (2 layers), anti-corrosion paint, and surface finish
Complete System Includes: Base flange, guy wires, wire tighteners, ground anchors, nuts, screws, bolts, and cables
Off-Grid System Requirements: 64 x 12V 100AH batteries (not included in base price)
Certifications: CE product certificate and ISO factory report
