ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom

ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom

ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom
ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom
Categories Folder Gluer Machine
Feeding Way: automatic feeding
Way of Folding: side gluing , pre-folding , crash lock bottom
Over Dimension: 8*1*1.3m , 8*1.1*1.3m , 9.5*1.2*1.3m
Delivery Time: 15 work days
Weight: 1600kg 1700kg 1900 kg
Certification: CE
Paper Material: 210 ~ 600 g/m² paperboard
Brand Name: PRINTYOUNG
Model: ZH-600G 700G 800G
Supply Ability: 30 Sets per Month
Price: USD 11500 ~ 14000 Set
Payment Terms: L/C, T/T
Electric Power: 9kw AC 3PH 380V
Max. Liner Speed: 300 m/min continuous adjustment
Model Number: ZH-600G 700G 800G
MOQ: 1 Set
Glue Material: cold glue
Place of Origin: China
Contact Now
Company Info.
Shanghai Printyoung International Industry Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

ZH-600G 700G 800G Automatic Feeding Folder Gluer Box Forming Machine with Crash Lock Bottom

ZH-600G Folder Gluer with Crash Lock Bottom
Features
ZH-600G is our most competitive folder gluer with crash lock bottom which developed by ourselves.It has two National Patents.Its easy operation,reasonable price and wide application make it a new leap forward in the history of folder gluer.It combines a variety of folder gluer functions:straight line box,pre-fold box,crash lock bottom box.Our machine is featured by multi-function,wide application,easy operation and competitive price.Compared to older generation folder gluer,our machines simplify the complicated construction,reduce the difficulty of test run and reduce the cost.Especially for the current packaging and printing industry with tough competition,it can help to shorter delivery time and recover your invest easily.It is ideal equipment in printing industry.
Technical Parameters
Model
ZH-600G
ZH-700GZH-800G
Paper Material
210 ~ 600 g/m² paperboard
Max. Liner Speed
0 ~ 300 m/min continuous adjustment
Feeding Way
automatic feeding
Way of Folding
side gluing , pre-folding , crash lock bottom
Glue Material
cold glue
Electric Power
9kw AC 3PH 380V
Weight
1600 kg
1700 kg1900 kg
Over Dimension
8 * 1 * 1.3 m
8 * 1.1 * 1.3 m9.5 * 1.2 * 1.3 m
ModelBox typeABC(min)D (min)
ZH-600GStraight-line box110 ~ 600 mm60 ~ 500 mm50 mm10 mm
Pre-fold box170 ~ 500 mm60 ~ 500 mm80 mm10 mm
Crash lockbottom box180 ~ 500 mm100 ~ 500 mm80 mm40 mm
ZH-700GStraight-line box110 ~ 700 mm60 ~ 500 mm50 mm10 mm
Pre-fold box170 ~ 600 mm60 ~ 500 mm80 mm10 mm
Crash lockbottom box180 ~ 600 mm100 ~ 500 mm80 mm40 mm
ZH-800GStraight-line box130 ~ 800 mm60 ~ 700 mm60 mm10 mm
Pre-fold box170 ~ 700 mm60 ~ 700 mm80 mm10 mm
Crash lockbottom box180 ~ 700 mm100 ~ 700 mm90 mm50 mm
Configuration

Paper Feeding Section

Equipped with 2 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly,easily and continuously automatically.

Lower Gluing Tank

Lower gluing tank is large volume.Easy to remove and clean.

Paste Cylinder

The upper paste cylinder is used to glue the crash lockbottom bottom box.

Folding and Closing

The Second and fourth folding line 180°.Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.

Transmission

Equipped with special additional sponge belt for the press of boxes valley part.Upper section moves back and forward,allowing for different box length.

Synchronous Belt & Synchronous Wheel

The most efficient mechanical power transmission method currently on the market.Reduce noise,reduce wear,and efficient power transmission system.

Aviation Connector

Easy to install and transport.

Independent Electrical Box

The independent structure reduces the interference of the mechanical structure to the electrical system,and it is beautiful and atmospheric.

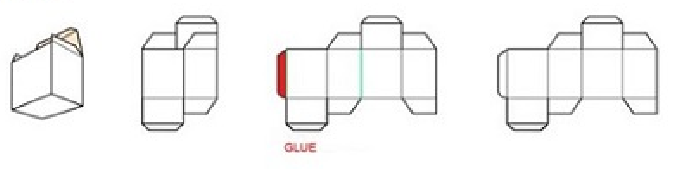

Main Box Samples
Ordinary Box Pre-fold Box Crash Lock Bottom Box Special Box
