Nitride Steel 2D Welding Table Steel Welding Table Welding Fixture

Nitride Steel 2D Welding Table Steel Welding Table Welding Fixture

Nitride Steel 2D Welding Table Steel Welding Table Welding Fixture
Nitride Steel 2D Welding Table Steel Welding Table Welding Fixture
Categories Welding Fixture Table
Brand Name: WUXI LEMAR
Model Number: D28/D16
Certification: CE
Place of Origin: WUXI
MOQ: 1 PCS
Price: 500-1000 USD
Payment Terms: L/C,D/A,D/P,Western Union,T/T
Supply Ability: 500 units/month
Delivery Time: 15-20 work days
Packaging Details: 3000*2000*200mm
Material: High-strength Q355 steel / HT300 cast iron
Surface Treatment: Professional gas nitriding
Surface Hardness: HV450-550
Flatness: ≤0.3mm/1000mm
Standard Series: D16 / D28
Load Capacity: Light load / Heavy load available
Custom Size: Supported
Hole Pitch: 50×50mm (D16), 100×100mm (D28)
Table Thickness: 12/25mm
Contact Now
Company Info.
Wuxi Lemar Machinery Equipments Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Nitride Steel 2D Welding Table Steel Welding Table Welding Fixture

Nitride Steel 2D Welding Table Steel Welding Table Welding Fixture
Nitride Steel 2D Welding Table Steel Welding Table Welding Fixture is a basic flexible fixture for modern welding, with nitriding steel table top, standard grid holes, and modular fixtures as the core. It combines high precision, wear resistance, efficiency, and low cost, and is widely used in industries such as sheet metal, steel structures, automobiles, and construction machinery. It is an ideal solution to replace traditional flat iron plates/specialized fixtures.

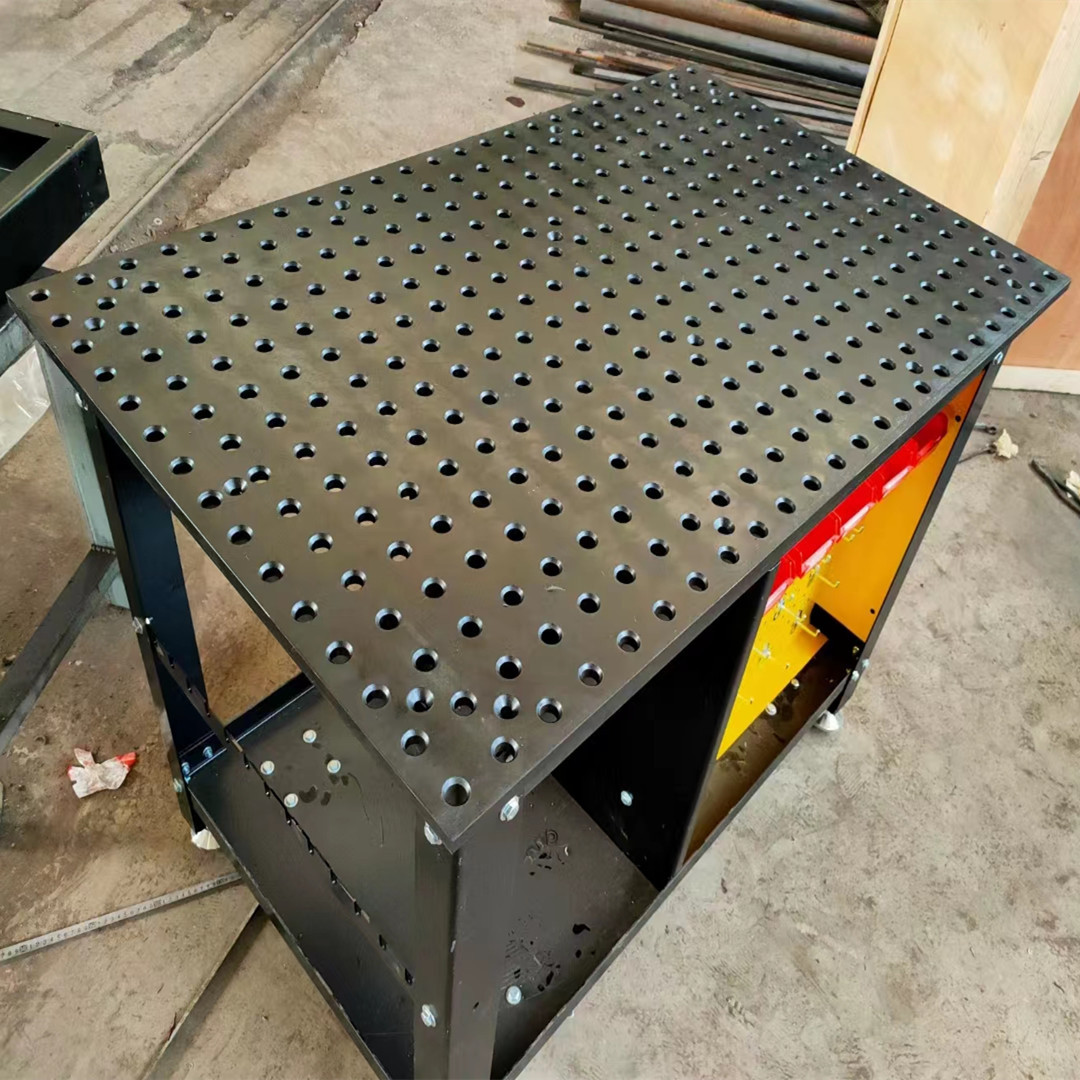

Nitride Steel 2D Welding Table overview Welding table in workshop environment
Product Parameters
Welding table technical specifications Welding table parameter comparison
ParameterD28 2D Welding TableD16 2D Welding Table
Standard hole diameterΦ28 mmΦ16 mm
Hole pitch100×100 mm50×50 mm
Raw materialNitrided Q355 steel / HT300 cast ironNitrided Q355 steel / HT300
Surface hardnessHV450-550HV450-520
Overall flatness≤0.3mm/1000mm≤0.3mm/1000mm
Hole position tolerance±0.05 mm±0.05 mm
Single hole bearing capacity800-1200kg300-600kg
Matched boltM24M12
Main Advantages
  • Welding table surface hardness: HV450+/20-50HRC, wear-resistant and anti-collision
  • Anti welding slag: Welding slag is easy to clean and does not adhere to the tabletop
  • Rust and corrosion resistance: Long term use is not easy to rust, suitable for harsh workshop environments
  • Low deformation: The nitride layer is thin (0.01-0.02mm), with minimal thermal impact and less likely for the tabletop to warp
  • Compared to cast iron, steel nitriding tables have higher strength, better impact resistance, less prone to edge breakage, and better performance in heavy-duty and frequent fixture adjustment scenarios
Workflow Process
  1. Leveling of countertop: Adjust the foot cup to horizontal (accuracy 0.1mm/m)
  2. Fixture layout: According to the shape of the workpiece, use positioning pins and angle irons to set the reference, and quickly clamp with clamps
  3. Welding operation: The workpiece is firmly fixed without displacement, and the welding deformation is controllable
  4. Disassembly and replacement: Release the fixture and remove the workpiece; Within 5 minutes, rearrange the fixture and adapt it to the new workpiece
Company Certification
Company quality certifications
Product Packaging
Welding table packaging and shipping
FAQ
What table sizes do you have in stock?
Common ready sizes: 1000×800, 1200×800, 1500×1000, 2000×1500mm. Custom dimensions are available.
Do you offer OEM & ODM service?
Yes. We can print customer logo, customize surface marking, special hole layout and customized fixture sets.
How to maintain the welding table daily?
Just clear welding slag regularly, keep table surface clean, no need for complex maintenance.
Can you combine different tables into one big working table?
Yes. Multiple standard tables can be spliced freely to meet large-scale welding production needs.
Can the table board bear heavy pressure during welding?
Absolutely. Thickened solid steel plate, stable overall structure, no bending or sinking under normal heavy welding load.
Interested in Nitride Steel 2D Welding Table, Steel Welding Table and Welding Fixtures?
Contact us now to get the most favorable quotation.
