Introduction of Wire Mesh Welding Machine

9. The power transformer must be at least 160KVA to supply machine running and the distance between the power transformer and the machine within 100 m.

10. Material:Suitable for low carbon wire,galvanized wire.

Details of Wire Mesh Welding Machine

1.Longitudinal wire feeding device

The longitudinal wire feeding system is a new design, which can place longitudinal wires quickly and accurately, automatic alarm in case of failure. The longitudinal wire with pre-loading hopper. Which can load 1500kg wires.

2. Longitudinal wire push device

This longitudinal wire push device is specially designed to make the longitudinal wire accurately reach the specified position and ensure that the grid standard has no error.

3. The connection between the welding transformer and electrodes uses copper block instead of soft copper leaf, which has better quality and conductive effect.

4. The electrode and copper base are all made of high chromium copper (CuCrZr), which is a special alloy material with wear resistance and high temperature resistance. Increase the service life of the electrode.

5. Pulling mesh device (By servo motor air cylinder controlled)

The mesh pulling repeatedly is to pull the welded cross wire out of the grid according to the

parameters set by the program, and according to the length of the mesh, it can realize mesh pulling repeatedly, so that the entire mesh is completely pulled out.

6. The push mesh device

This push mesh device is used to push the mesh panel under the bending machine.

7. Automatic bending machine

This bending machine can online bending mesh panel automatic,save labor and provide high efficiency.

8. Pulling mesh device after bending mesh.

The pulling mesh device pull out the 3D fence panel after bending.

9. Automatic mesh stacking fence device

The mesh stacking device can accurately stack the 3d fence mesh neatly, facilitate packaging and reduce labor cost. It can intelligently adjust the height of mesh stacking.

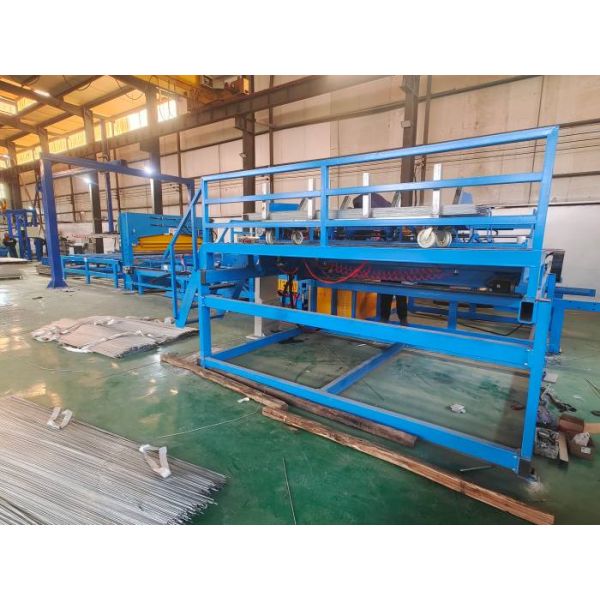

10. Cross wire feed hopper device

The stepper motor drives the disk-type device to drop transverse wires automatically. The store transverse wire device has more capacity can load max 1.5 tons wires.

The cross wire hopper is a feeding device that send straightens and cuts the fixed-length steel bars into the welding electrode position of the main welding machine according to the welding needs. The biggest feature of this hopper is that it is equipped with a cross wire storage silo and an automatic feeding device. The storage capacity is about 1.5 tons, which reduces manual feeding and secondary materials and improves production efficiency.

This hopper is composed of platform ladder, storage bin, and falling hopper, which is installed on the circulating mesh pulling frame.There are ladders on both sides of the hopper platform for easy operation. The storage bin is equipped with a set of magnetic motorized rollers. When rotating, the steel bars are adsorbed on the rollers and sent to the blanking and storage bin. The material storage bin is equipped with a position detection switch to control whether additional material is needed according to the amount of material prepared. The falling hopper uses a disc-shaped sheave to accurately hold the wire, and evenly feed each cross wire into the pusher position one by one according to the welding needs. The power of the wire holding is a 13.5N.m stepper motor.

Technical Parameters of Wire Mesh Welding Machine

Photos of Wire Mesh Welding Machine
