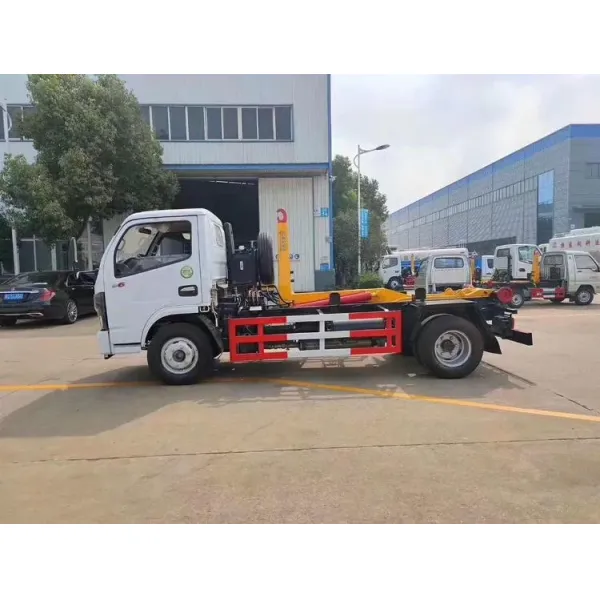

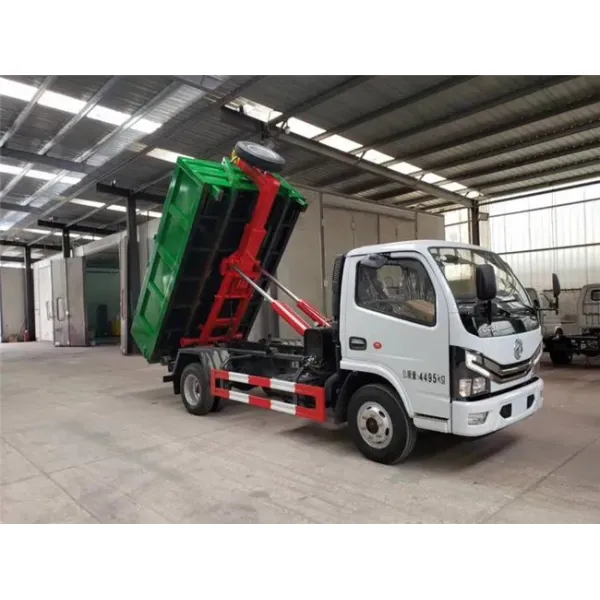

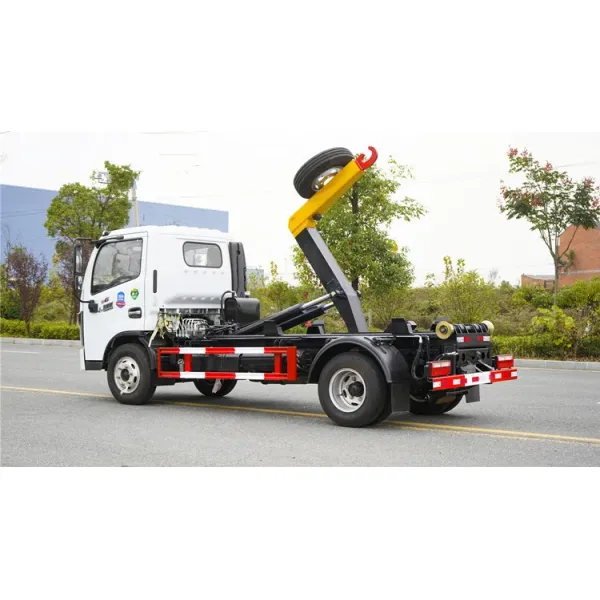

Dongfeng Hook Arm Garbage Truck for Efficient Waste Management

Categories	Garbage truck
Model NO.:	CLW5567TYDF5
Type:	Recycling
Certification:	ISO9001
Volume:	10001-15000L
Emission Standard:	Euro 4
Transmission Type:	Manual
Payload:	20T
Fuel:	Diesel
Drive Wheel:	4×2
Brand:	Dongfeng
Models:	Micro
Condition:	New
Transport Package:	Complete Vehicle
Specification:	7500× 2500× 3060
Trademark:	CLW
Origin:	China
HS Code:	4801000000
Production Capacity:	1000
MOQ:	1
Price:	US $45,000 / Piece
Place of Origin:	CHINA
Packaging Details:	Nuked
Delivery Time:	15 working days
Payment Terms:	T/T,LC,
Supply Ability:	150 sets/month

Contact Now

Add to Cart

Company Info.

Chengli Special Automobile Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Dongfeng Hook Arm Garbage Truck for Efficient Waste Management

Dongfeng Tianjin hook arm typeDustcart
Product introduction:
Produced by our companyHook arm typeDustcartIt is mainly applicable to the garbage collection and transfer of municipal sanitation, property management, factories and enterprises, street communities, schools, hospitals, rural areas and other places. It can be customized and supporting the hook arm system according to the user's existing garbage bins..Hook-arm garbage trucks are also called compartment removable garbage trucks.,.The hook arm garbage truck adopts a full hydraulic control system, which can be optionally equipped with a fully automatic control system integrated with hand and electricity, which realizes two control modes in the cab and outside the car. It can be used with multiple three-way garbage bins. The garbage bin and the chassis can be completely separated. The hydraulic control system controls the expansion of the hook arm and the locking structure to realize the garbage bin. The lifting and lowering can realize self-dumping and dumping when locking the garbage bin. It has the advantages of reasonable structure, simple operation, stability, high efficiency of use, good sealing performance, convenient dumping, etc. It can realize the joint operation of one car and multiple garbage bins, multi-point drop of garbage bins, circular transportation, and fully improve the transportation capacity of the vehicle. Force, secondary pollution can be effectively avoided in the process of loading, unloading and transportation

Main technical parameters: Product breakdown diagram:

[Technical parameters of the whole vehicle]
Product trademark	Huatong brand	Announcement batch			371
Product name	Car removable garbage truck
Total mass (kg)	7360	Tank volume (m3)
Rated mass (kg)	3850,4130	Dimensions (mm)			4700X2000X2260,2320,2350
Preparation mass (kg)	3380,3100	Cargo compartment size (mm)			XX.
Rated passenger capacity (person)		Total mass of quasi-tow truck (kg)
The number of passengers in the cab (persons)	2	Maximum load of the saddle (kg)
Approach angle/departure angle (°.)	July 27/13	Front suspension/rear suspension (mm)			1055/1167,1055/957,1055/955,1055/945
Shaft load (kg)	2640/4720.	Maximum speed (km/h)			110
Remarks:	Remarks: The car is used for garbage collection and transportation, and the main special device is the hook arm. Protective material: Q235B carbon steel, connection method: left and right sides and The rear lower protection is bolted, and the rear protection cross-sectional size (mm): 150×50, the height of the rear protection from the ground (mm): 410;2. ABS manufacturer and model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd./ABS/ASR-12V-4S/4M; 3. Optional cab with chassis.
[Technical parameters of chassis]
Chassis model	EQ1075SJ3CDF.		Name of the chassis		Cargo vehicle chassis
Trademark name	Dongfeng brand		Manufacturing enterprise		.Dongfeng Automobile Co., Ltd.
Number of axes	2		Number of tires		6
Wheelbase (mm)	2700,2950,3308,3600,3800
Tire specifications	7.00R16,7.00R16LT,7.00R16LT 14PR,7.50R16LT 16PR
The number of steel plate springs	6/6+5.3/3+3.5/4+3.6/4+3			Front wheelbase (mm)	1525,1519,1503,1613,1540
Types of fuel	Diesel oil			Rear wheelbase (mm)	1498,1516,1586,1670
Emissions based on standards	GB17691-2018 countryVI.
Engine model	Engine manufacturers			Engine displacement	Engine power
Q25-152E60. .YN25PLUS160B. D20TCIF61.	Anhui Quanchai Power Co., Ltd. Kunming Yunnei Power Co., Ltd. Kunming Yunnei Power Co., Ltd.			2493 2499 1999	112 114 103

Chassis configuration:Whole firewood 130Horsepower, 5-speed gearbox, front disc and rear drum brake,.7.50R14LT 8PR vacuum tire (rear single wheel), reinforced beam, front stabilizer, original electronic direction assistance, original gearbox power take-in.
Top-loading configuration:Strength alloy steel integrated main hook arm, reinforced secondary beam, cast steel tail support wheel, electronic control indoor and outdoor hydraulic control device (optionally equipped with manual self-integrated), the maximum lifting capacity of the upper installation is 1500KG, Hydraulically complete the upper box+Lower the box+Lock it tightly+Dumping and other operations, to realize the circular transshipment of one truck with multiple boxes.
