U Shaped Steel Square Box Ss Square Box For 3D Welding Table

Categories	Fixture Clamp
Brand Name:	WUXI LEMAR
Model Number:	D28/D16
Certification:	CE
Place of Origin:	WUXI
MOQ:	1
Price:	100-500 USD
Payment Terms:	,D/A,L/C,T/T,Western Union,D/P
Supply Ability:	500 units/month
Delivery Time:	15-25 work days
Packaging Details:	30002000300mm
Treatment:	Precision grinding
Surface Hardness:	HV450-550
Hole System:	D16 / D28
Flatness:	≤0.10mm/m
Squareness:	≤0.10mm/m
Load Capacity:	2000-5000kg/pc
Structure:	U-shaped open type
Working Surfaces:	5 sides with positioning holes
Application:	Supporting, positioning, extending, clamping

Contact Now

Add to Cart

Company Info.

Wuxi Lemar Machinery Equipments Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

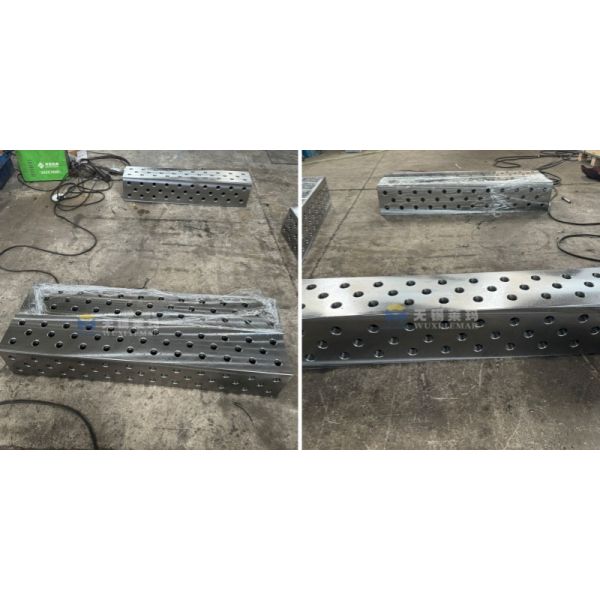

U-shaped Square Box for 3D Welding Table, High Quality

Product Overview

U-shaped Square Box for 3D Welding Table, High Quality

Material: Q355B/HT300
Main Applications: Connection of system components. Uses connecting bolts to connect 3D workbenches or extend the sides of workbenches.
If the length is ≥ 500mm, the U-shaped box has connection holes on the back for mounting support legs to match platform support legs.
5 working surfaces, all system holes with protective countersunk holes, perfect design and ultimate functionality.
The U-shaped box is reinforced with additional stiffening plates.

Technical Specifications

Core Functions

Height Support (Elevating Workpiece): Vertical placement provides a stable vertical reference for welding tall workpieces/frames.

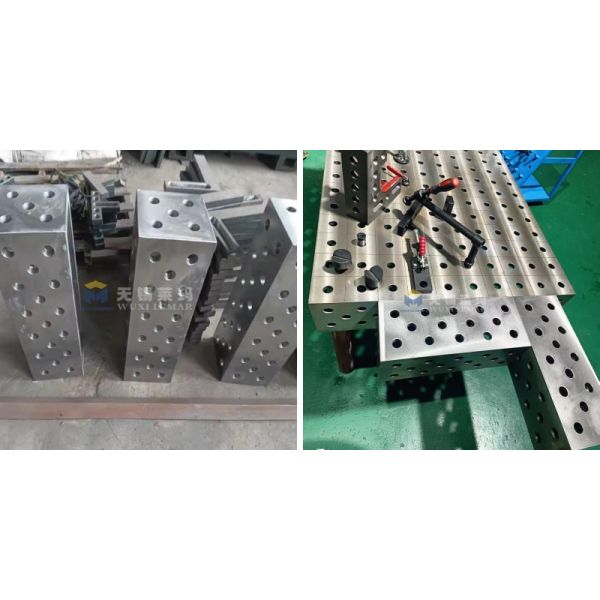

Table Expansion (Extending the Worktable): Side mounting locks to the side of the platform, extending the table horizontally/vertically to accommodate large workpieces.
90° Vertical Reference (Right-Angle Positioning): Multi-faceted high-precision planarity/perpendicularity (±0.1mm/m), serving as a right-angle template.
Clamping and Mounting Base: U-shaped grooves allow direct clamping of workpieces; surfaces can be fitted with fixtures/positioning blocks.
Spatial Assembly: Multi-piece assembly constructs a three-dimensional frame, multi-level workstations, and gantry-style tooling.

Usage Instructions

Vertical support: Base locking platform → Vertical support
Side expansion: Side locking platform → Widening/Lengthening
Assembly assembly: Multiple U-shaped components + angle iron + connecting plate → 3D fixture
U-channel clamping: Workpiece placed in U-channel → Quick clamping

Quality Advantages

High precision: Repeat positioning error < 0.05mm
High rigidity: Resistant to bending and impact, no deformation after long-term use
Versatility: Compatible with all D16/D28 system 3D welding platforms
Multifunctional: Integrated support/expansion/positioning/clamping
Durable: Aging treatment + wear-resistant surface, long service life, low maintenance

Customization Available: We support non-standard customization. Please contact us if you require a special model or size of square box.
