GateLink WiFi Smart Gate Control Solution Cloud-Based Access Controller Remote Unlock & Real-Time Monitoring for Residential Communities & Commercial Estate Security Management

GateLink WiFi Smart Gate Control Solution Cloud-Based Access Controller Remote Unlock & Real-Time Monitoring for Residential Communities & Commercial Estate Security Management

Product Description

The GateLink WiFi Smart Gate Control Solution is a reliable, cloud-native access control system designed exclusively for residential communities and commercial estates. It transforms outdated, manual gate management into an intelligent, wireless process that boosts security, cuts operational workload, and creates a smoother experience for property managers, residents and visitors alike. Built with practical user needs in mind, this solution delivers stable performance and easy-to-use tools without complicated setup or heavy maintenance.

Its standout remote unlock function brings unmatched convenience to daily access control. Authorized staff and users can open gates remotely via mobile devices from any location, eliminating on-site manual operation and long waiting times for entry. Flexible permission settings support temporary visitor access and multi-user management, keeping property access secure, orderly and fully traceable. This feature greatly reduces labor costs for property teams while raising overall access efficiency.

The built-in real-time monitoring capability adds a strong layer of perimeter security. Property managers can check gate status and on-site conditions at any time, with instant alerts for unauthorized access attempts to respond quickly to risks. All access records are stored safely in the cloud for easy review and compliance checks. With seamless integration into existing security systems and centralized cloud management, this solution simplifies large-scale estate control. It is a high-value, future-proof choice for modern properties aiming to upgrade to smart, efficient and reliable security management.

GL-WLAN-01	GL-WLAN-02	GL-WLAN-03

JUTAI GateLink Smart Controller & Camera Core Parameter Summary

General Controller Specifications (All Models)

All industrial-grade controllers support WiFi + BLE dual-mode communication, MQTT protocol and OTA remote firmware update, with built-in mobile APP/Bluetooth remote control and security alarm functions. They feature a wide operating temperature of -30°C ~ 80°C for stable operation in harsh environments.

Model-Specific Controller Parameters

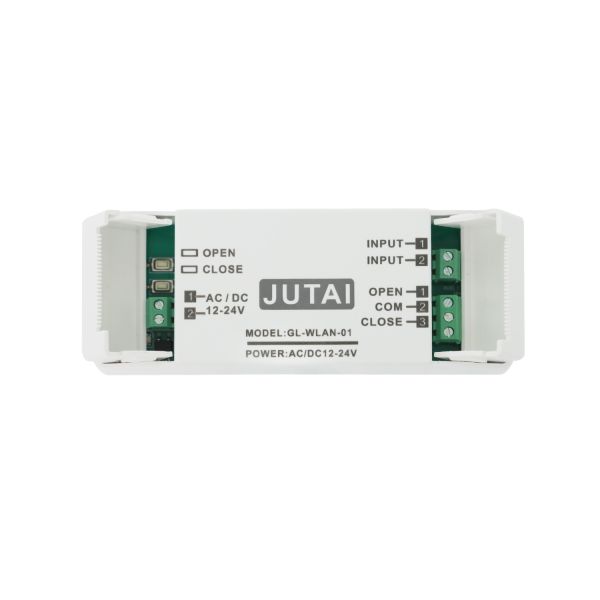

1. GL-WLAN-01 (2-Relay WiFi Controller)

• Power input: DC 12-24V/1A (5V customizable)

• Relay output: 2 channels with shared common terminal

• Load rating: DC 30V/2A, AC 220V/1A

• Dimensions: 109.5 × 41.1 × 25.6 mm

2. GL-WLAN-02 (4-Relay WiFi Controller)

• Power input: DC 12-24V/1A (5V customizable)

• Expansion port: 1 × RS485

• Relay output: 3 shared common channels + 1 independent channel

• Load rating: DC 30V/1A, AC 125V/1A

• Dimensions: 96.5 × 50 × 31.4 mm

3. GL-WLAN-03 (4-Relay 4G Controller)

• Power input: DC 12-48V (max peak voltage 60V)

• Communication: 4G + WiFi + BLE triple-mode

• Expansion ports: 1 × CAN, 1 × RS485, 2 × RS232

• Input: 4-channel isolated digital input

• Relay output: 4-channel independent NO/NC output

• Load rating: DC 30V/10A, AC 220V/10A (high-power support)

• Dimensions: 135 × 80 × 40 mm

Camera Pixel Parameters

• GL-200H26-IR WiFi Camera: 2.0 Megapixels (2MP)

• GL-R300H265-IR WiFi Camera: 3.0 Megapixels (3MP)

• JTNP-ZS500W(D)-RA5 LPR Camera: 1080P HD resolution

JUTAI is dedicated to the research and development as well as system integration of security products, achieving an intelligent one unified platform that integrates access control, parking management (parking charging system and parking guidance system), traffic lights system, and other functionalities.


Additionally, we have pioneered self-innovation, introducing pioneering concepts in both infrared detection and radar sensing devices. Our innovative technologies consistently lead the industry, and for our clients, we provide premium products, novel application concepts, comprehensive system solutions, and comprehensive technical support.


At JUTAl, we believe in the limitless pursuit of technology. Our research and development philosophy centers around diligence and excellence, striving for continuous improvement. Our ultimate goal is to transcend current standards, providing safer and more convenient services for our living spaces. We firmly believe that our greatest success lies in the success of our customers. Innovation, transcendence, and excellence are our guiding principles.
