Solar LoRaWAN Multi Parameter Water Quality Sensor

Product Introduction:

Solar LoRaWAN self-cleaning multi parameter water quality sensor - an outdoor water quality monitoring terminal that integrates solar self powered, LoRaWAN long-distance wireless transmission, automatic cleaning, and multi parameter measurement. It can simultaneously measure dissolved oxygen COD,pH,ORP, Conductivity/salinity, ammonia nitrogen, turbidity, and temperature, supporting up to 8 parameters, truly achieving "one machine for multiple uses". With 0.88W photovoltaic panels and 3400mAh lithium batteries, the battery can last for at least 3 years under the default 30 minute reporting cycle, completely freeing itself from the constraints of mains power and wiring.

Core functions:

1. Simultaneous measurement of eight parameters, covering mainstream water quality indicators
Support optional dissolved oxygen (0-20mg/L, ± 2%), COD (0-500mg/L, ± 5%), pH (0-14, ± 0.1), conductivity (0-200mS/cm, ± 1.5%), ammonia nitrogen (0-1000mg/L), turbidity (0-1000NTU), ORP (± 1500mV), and temperature (± 0.3 ℃) to meet the monitoring needs of multiple scenarios such as surface water, sewage, and drinking water.
2. Automatic cleaning system, significantly reducing maintenance workload
Built in self-cleaning brush can automatically clean the sensor surface at set intervals (6-6000 minutes) and cycles, effectively preventing microbial adhesion, ensuring data accuracy, and extending manual maintenance cycles.
3. Solar energy+LoRaWAN, worry free outdoor network
0.88W photovoltaic panel combined with 3.7V/3400mAh battery, with a battery life of ≥ 3 years (it is not recommended to report the cycle too short). LoRaWAN supports global frequency bands such as CN470/EU868/US915, Class A/C mode, communication distance can reach several kilometers, and data is transmitted directly to the cloud.
4. IP68 fully waterproof, sturdy and durable
The main body of the multi parameter sensor is made of POM+316L material, with a protection level of IP68, a working temperature of 0-40 ℃, a pressure resistance of 0.2MPa, and can operate stably submerged in water for a long time.

Solar LoRaWAN parameters:

Optional Water quality multi-parameter sensor:

NOTE:You can customize combinations. For other sensor requirements, contact our sales team for a customized quote.

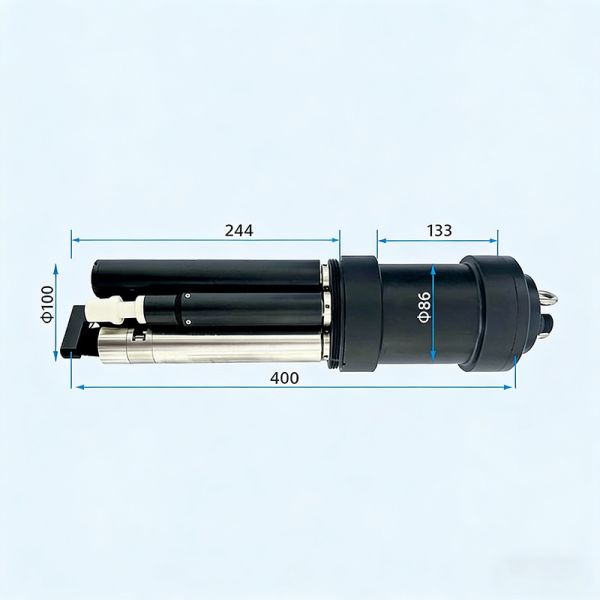

Product Display:

Quality assurance:

1.Each production process is inspected by dedicated personnel, with strict controls at every stage to ensure stable and reliable product quality.

2.Professional engineers oversee the entire quality inspection and control process, enabling closed-loop management from raw material sourcing to finished product.

3.The product has obtained multiple authoritative certifications, including CE, RoHS, and metrological certification, complying with stringent domestic and international standards.

Application:

• Surface Water Monitoring: Online Analysis of Water Quality in Rivers, Lakes, and Reservoirs
• Drinking water source: Multi parameter monitoring of water source and water treatment plant
• Aquaculture: dissolved oxygen pH, Real time monitoring of key indicators such as ammonia nitrogen
• Industrial wastewater and sewage treatment: control of discharge outlets and treatment process

Customer on-site examples:

FAQ:

1.Are you manufacture?

A:Yes,we are Tranmitter manufacturer and exporter in China with more than 10 years of CE,ROHS,FCC,ISO and 11 patents experience.

2.Do you offer OEM services?

A:Yes,we can provide you with OEM services and design housings and logos.

3.DO you offer free samples?

A:Sorry,we don't offer free samples.After ordering in bulk,we will deduct the sample fee from the second order.

Why choose us:

• Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
• Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
• Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
• Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
• Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.

ZONEWU is a professional provider of LoRaWAN IoT sensors and wireless sensing solutions. We focus on industrial-grade, low-power, long-range sensors for smart industry, agriculture, environment and smart city. We deliver reliable products and customized services to global system integrators and clients.
