Automatic EVA Foaming Vulcanizing Press with 1200x1200mm Platen Size and CE/ISO9001:2008 Certification

Categories Rubber Vulcanizing Press Machine
Brand Name: SFC
Model Number: XLB-1200X1200X4
Certification: CE, ISO
Place of Origin: Qingdao, China
MOQ: 1 set
Price: US$10,000.00-5000.00
Payment Terms: T/T,L/C
Supply Ability: 900 set/year
Delivery Time: 25-35 days
Principle: High-Pressure Air Type
Export Markets: Global
Automation: Automatic
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic EVA Foaming Vulcanizing Press with 1200x1200mm Platen Size and CE/ISO9001:2008 Certification

EVA Foaming Vulcanizing Press, Rubber Machine, Foaming Sheet Rubber Press, EVA Foaming
Product Overview

EVA Foaming Vulcanizing Press with 1200x1200mm Platen Size. Professional rubber processing equipment for EVA foam production with automatic operation and CE/ISO9001:2008 certification.

Technical Specifications
Model: XLB-1200X1200X4
Total Pressure: 5MN
Motor Power: 18.5KW
Platen Size: 1200*1200mm
Daylight: 150mm
Automation: Automatic
Certification: CE, ISO9001:2008
EVA Foaming Vulcanizing Press - Industrial rubber processing machine
Key Features
  • High quality plate press with beautiful modeling and compact structure
  • High speed open/close mold for increased production efficiency
  • Simple structure with wide application range and easy operation
  • Available with hand control or electric control systems
  • Small temperature difference and reliable pressure performance
  • Automatic pressure compensation during curing process
  • Low operation height designed for ergonomic use
  • Rapid mold opening with toggle mechanism
  • Energy saving design with space-saving configuration
Applications

This machine is primarily used for manufacturing EVA foam products including:

  • Slippers
  • Foam sheets
  • Insulation materials
  • Sports protective gear
  • Life jackets
  • Sponges
  • Mid-soles
  • Rainboots
  • Sandals
  • Clogs
  • Various shoe accessories
Technical Parameters
Parameter/TypeXLB-Q 1200x1200x4XLB-Q 1400x1500x6XLB-Q 1500x1500x6
Total Pressure (MN)5.08.010.0
Plate Size (mm)1200*12001400*15001500*1500
Plate Clearance (mm)150150150
Piston Stroke (mm)500800150
Plate Unit Pressure (Mpa)3.43.84.5
Main Motor Power (KW)18.52633
Dimension (mm)2400*2100*32002650*2400*36002750*2400*3600
Weight (kg)220003800048000

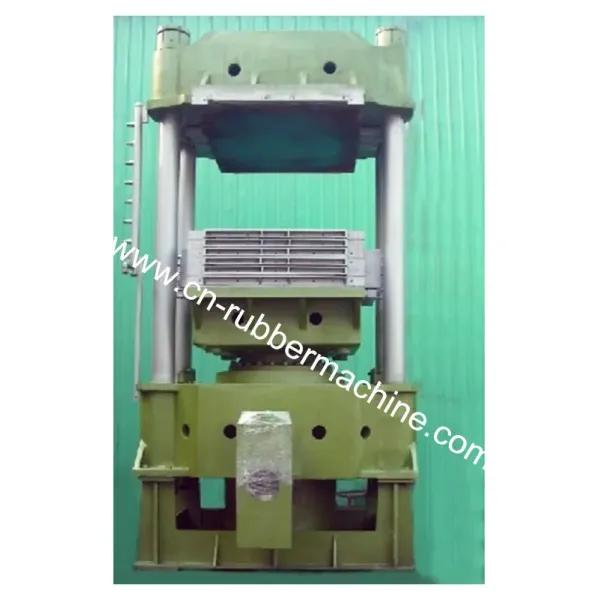

EVA Foaming Vulcanizing Press technical details and components
Operational Notes
  • Clamping force adjustable from 150 to 210 tons based on requirements
  • Fully hydraulic automatic operation with PLC control system
  • Humanized parameter computer interface for precise production control
  • Available for 2-plate molds with thickness adjustment scope: 100-200mm
  • No water circulation required for mold station
Contact Information
WhatsApp: +8618344700139
Email: rubbermachine@sfcjx.com
Origin: Jiaonan, Qingdao, China
Production Capacity: 200 Sets/Year

Qingdao Shun Cheong Machinery Co., Ltd provides first-class technology, quality service, and cost-effective rubber processing equipment for domestic and international customers.
