10-Point Capacitive Touch Screen Self Ordering Kiosk with 1920x1080 Resolution and Wall Mount

Categories	Self Ordering Kiosk
Brand Name:	SUIE
Place of Origin:	Guangdong, China
MOQ:	1
Price:	€511.98-555.73
Resolution:	1920X1080
CPU:	Intel Core I3, RK3568 Quad Core, Intel Core I5, Intel Core I7
Material:	Metal Case, Toughened Glass Panel
Mounting type:	Wall Mount
Operation System:	Linux, Android, Windows
RAM:	2GB DDR3, 4GB DDR3, 8GB DDR3
Screen Type:	LED
LCD Size:	21.5" / 24"/ 32" Portrait Orientation IPS LCD
Brightness:	280-300 NITS
Touch Screen:	True Flat, Capacitive Multi-touch
USB Ports:	5 x USB 2.0 Type A, 1 x USB 3.0 Type A
Serial Port:	3 x RS232 (5V/12V)
LAN:	RJ-45,10/100/1000Mbps Giga Ethernet
Speaker:	2 x 5W (8Ω) Internal Speaker
Power Cable:	110-240V

Contact Now

Add to Cart

Company Info.

Shenzhen Shareme Electronic Technology Co., Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

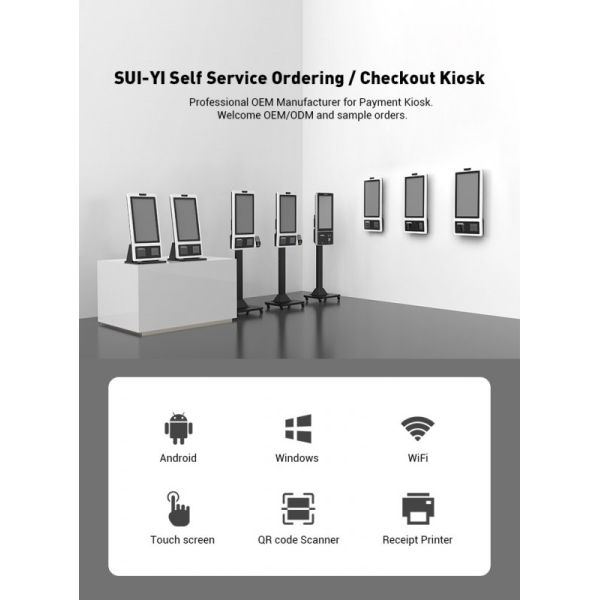

Multiple-point Touch Screen Self Ordering Kiosk

Advanced self-ordering kiosk featuring sensitive capacitive multi-touch screen technology for intuitive user interaction.

Technical Specifications

System Configuration
Operating System	Windows 10 / Android 11
Processor	Intel® J1900, 2M Cache, 2.0 GHz Intel® J6412, 2M Cache, 2.0 GHz Intel® Core™ i3-1115G4, 3M Cache, 2.40 GHz RK3568 Cortex A17 Quad core 2.0 GHz
System Memory	Windows: 1 x DDR4, SO-DIMM, 4GB (Max. 16GB) Android: DDR4, 4GB, on board
Storage	Windows: 128GB; Android: 32GB

LCD Touch Panel
LCD Size	21.5" / 24"/ 32" Portrait Orientation IPS LCD
Brightness	280-300 NITS
Resolution	1920*1080; 16:9
Touch Screen	True Flat, Capacitive Multi-touch

I/O Ports & Connectivity
USB Ports	5 x USB 2.0 Type A, 1 x USB 3.0 Type A
Serial Ports	3 x RS232 (5V/12V)
LAN	RJ-45, 10/100/1000Mbps Giga Ethernet
HDMI	Additional HDMI INPUT output up to 1920*1200@60HZ
Audio Ports	1 x Line-out; 1 x Mic-In
Video Port	1 x VGA

Audio & Power
Speaker	HD Audio: 2 x 5W (8Ω) Internal Speaker
Power Cable	110-240V

Modular Functions
Scanner	Bar/2D Code small window
Printer	80mm thermal printer, embedded Printing width: 72mm Cut method: Partial cut Print speed: 170 mm/s (max) Paper feed method: Easy loading Paper roll diameter(max): 80 mm Epson OPOS driver
POS Terminal Holder	Compatible version
WiFi	IEEE802.11b/g/n 2.4G

Environmental Specifications
Operating Condition	0ºC ~ 40ºC, 10% ~ 90% RH, non-condensing
Storage Condition	-20ºC ~ 60ºC, 10% ~ 90% RH, non-condensing

After Sales Service
Warranty	1 Year warranty (RMA service, remote maintenance and video manual)

Packaging & Delivery

Package Material	Customized Neutral Hardened Carton, goods wrapped by high quality polyfoam
Package Dimensions	21.5" Self order kiosk + floor stand: 1004050cm, 36kg GW, 12pcs/pallet 24" Self order kiosk + floor stand: 1004053cm, 37kg GW, 12pcs/pallet 32" Self order kiosk + floor stand: 1154060cm, 46kg GW, 8pcs/pallet
