EDK580 Series High-Current Vector Drives
Product Overview
The EDK580017A0S2 is a high-power variant of the EDK580 series,
capable of delivering up to 17A of output current from a
single-phase 220V supply. This model is engineered for heavy-duty
motors used in irrigation, ventilation, and industrial mixing where
3-phase power may not be available but high-performance vector
control is essential.

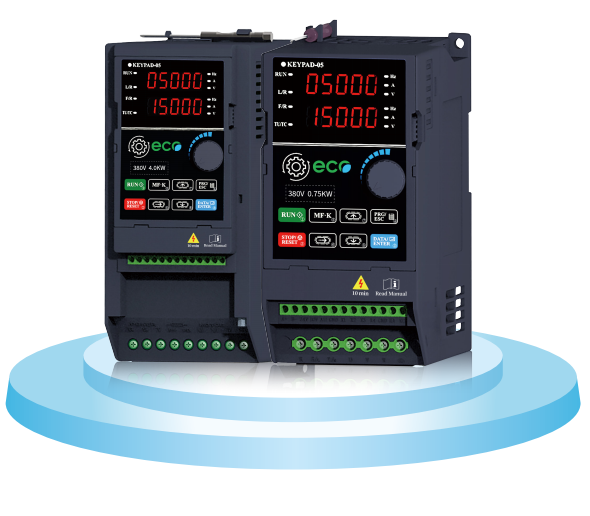

Its innovative "Book-size" design offers a sleek, narrow profile
that facilitates easy installation and cabinet cooling while
providing customers with a safe, reliable, and economical process
control solution for high-power, space-sensitive projects.
Technical Specifications
Input Voltage
1-Phase 220V (±15%)
Control Mode
Sensorless Vector (SVC)
Overload Capacity
180% for 3s
Drive Motor
PMSM / Asynchronous Motor
Communication
RS485 Interface (Standard)
Key Features
High Power Density in Narrow Body: Delivers substantial current output in a miniaturized frame,
making it the most compact drive in its power class.
Robust Load Handling: Excellent resistance to load fluctuations, ensuring steady output
even during heavy impact loads common in crushing or mixing
applications.
Multi-stage Speed Control: Supports up to 16 programmable speed stages, allowing for complex
automated cycles without high-end external controllers.
Complete Model Range
| Model | Input Voltage | Output Current (A) | Adaptable Motor (HP) | Power (kW) |
|---|
| EDK580004A0S2 | 1-Phase 220V | 4 | 1 | 0.75 |
| EDK580007A0S2 | 1-Phase 220V | 7 | 2 | 1.5 |
| EDK5800096S2 | 1-Phase 220V | 9.6 | 3 | 2.2 |
| EDK580002A1T4 | 3-Phase 380V | 2.1 | 1 | 0.75 |
| EDK580003A8T4 | 3-Phase 380V | 3.8 | 2 | 1.5 |
| EDK580005A1T4 | 3-Phase 380V | 5.1 | 3 | 2.2 |
| EDK580006A8T4 | 3-Phase 380V | 6.8 | 4 | 3 |
| EDK580009A0T4B | 3-Phase 380V | 9 | 5 | 4 |
| EDK580013A0T4B | 3-Phase 380V | 13 | 7.5 | 5.5 |
| EDK580017A0T4B | 3-Phase 380V | 17 | 10 | 7.5 |
| EDK580025A0T4B | 3-Phase 380V | 25 | 15 | 11 |
| EDK58003240T4B | 3-Phase 380V | 32 | 20 | 15 |
Company Profile
We are a professional enterprise specializing in the R&D,
manufacturing, and sales of high, medium, and low-voltage
inverters, energy-saving control systems, servo drives, and New
Energy Vehicle (NEV) motor drive technologies. Backed by a
dedicated technical and management team with over 20 years of experience in theoretical research, product development, and
quality control, we are proud to be one of the pioneers in China to
independently develop inverter products.
KOCINVERTER utilizes world-leading technological solutions,
including advanced vector control and torque control. Our
performance has reached the international advanced level, making
our products highly capable of directly replacing European, American, and Japanese brands in various demanding applications.
Applications
Manufacturing Excellence
Our motor factory scale and product line, products details
Certifications
We have CE, ISO9001, CCC and other certificates
Packaging
Frequently Asked Questions
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We have pre-sale service, in-sale service and after-sale service.
What we pursue is long-term cooperation, so our principle is
customer first.
What are your terms of delivery?
Generally we ship in FOB term, but we could offer the solution for
CNF, CIF and DDP, which all based on your requirement.
What's the delivery time?
15 to 35 days after receiving your payment in advance.
