Max. O.D. 215MM Phoenix SP1B07 Single Convoluted Air Spring Low Maintenance

Categories Convoluted Air Spring
Brand Name: AIRSUSTECH
Model Number: 1B1209-P
Certification: ISO/TS16949:2009
Place of Origin: Guangzhou, China
MOQ: 1 Piece
Price: Negotiable
Payment Terms: T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability: 1000 PCS/Week
Delivery Time: 3-8 Working Days
Packaging Details: Strong Carton Box or as Customers Requirement
Material: Rubber+Steel
Number of Ply Bellows: 1
Color: Black
Cross: Phoenix SP 1 B 07
Air Inlet: G1/4
Max. Lifting Pressure: 8 Bar
After-sales Service: 12 Months
Compatibility: 100% Accuracy of Fit
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Max. O.D. 215MM Phoenix SP1B07 Single Convoluted Air Spring Low Maintenance

Max. O.D. 215MM Phoenix SP1B07 Single Convoluted Air Spring
Low maintenance single convoluted air spring with maximum outer diameter of 215mm, designed for industrial applications requiring reliable vibration isolation and pneumatic suspension.
Product Specifications
ManufacturerAIRSUSTECH
Model Number1B1209-P
Sample AvailabilityAvailable
Quality StandardHigh
HS Code8708809000
Technical Characteristics
Bead Plate Width135 mm
PCD53 mm
Distance Between Air Inlet and Holes26 mm
Minimum Compressed Height50 mm
Maximum Extended Height115 mm
Air FittingG1/4
Mounting Holes2x M8 x 1.25
Max. Outer Diameter215 mm
OEM Equivalent Numbers
AIRSUSTECH 1B1209-P equivalent to:
Phoenix SP 1 B 07
AIRSUSTECH 1B1209 M8-G3/4 equivalent to:
  • Firestone W01-M58-6165
  • Contitech FS 120-9
  • Dunlop 8''x1 S08101
  • Bos-ch 822419003
  • Festo EB-215-80
  • Norgren PM/31081(8x1)
  • Weforma WBE 300-E1
  • Airtech 140293
  • Airtech 111003/1B-190FB
  • Megatech 1S120-9 3/4 M8
  • Oria M-30
AIRSUSTECH 1B1209 M8-G1/4 equivalent to:
  • Firestone W01-M58-6166
  • Dunlop(FR) 8''x1 S08100
  • Bos-ch 822419008
  • Weforma WBE 300-E2
Technical Parameters
Vibration Isolation - Dynamic Characteristics
Pressure P [bar]345678
Force (Load) [kN]3.95.36.88.39.610.9
Spring Rate [N/cm]131516201925223025352840
Natural Frequency [Hz]2.92.82.72.62.62.6
Pneumatic Application - Static Characteristic Values
Height H [mm]Pressure p [bar]345678
120Force [kN]3.14.35.66.98.09.2
110Force [kN]3.95.36.88.39.610.9
100Force [kN]4.56.17.99.711.012.4
90Force [kN]5.06.88.910.812.213.8
80Force [kN]5.57.49.711.613.315.0
70Force [kN]5.97.910.312.314.216.0
60Force [kN]6.38.210.713.015.017.0
Frequently Asked Questions
How do you guarantee quality?
We conduct comprehensive testing including aging, hardness, bending, tension, viscosity, rheology, water inspection, bursting, fatigue, and other quality assurance tests.
What is your sample policy?
Samples are available when we have ready parts in stock. Customers are responsible for sample costs and courier expenses.
How do you maintain long-term business relationships?
We maintain high quality standards and competitive pricing to ensure customer benefits. We value every customer relationship and approach business with sincerity and partnership.
What is the model number of the Convoluted Air Springs?
The model number for Convoluted Air Springs is 3H6976.
How do you correctly identify the products you need?
Provide the part number for direct identification. For engine and gearbox parts, supply the engine or gear model and number if the part code is unknown.
Product Images

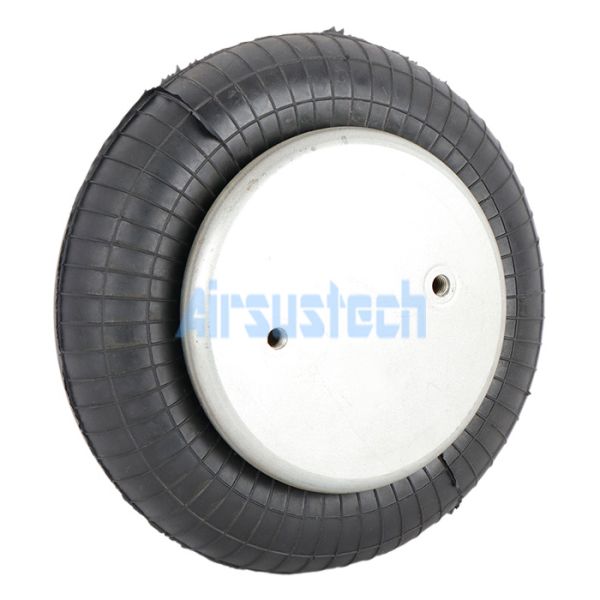

AIRSUSTECH Convoluted Air Spring 1B1209-P front view AIRSUSTECH Convoluted Air Spring 1B1209-P side view Technician measuring dimensions of AIRSUSTECH air springs Advanced production equipment for air spring manufacturing
