RNHV Series Medium-Voltage Variable Frequency Drive
The RNHV series intelligent medium-voltage variable frequency drive
utilizes power unit series connection technology to directly output
6kV/10kV voltage, representing a reliable voltage source medium
voltage VFD solution.
Engineered for high reliability, user-friendly operation, and
exceptional performance, this drive effectively meets energy-saving
speed control requirements for industrial fans, pumps, and
compressors, enhancing production efficiency and processes.
Each system undergoes rigorous inspection and performance testing
before shipment, ensuring consistent quality and reliable
performance for every equipment unit delivered.
Integrated Design & Installation
Featuring an integrated design concept that includes transformer
cabinets, power cabinets, control cabinets, and optional
medium-voltage switchgear with bypass cabinet, the RNHV series
minimizes installation complexity. Users simply connect
medium-voltage input/output cables, low-voltage control power
supply, and control signal lines for rapid commissioning.
With integrated transportation and unilateral maintenance
capabilities, the RNHV series offers convenient on-site
installation, maintenance, and commissioning. The system
incorporates metallized film DC support capacitors and internal
mechanical bypass modules, providing higher reliability,
maintenance-free operation, and extended lifespan compared to
traditional electrolytic capacitors.
Technical Specifications
| Model Number | RNHV Series |
|---|
| Input Voltage | 3kV / 6kV / 10kV (±10%) |
|---|
| Power Range | 160kW - 12,000kW |
|---|
| Control Mode | PG Vector / V/F Control |
|---|
| Frequency | 50/60Hz ±3% |
|---|
| Efficiency | ≥98.5% (Rated Load) |
|---|
| Power Factor | ≥0.96 (Load >20%) |
|---|
| Cooling | Forced Air Cooling (Standard) |
|---|

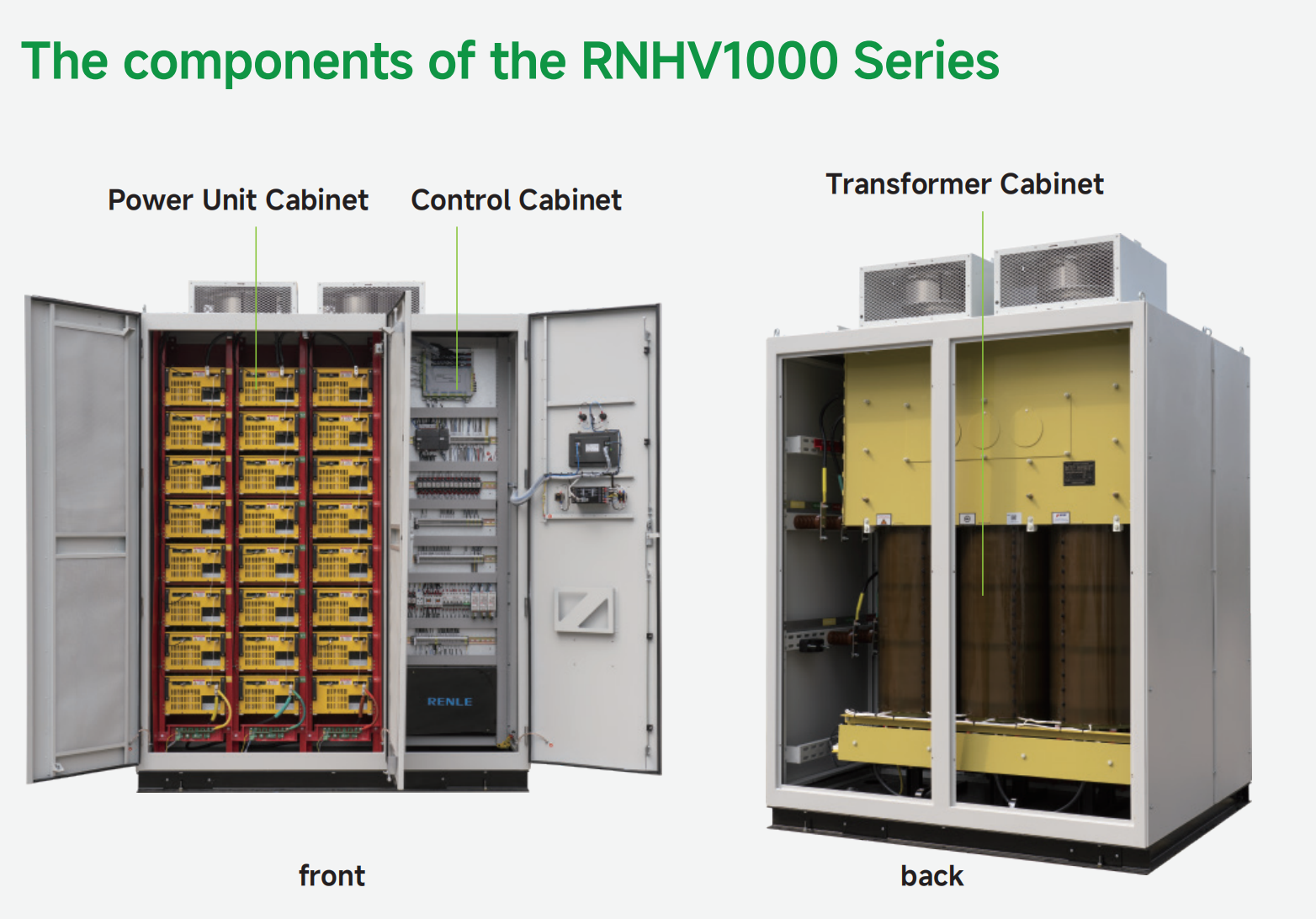

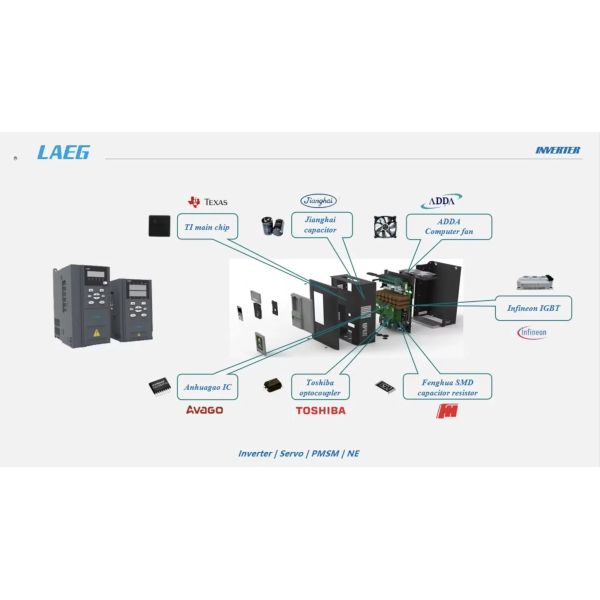

Product Components
Key Features
- Ultra-Low Harmonic Distortion: Multi-level phase-shifting rectification technology controls input
current harmonics within IEEE 519 limits, eliminating need for
additional input filters
- Automatic Unit Bypass: Hardware-level bypass mechanism isolates faulty modules in
milliseconds to maintain continuous operation
- Perfect Sine Wave Output: Cascaded multi-level PWM output minimizes dv/dt stress on motor
insulation and prevents motor overheating
- Flying Start (Speed Tracking): Integrated speed-tracking algorithms allow restart of rotating
motors without overcurrent trips
- Voltage Sag Ride-Through: Optimized control logic ensures operation during transient grid
voltage fluctuations
- Master-Slave Control: Supports synchronized control for multi-motor drive systems with
balanced load distribution
Applications
Suitable for various industrial applications including packing
machines, conveyor systems, and automated production lines.
Manufacturing Excellence
Our motor factory scale and product line, products details
Certifications
We have CE, ISO9001, CCC and other certificates
Packaging
Frequently Asked Questions
Are you a factory or trading company?
LU'AN JIANGHUAI is a factory that has been focusing on motors and
accessories for more than 50 years.
What about the warranty?
We offer 12 month warranty period as the quality guarantee.
Can you do OEM?
Yes, we offer OEM services.
How about your service?
We provide comprehensive pre-sale, in-sale, and after-sale service.
Our principle is customer first, focusing on long-term cooperation.
What are your terms of delivery?
Generally we ship FOB, but we can also arrange CNF, CIF and DDP
based on your requirements.
What's the delivery time?
15 to 35 days after receiving your payment in advance.
