SMTCL New-Generation VMC850Q Vertical Machining Center Features Upgraded Structural Performance, Enabling Ultra-Precision Processing And High-Quality Forming Operations.

Categories	CNC Vertical Machining Center
Modle::	VMC850Q
MOQ:	1 Set
Delivery Time:	45-60 days
Y Axis travel:	550mm
Z Axis travel:	540mm
Spindle Motor Power(kW)::	7.5/11
CNC Control System::	FANUC, Siemens
Payment Terms:	L/C,T/T,Western Union
X Axis travel:	850mm
Price:	Negotiable
Place of Origin:	China
Feed Speed(mm/min)::	1 - 10000 mm/min
Brand Name:	SMTCL/SYMG
Certification:	ISO certification
Model Number:	VMC850Q
Supply Ability:	50 sets per month
Packaging Details:	The wooden case，Tin trunk ,Other seaworthy packing
Table size (L×W):	1000x500mm
Tool Magazine Capacity::	24
Brand::	SMTCL

Contact Now

Add to Cart

Company Info.

Shanghai HD ME Tech Co., Ltd.

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product advantages:

High rigidity & anti-vibration design with optimized rib structures for bed, slide and column.
Ultra-precision machining: micron-level interpolation, surface finish Ra ≤ 0.6μm, capable of machining 0.08mm diameter needle parts.
Larger machining range with Y-axis travel increased to 550mm for versatile part processing.
Equipped with imported roller linear guides, ball screws, bearings, plus Taiwan spindle and tool magazine.
Fully enclosed tool magazine suits various materials and reduces maintenance.
Higher bed cavity and enlarged coolant tank capacity.
Optional high-performance motor spindle, linear scale, spindle cooling (oil/water chiller).
Pre-configured automation interface for excellent integration capability.
Professionally simulated and optimized, verified by precision manufacturing and strict testing, delivering outstanding cutting performance for diverse parts.

Product performance:

High rigidity:
Bed frame with 8 base supports;
Thickened sliding seat cavity;
Independent rib support for the column guide surface
High dynamic response:
Spindle speed: 10000 rpm;
Three-axis rapid movement: 48/min;
Error compensation technology
High performance:
Three-axis stroke: 850/550/540mm;
Quantitative processing standards,
Processing accuracy: IT6 grade

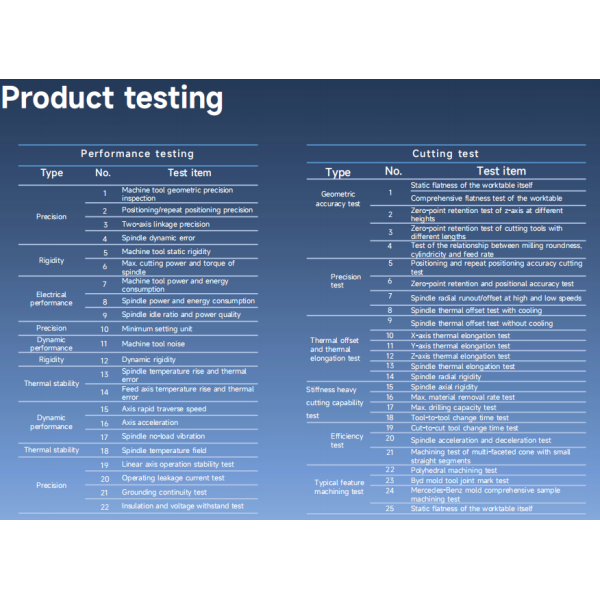

Feature 1: Stable & reliable - Comprehensive testing, consistent performance through comparative testing

7 sets of batch performance testing equipment, 7 sets of cutting testing equipment

22 performance test items and 25 cutting test items per equipment

Third-party evaluation: Leading performance level

Feature 2:High-quality machining capability - High precision, tool joint mark control technology; high surface finish, roughness Ra 0.8 μm

Part name: Tool joint mark test piece

Industry: New energy vehicles, robotics; material (AL6061)

Part dimensions: 200×150×20mm

Process difficulties:

* Tool joint marks on part surface

* Tests machine spindle and machining stability

* Surface quality requirements

Feature 3:Ultra-micro precision machining capability - High stability, φ0.08mm fine needle machining

Part name: D0.2mm engraving machining

Industry: Semiconductor, medical, etc.; material: AL7075

Part dimensions: φ40×30mm

Process difficulties:

* Weak rigidity of machining position, prone to deformation

* Tests machine tool feed control and stability

* Precise control of tool runout and tool setting

* Surface burr removal technology

Key industries:

Product Paramenters:

Item		Unit	Specifications
Worktable	Table size (L*W)	mm	1000*500
	Max load on the table	kg	600
Capacity	X axis travel	mm	850
	Y axis travel	mm	550
	Z axis travel	mm	540
	Spindle nose to table surface	mm	120-660
Spindle	Spindle speed	rpm	10000
	Spindle taper/spindle shank	mm	7/24 taper
	Spindle taper/spindle shank	mm	BT40
	Spindle motor	kw	7.5/11
	Maximum output torque	N.m	35.8/70
	Spindle drive type		Synchronous tooth belt
Feed rate	X,Y,Z rapid traverse	M/min	48/48/48
Feed rate	Max cutting feed rate	M/min	20
Accuracy	Positioning accuracy X/Y/Z	mm	0.008/0.006/0.006
	Repeatability positioning X/Y/Z	mm	0.005/0.004/0.004
	Tool storage capacity	pc	Arm type 24
	Max tool diameter	mm	150(80)
Turret	Max tool length	mm	250
Turret	Tool change time(T-T)	sec	2.5
Others	Overall dimensions(L*WxH)	mm	240031252840
	Net machine weight	kg	5100
	Total power requirment	KVA	18
Standard configuration:	FANUC numerical control system, 10,000 rpm spindle, BT40-24 disc tool magazine, water tank + bed double helical chip removal system:
Selective configuration:	Chain-type chip remover, four-axis turntable, water outlet at the center of the spindle, automatic door
