6KW High Efficient DC Rectifier Solution with Remote Monitoring for Telecommunication Project

6KW High Efficient DC Rectifier Solution with Remote Monitoring for Telecommunication Project

Product Overview

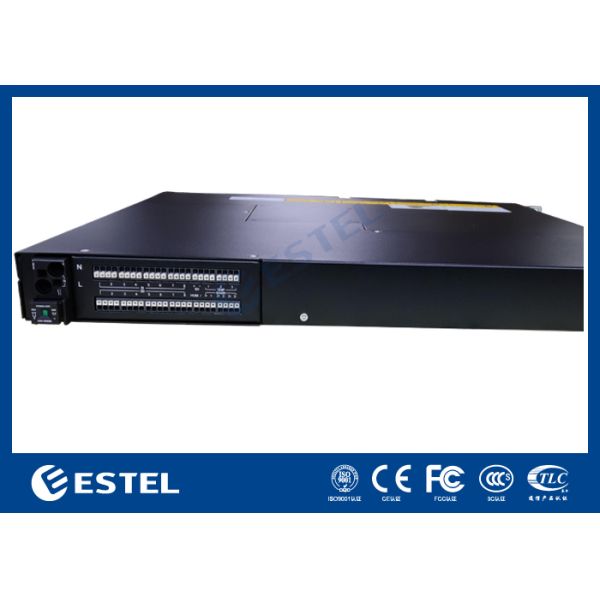

The ET4860 is a high-efficiency(＞96%) 6kw DC48V power system developed to deliver reliable power distribution for telecommunications applications, data centers, and industrial facilities requiring maximum uptime. Operating from a 220VAC single-phase 63A/1PN supply, it provides a precisely regulated DC output adjustable from –43VDC to –58VDC (nominally –53.5VDC). With conversion efficiency exceeding 96% even at full load, the system is ideally suited for energy-conscious, high-density environments.

Modular Design for Service Continuity

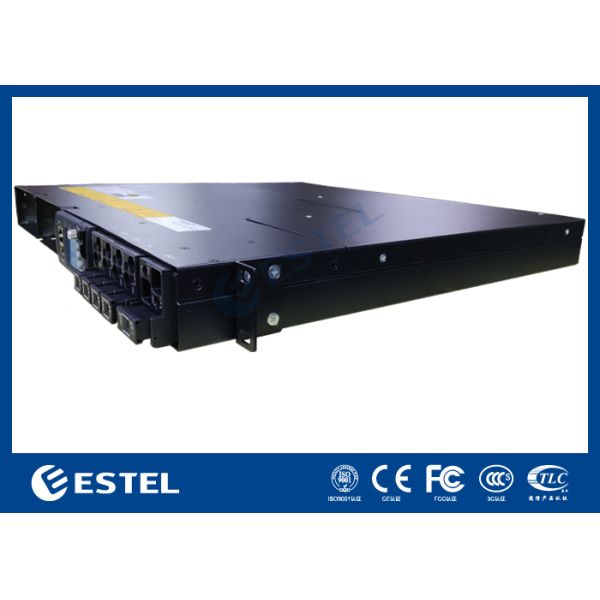

Built for redundancy, the unit accommodates up to 2*hot-swappable 3000W rectifier modules in an N+1 configuration. Each lightweight module (under 2kg) uses forced-air cooling to ensure stable thermal performance. Advanced power factor correction (≥0.99) and low total harmonic distortion (THDi ≤5%) guarantee clean power delivery while reducing stress on upstream infrastructure. The system is housed in a 1U 19-inch rack-mountable chassis with an IP20 rating, featuring front-access servicing and convenient top-panel cable entry.

Intelligent Power Management

An integrated distribution panel includes BLVD functionality for flexible load management. The onboard controller offers comprehensive monitoring and control with 3 analog sensor inputs, 8 digital status inputs, and 8 configurable dry-contact relay outputs for alarm handling. Remote oversight is supported through RS232, RS485, and SNMP interfaces, while a built-in LCD screen enables straightforward on-site configuration and real-time status verification.

Built for Extreme Conditions

The ET4860 is engineered to perform reliably in harsh environments, operating without derating across an ambient temperature range of –40°C to +65°C and relative humidity from 5% to 95% (non-condensing). It maintains full output power at altitudes up to 3000 meters. Combining compact scalability, intelligent load management, and robust construction, the ET4860 provides a future-ready DC power foundation for critical infrastructure where downtime is not an option.

Specification

Introduction

ESTEL(GUANGDONG)TECHNOLOGY CO., LTD, located in China, is a professional supplier of integrated outdoor telecom cabinet and temperature control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’ specific needs accurately.

The base station integrated solutions and products include outdoor integrated telecom equipment cabinet, battery cabinet, RRU cabinet, power supply cabinet, environment monitoring system, TEC peltier air conditioner, AC220V compressor air conditioner, DC48V variable frequency air conditioner, heat exchanger, rectifier, UPS, embedded telecom power system etc. All the above solutions and products can be custom made.

Our products and solutions have been deployed all over China. Our main domestic customers are China Telecom, China Mobile, China Unicom, State Grid, Shenzhen / Beijing Metro and Huawei / ZTE etc. In addition, our products have been exported to Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries, etc.

“ Customers First, Quality First ” is always our principle. We have attained many certifications, such as ISO9001, ISO14001, OHSAS18001, CE, UL, FCC etc. AS a telecom integrated solutions / energy saving system integrator in China, We have strong advantages in technology competitiveness, management competitiveness ,service competitiveness and price competitiveness. Through many years of experiences in design, production and implementation of different projects around the world, we have gained great reputation. Relying on professional technique and strict quality control, we will continuously offer high cost-effective products and solutions to our respectable customers globally. We will always try our best to meet customers’ need and requirement.
