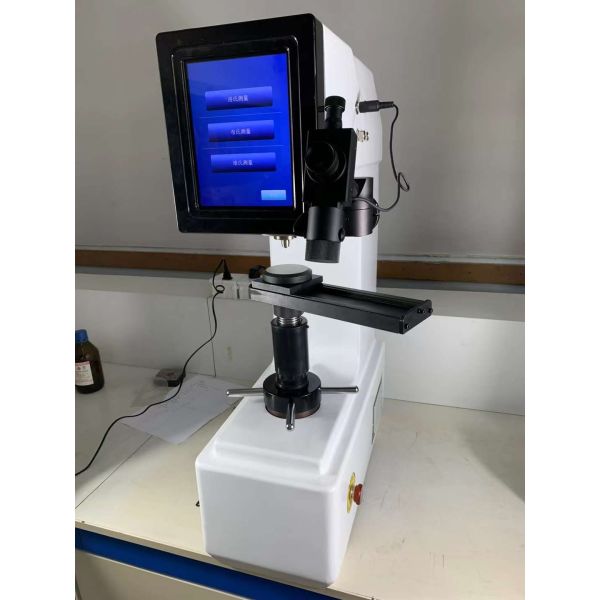

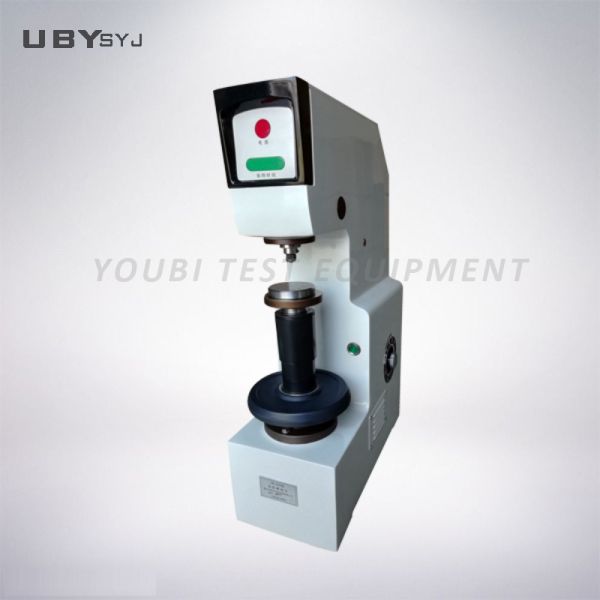

Brinell Hardness Testing Machine With Tungsten Carbide Ball
Indenter
This Brinell hardness testing machine is designed for precise
measurement of parallel planes, providing stable and reliable
surface measurement capabilities. It is suitable for Brinell
hardness determination of ferrous metals, non-ferrous metals, and
bearing alloys.
Key Features
- Leverage loading system for easy operation
- Exceptional stability, accuracy, and reliability
- Electronic directional switch control
- High precision reading microscope measurement system
- Strong adaptability to various working environments
- Automatic loading force system
- High testing accuracy with wide measurement range
- Ideal for quality control in production facilities
Executive Standards
EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384 GB/T231.2, JJG150
Technical Parameters
| Hardness Test Range | 4-650 HBW |
| Hardness Resolution | 0.1 HBW |
| Test Forces | 1839N (187.5 kgf), 2452N (250 kgf), 7355N (750 kgf), 9807N (1000
kgf), 29420N (3000 kgf) |
| Maximum Specimen Height | 230 mm |
| Throat Depth | 120 mm (distance from indenter center to frame) |
| Power Supply | AC 380V / 220V, 50Hz / 60Hz |
| Dimensions (W×D×H) | 660 × 500 × 1000 mm |
| Net Weight | 210 kg |
Our Service Commitment
Consultative Selling Process
- Inquiry Process: Discuss testing requirements, suggest suitable products, and
provide competitive pricing
- Customization Process: Create detailed drawings, provide reference photos, and confirm
final specifications
- Production & Delivery: Manufacture according to requirements, provide production updates,
conduct calibration, and ensure timely delivery
- Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Manufacturer & Warranty
We are professional manufacturers of testing equipment with
12-month warranty plus 2-month extension for sea transportation.
Technical support available via email or video chat with solutions
provided within 24-48 hours.
Delivery Terms
Standard machines: 3-7 working days for stock items, 15-20 working
days for non-stock items. Urgent orders receive special priority
handling.
Customization Services
We offer comprehensive OEM and ODM services including custom
specifications and logo placement according to your requirements.
Installation & Operation
Most machines are shipped fully assembled with English operation
manuals and videos provided. Simply connect power and begin
testing. On-site installation assistance available when necessary.
