Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester

Categories Flame Spread Test
Brand Name: GOLD
Model Number: GD-ISO 15025
Certification: ISO
Place of Origin: CHINA
MOQ: 1set
Price: USD 2900-3105/set
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5 Set per 30 days
Delivery Time: 30days
Packaging Details: Standard Wooden Case
Name: Protective Clothing Flame Test Machine
Standard: BS EN ISO 15025
Specification: 580× 580× 650mm
Horizontal Flame Height: 25mm ± 2mm
Power Source: 220V,50/60Hz
Burner Angle: Adjustable to Horizontal, Vertical & 30 °
Vertical Flame Height: 40mm ± 2mm
Nozzle Orifice: 0.19mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester

Fire Resistance Test ISO 15025 Protective Clothing Burning Flame Spread Tester
The Protective Clothing Burning Flame Spread Tester evaluates flame spread performance according to ISO 15025 standards. This specialized equipment simulates ignition risks to assess how protective clothing and fabric materials resist flame propagation under controlled laboratory conditions.
Testing Standards
BS EN ISO 15025
Technical Specifications
ParameterSpecification
Sample Holders Size160 × 200mm and 80 × 200mm
Burner Nozzle Orifice0.19mm
Flame Height25mm ± 2mm
Timer Accuracy0.1s
ISO 15025 Flame Spread Testing Equipment Fire Resistance Testing Machine Overview
Key Features
  • Stainless steel combustion chamber (1200 × 600 × 1200mm) - elegant and corrosion-resistant
  • All specimen holders constructed from stainless steel
  • Standard burner with precise flame control: 25mm ± 2mm horizontally, 40mm ± 2mm vertically
  • Automatic time recording and storage with 0.1s timer accuracy
  • PLC control system with touch screen for intelligent testing operations
  • Imported pressure gauge and regulating valve for stable gas pressure
  • Imported needle valve for precise flame height control and stable flame
  • User-friendly operation with high level of automation
  • Dual specimen holders for surface combustion and bottom combustion testing
  • Automatic system ignition and extinguishing
  • Integrated flame height gauge for verification
  • Pulsed high-voltage electronic automatic ignition system
  • PLC automated timing eliminates manual stopwatch use
  • Automatic test report generation with recorded data
  • Customizable test and ignition times via touchscreen interface
  • Switchable test programs for surface burning and bottom edge burning

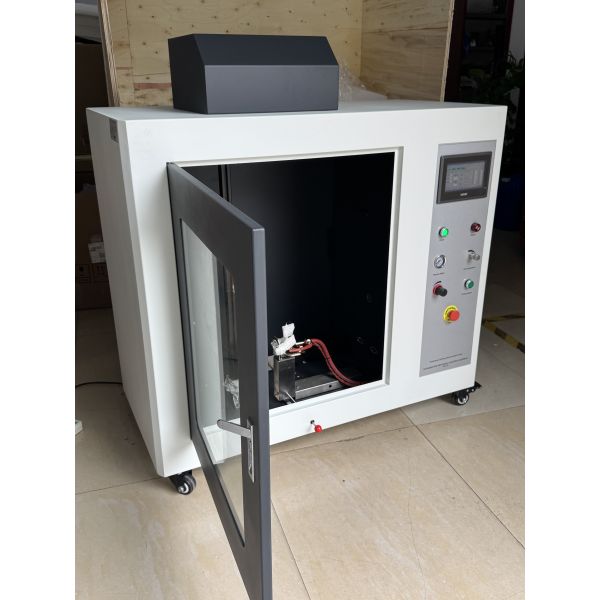

Protective Clothing Flame Spread Tester in Operation
