YSVC-650 Professional Offline PCB Router Machine for SMT Line High Precision Processing

Categories PCB Depaneling Machine
Place of Origin: Guangdong, China
Brand Name: YUSH
MOQ: 1 set
Price: $30,000 / set
Weight: 800 kg
Power: 10 kW
Voltage: 220V/380V
Router Bit Diameter: 0.8~3.0mm
Spindle Speed: 60,000 rpm
Pneumatic Pressure: 0.5 MPa
Core Components: PLC, Motor
Cutting Path Proximity: 0.5mm
Alignment Compensation: CCD Camera
Depth Adjustment Stages: 5-stage
X-Y Robot: High-Speed
Z-axis Motor: Servo
Software Type: Image Processing
Machine Type: Stand Alone
Spindle Option: NAKANISHI/KAVO
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

YSVC-650 Professional Offline PCB Router Machine for SMT Line High Precision Processing

YSVC-650 Professional Offline PCB Router Machine
Fast and accurate stand-alone PCB routers with CCD camera and sophisticated image-processing software for SMT line high precision processing.
Key Solutions and Features
A: Low-Stress Depanelization Solution - High-speed router bit precisely cuts densely populated PCBs without stressing the boards. Cutting paths can be set as close as 0.5mm to a component.
B: Advanced Image-Processing Software - Point-and-click Windows-based operation for programming router paths. CCD camera captures PCB images for simplified programming on computer screen.
C: Automatic Alignment Compensation - CCD camera reads fiducial marks on PCB and compensates for variance in cutting path positions.
D: Extended Router Bit Life - Automatic 5-stage depth adjustment extends bit life and reduces replacement time and cost.
E: High-Speed Motion System - X-Y robot and Z-axis servo motor reduce tact time and improve productivity.
F: Compact Footprint - Small space requirement for efficient factory layout.

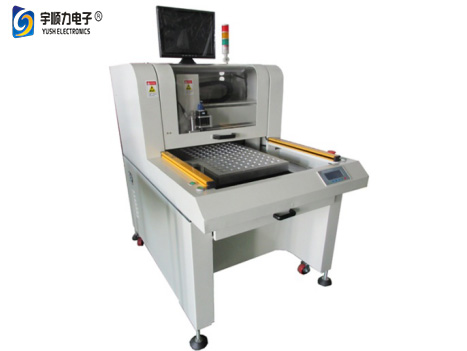

YSVC-650 Professional PCB Router Machine overview
High-Tech Router Programming
  • Quick and easy learning curve
  • Accurate software programming to micron precision
  • Ideal for programming arcs and circles
  • Save thousands of programs as Windows files
  • Transfer programs to other routers with jump drive
  • Real-time display of cutting pattern, sequence and X/Y coordinates

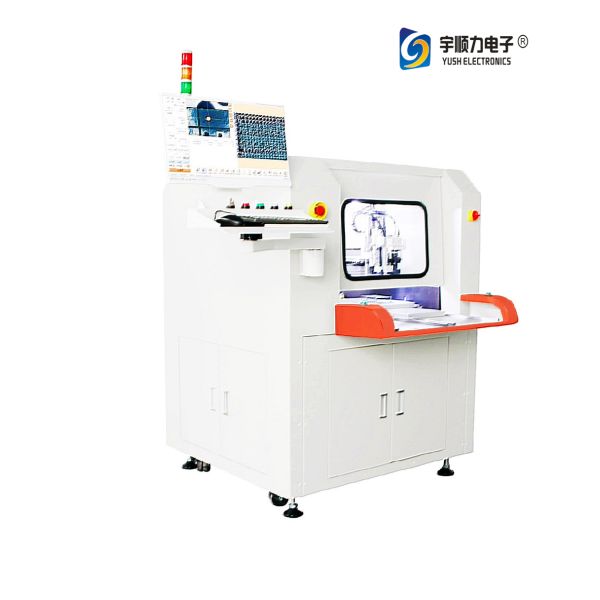

YSVC-650 PCB Router Machine compact design
Advanced Features
YSVC-650 series is a visual alignment automatic PCB router machine equipped with high-speed CCD vision correction device, especially for precision and high-capacity PCB boards routing operations. Suitable for mobile phones, GPS, PDA, MODULE and other small PCB board separation. Uses NAKANISHI Japanese precision spindle (optional Germany KAVO spindle available). Provides stress-free cutting with smooth board edges and high precision.

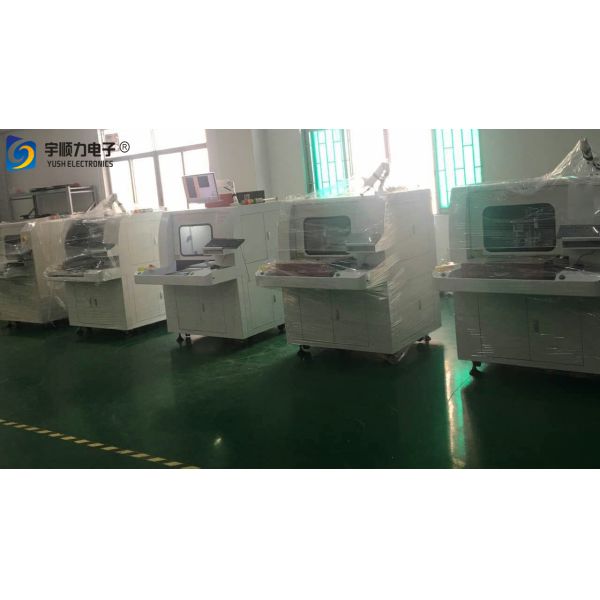

YSVC-650 PCB Router Machine in operation
Automated Production Features
A: Order Method for Automatic Cutting
  • Cutting process combined with production model and quantity according to PMC plan
  • Prevents advanced production and unclear production capacity issues
  • Avoids modifications in non-production processes
  • Enables separation of people and machines
B: QR Code Automatic Program Retrieval
  • Direct program transfer via QR code scanning - convenient, simple, error-free
  • Intelligent product switching capability
C: CCD Scanning Function
  • Industry-leading PCBA full-board scanning function
  • Reduces programming time with real-time cutting path display
  • Easy modification and simple operation
D: Industrial 4.0 - MES System Integration
  • Automatic server data retrieval
  • Uploads machine data and production data
  • Real-time equipment status monitoring

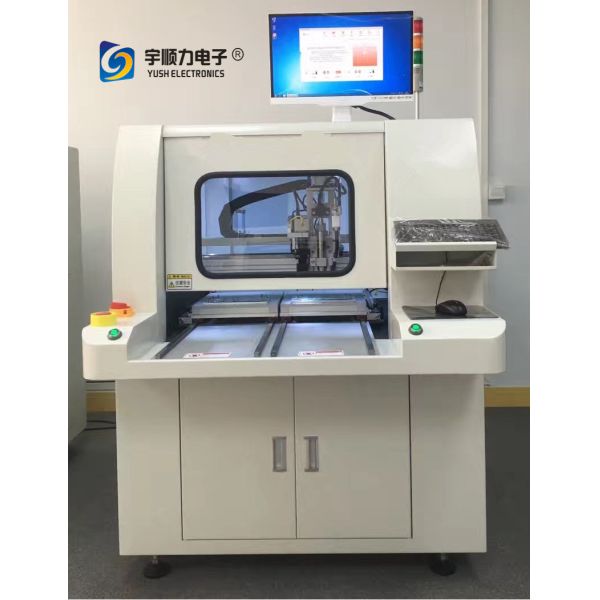

YSVC-650 PCB Router Machine MES system integration
