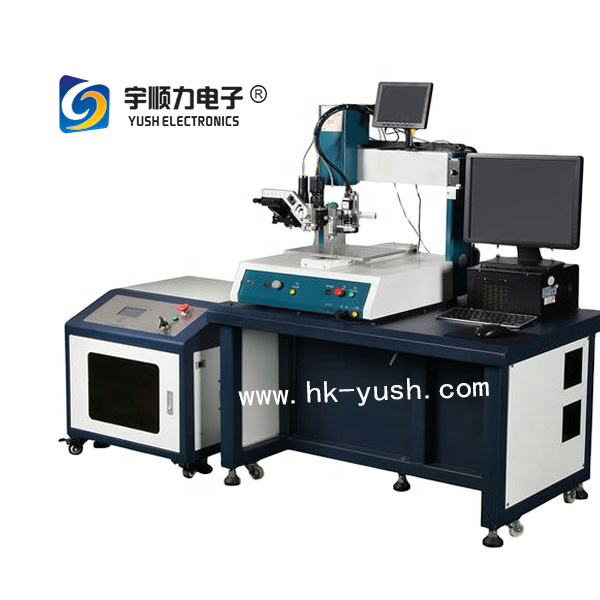

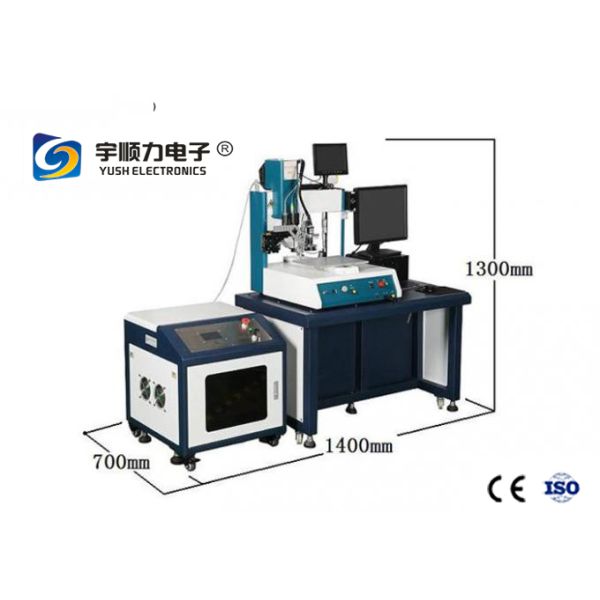

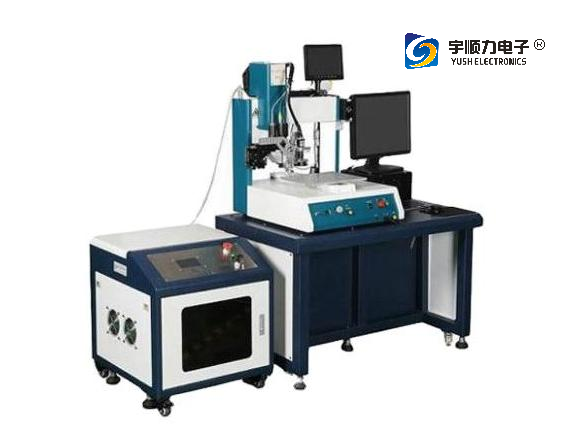

Laser Welding Machine - Board Soldering of Special Components
Device
Professional laser welding system designed for precision board
soldering of special components with integrated visual positioning
and automated functionality.
Technical Specifications
| Laser wavelength | 808±8nm |
| Fiber terminal output power | 30±6W |
| Fiber diameter | 400um / 600um |
| Fiber Optic Connector | YS-905 |
| Numerical aperture | 0.22 |
| Rated power | 500VA |
| Indication laser | 635±6nm, 5mw |
| AC power supply | AC 220V±10%50HZ, 15A |
| Ambient temperature | 10-35 °C |
| Relative humidity | ≤80%RH |
| Atmospheric pressure | ≤86-106Kpa |
| Environmental cleanliness air dust | ≤0.01g/m³ |
Key Features
- Professionally designed welding system compatible with visual
positioning CCD
- Integrated solder paste and laser functions for comprehensive laser
and solder paste integration
- Advanced visual positioning CCD with professional algorithm for
complete and accurate positioning
- Touch screen control with adjustable waveforms suitable for
precision welding applications
- Laser power supply with current feedback control for stable output
laser energy
- High-quality imported laser from the United States
- Single mode fiber output with excellent beam quality
- 20x CCD display for clear monitoring of the welding process
- Fully automatic operation with automated loading and unloading for
unmanned operation
Applications
High-density interconnect chips, ICs, chip components, connectors,
headphone plugs, cell phone speakers, energy-saving lamps, FPC
flexible circuit boards, cell phone cameras, and special components
for board soldering.
