SMT Line Dedicated YSPE Industrial High Efficiency PCB Punching Machine

Categories PCB Depaneling Machine
Place of Origin: Guangdong, China
Brand Name: YuSH
Certification: CE
MOQ: 1 set
Price: $50,000 / set
Weight: 530 kg
Voltage: 110/220V
Power: 40W
Dimensions: 730X810X1700 mm
Punch Force: 3T (up to 30T)
Working Area: 330X220 mm
Air Pressure: 0.5-0.7 Mpa
Tool Size: 730X810X1700 mm
Tool Weight: 530 kg
Core Components: PLC, Motor
Machine Type: PCB Punching Machine
Condition: New
Model: YSPE
PCB Types: Rigid, Flexible, Rigid-Flexible
Mold Customization: Available
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SMT Line Dedicated YSPE Industrial High Efficiency PCB Punching Machine

SMT Line Dedicated YSPE Industrial High Efficiency PCB Punching Machine
PCB High Efficiency Punching Machine - YSPE

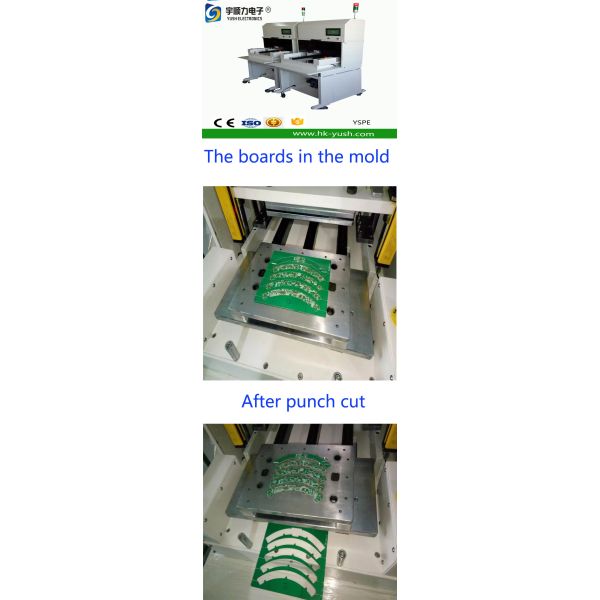

YSPE PCB Punching Machine - Front View YSPE PCB Punching Machine - Side View
Key Features
  • Compatible with Rigid PCB, Flexible PCB (FPC), and Rigid-Flexible PCB materials
  • Utilizes punching mold technology for high-efficiency cutting operations
  • Supports multiple mold configurations with easy mold changing capability
  • Simple and safe operation with user-friendly controls

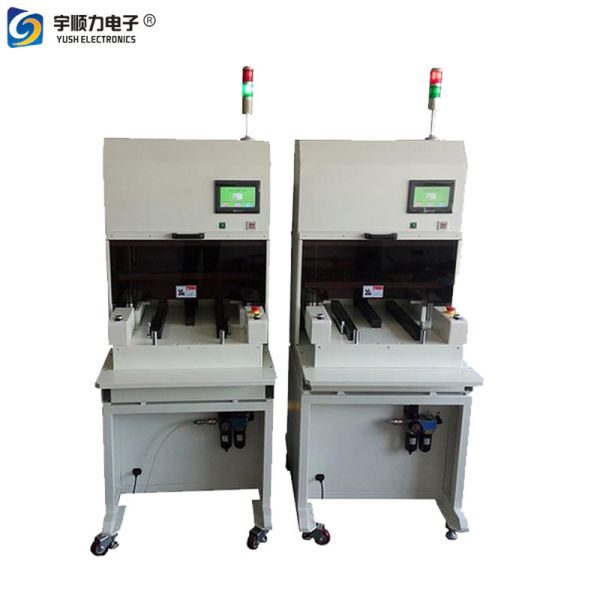

YSPE PCB Punching Machine - Operation View YSPE PCB Punching Machine - Detailed View
PCBA Sheet Separator Specifications
ModelYSPE
Punch Capacity (T)3 (customizable up to 30T)
Working Area (mm)330 × 220 (customizable)
Voltage (V)110/220
Working Air Pressure (MPa)0.5-0.7
PCB Punching Tool Size (mm)730 × 810 × 1700
PCB Punching Tool Weight (kg)530
YSPE PCB Punching Machine - Technical Diagram YSPE PCB Punching Machine - Component Layout
Advanced Operational Features
  • Robust construction with 4 casters for easy mobility and positioning
  • Supports multiple mold types with quick and easy mold changing
  • Automated lower mold in/out system for simplified product handling
  • Minimizes internal stress during PCB cutting to prevent tin stress cracking
  • High-efficiency punching for semi-finished PCB processing
  • Custom mold and die manufacturing available to meet specific customer requirements

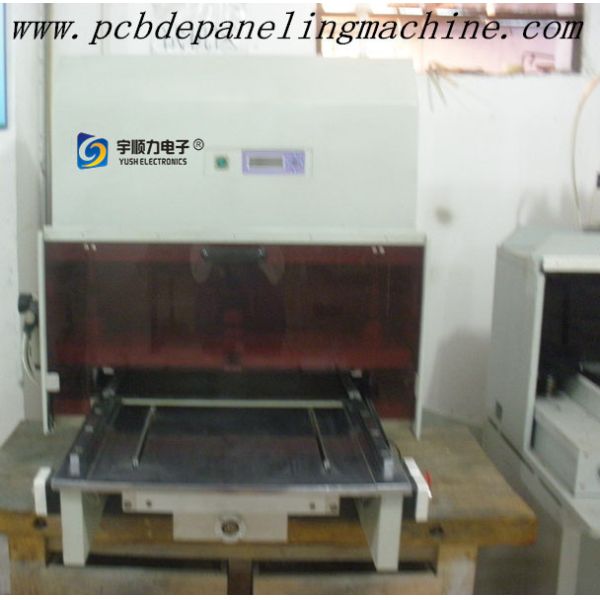

YSPE PCB Punching Machine - Production Setup
