Heavy Load Diesel Forklift 5 Ton For Industrial Applications

Categories Diesel Engine Forklift
Brand Name: SNSC
Model Number: FD50
Certification: CE
Place of Origin: CHINA
MOQ: 1
Price: USD10000-15000
Payment Terms: T/T,D/P,D/A,L/C,Western Union,MoneyGram
Supply Ability: 100 set per month
Delivery Time: 15-40 work days
Packaging Details: 3Set / 20GP
Warranty: 1 Year,2 Years,1year guarantee,1 year or 1500 running hours,three years
Stroke: 4 Stroke,2 Stroke,210mm
Condition: New
Cylinder: Multi-cylinder,Single Cylinder,4 Cylinder
Weight: 280KG,26kg,28,200~350KG,260kgs
Dimension(l*w*h): 400*325*340mm,88*56*67cm,950x600x988mm,335x380x415,920*600*930 mm
After-sales service provided: Engineers available to service machinery overseas,No overseas service provided,Overseas service center available,Overseas third-party support available
Cold style: Water-cooled,ELECTRIC MOTOR,AIR MOTOR
Fuel: Diesel,water,Gasoline
Usage: Automobile,Boat,Excavator,Other,Generator
Color: blue,gray,Green or Customized,As customers' requirement,yellow
Rated power: 50kw,140 KW/2000rpm,20-76kw,114-235KW,26kw
Brand: SNSC
Engine: Isuzu ,Mitsubishi ,Cummins
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Heavy Load Diesel Forklift 5 Ton For Industrial Applications

Heavy Load Diesel Forklift 5 Ton For Industrial Applications
Technical Specifications
SpecificationFD50FD60FD70Unit
Power TypeDieselDieselDiesel-
Rated Load500060007000kg
Load Center600600600mm
Lifting Height300030003000mm
Free Lifting Height203208218mm
Fork Size (LxWxT)1220x150x551220x150x60122x150x70mm
Mast Tilt Angle (Front/Rear)6/126/126/12°
Min. Turning Radius325033703370mm
Min. Ground Clearance200200200mm
Overhead Guard Height246024602460mm
Front Overhang610615625mm
Max. Travelling Speed (loaded)262626Km/h
Max. Lifting Speed (loaded/empty)370/450370/450370/450mm/s
Max. Traction Force (loaded)51.451.451.4KN
Max. Climbing Ability202020°
Overall Length (without fork)343134313466mm
Overall Width223522352235mm
Mast Lowered Height250025002500mm
Mast Extended Height441744174417mm
Tyre - Front8.25-15-14PR8.25-15-14PR8.25-15-14PR-
Tyre - Rear8.25-15-14PR8.25-15-14PR8.25-15-14PR-
Wheel Base225022502250mm
Wheel Thread (Front/Rear)1470/17001470/17001470/1700mm
Weight (without load)798086409340kg
Battery(12/90)X2(12/90)X2(12/90)X2V/Ah
Engine ModelCY6102BG6CY6102BG6CY6102BG6-
Rated Power81/250081/250081/2500KW/r.p.m
Rated Torque353/1700353/1700353/1700N.m/r.p.m
No. of Cylinder666-
Bore x Stroke102 x 118102 x 118102x118mm
Displacement5.7855.7855.785L
Fuel Tank Capacity140140140L
Transmission/Shift1/1 Automatic transmission---
Operation Pressure202020MPa
Key Features & Design Elements
Chinese or Japanese engine options for forklift
Chinese or Japanese Engine Options
Auto electric hydraulic transmission system
Auto Electric Hydraulic Transmission
Waterproof overhead guard protection
Waterproof Overhead Guard
Suspension seat with integrated safety belt
Suspension Seat with Safety Belt
LED warning light system
LED Warning Light

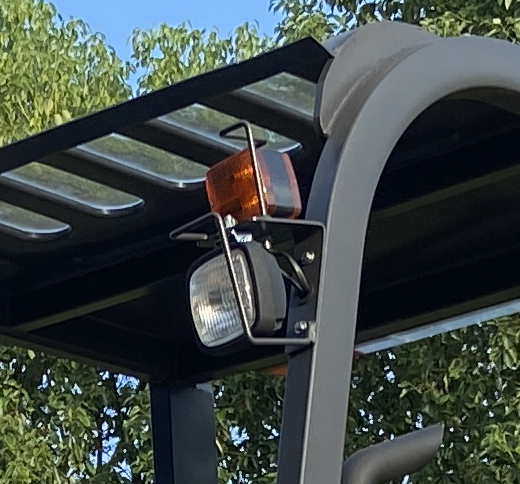

Light protection frame structure
Light Protection Frame
Double front tires for enhanced stability
Double Front Tires
Triangle wider view back mirror
Triangle Wider View Back Mirror
Double filter with high position exhaust system
Double Filter + High Position Exhaust
Optional Attachments

SNSC forklifts can be equipped with various attachments to enhance functionality, including:

  • Paper roll clamps
  • Side shifters
  • Full free container masts
  • Bale clamps
  • Drum clamps
  • Block clamps
  • Fork positioners
  • Tire clamps
  • Rotators
  • Carton clamps
  • Cabins
  • And more
Front windscreen attachment for forklift
Front Windscreen

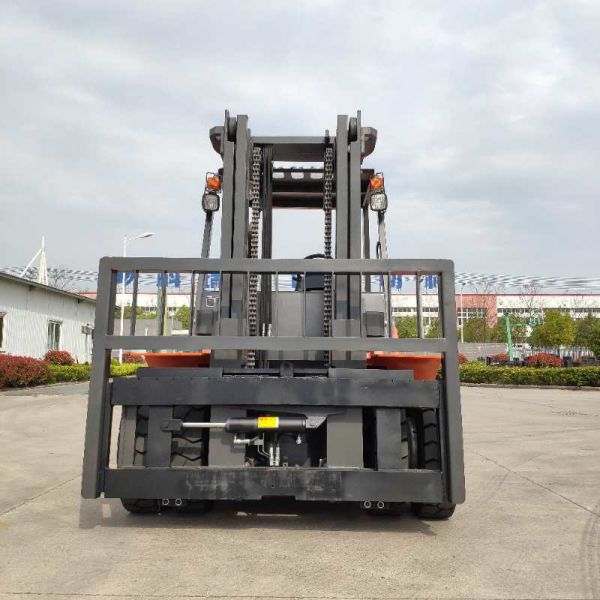

Side shifter attachment mechanism
Side Shifter
Hydraulic fork positioning function
Hydraulic Fork Positioning
Fully closed cabin with air conditioner
Fully Closed Cabin with AC
Quality Control & Testing

SNSC Forklifts undergo rigorous quality control throughout production and comprehensive testing before delivery. Our inspection process includes both indoor and outdoor testing to ensure optimal performance and reliability.

Forklift tilt angle testing procedure
Tilt Angle Test
Wheel hug test for stability
Wheel Hug Test
Brake line testing and inspection
Brake Line Test
Climbing ability test on incline
Climbing Test
Lifting capacity and stability test
Lifting Test
Turning radius and maneuverability test
Turning Test
Global Success Cases

SNSC - "Beyond your needs!" As a professional manufacturer of industrial vehicles, we offer comprehensive solutions for material handling and storage, including diesel forklifts (1.5t to 10t), electric forklifts (1t to 3.5t), LPG gasoline electric stackers, and warehouse trucks.

SNSC forklift brand overview and product range
SNSC Forklift Brand Overview

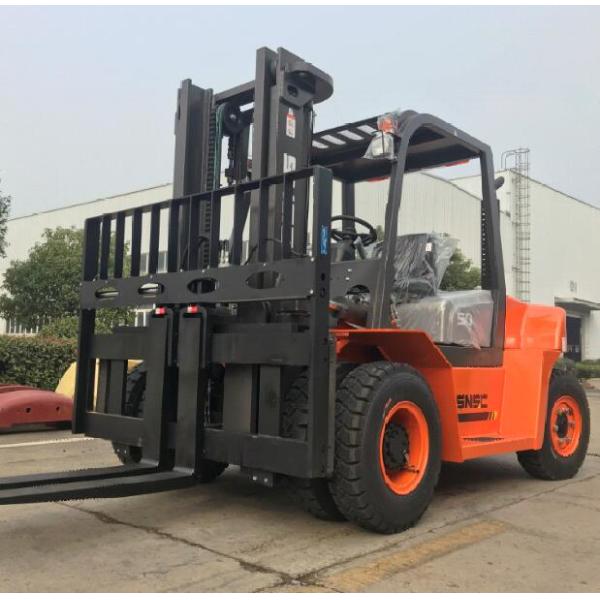

Isuzu engine 5-ton forklift exported to Peru
Isuzu Engine 5Ton to Peru
Isuzu engine 5-ton forklift exported to Russia
Isuzu Engine 5Ton to Russia
Mitsubishi engine 5-ton forklift exported to Poland
Mitsubishi Engine 5Ton to Poland

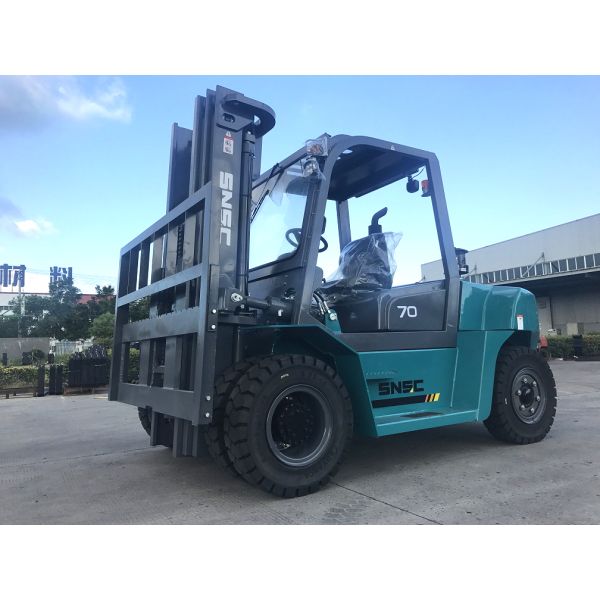

Isuzu engine 5-ton forklift exported to Senegal
Isuzu Engine 5Ton to Senegal

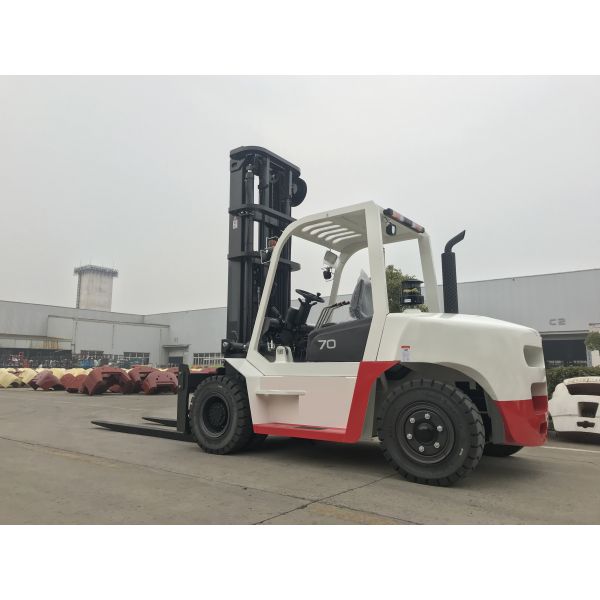

Isuzu engine 7-ton forklift exported to Algeria
Isuzu Engine 7Ton to Algeria
Isuzu engine 7-ton forklift exported to Gambia
Isuzu Engine 7Ton to Gambia
Packaging & Delivery

Each heavy-duty 5-ton diesel forklift truck includes a comprehensive package with Tool Box, Forklift Catalog, Gloves, Operation and Maintenance Manuals, Fork Sleeves, and Spare Parts.

Shipping Capacity: For 5-ton and 6-ton models: 3 units per 40'HQ container. For 7-ton models: 2 units per 40'HQ container.

Forklift packaging and shipping preparation
Our Manufacturing Facility

SNSC ranks among the top 3 forklift manufacturers in China and top 20 globally. With over 300 employees, we maintain a production capacity of 10,000 forklift units per year and export volume of 5,000 sets annually.

Our R&D center is based in Britain, and we've invested 600 million in our forklift factory, utilizing advanced equipment including welding robots to achieve over 95% automation in our production lines.

SNSC factory overview and facility layout
SNSC Factory Overview
SNSC manufacturing facility exterior
SNSC Manufacturing Facility
SNSC production line automation
SNSC Production Line
Material preparation workshop
Material Preparation Workshop
Structure workshop for frame assembly
Structure Workshop
Painting workshop for surface finishing
Painting Workshop
Assembly workshop for final production
Assembly Workshop
