W25Q64JVXGIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI

Categories NOR FLASH
Brand Name: Winbond
Model Number: W25Q64JVXGIQ
Certification: rohs
Place of Origin: CN
MOQ: 1
Price: consult with
Payment Terms: T/T,Western Union
Supply Ability: 100000
Delivery Time: 5-8days
Packaging Details: T/R
Operating Temperature: -40℃~+85℃
operating voltage: 2.7V~3.6V
Interface Type: SPI
Storage Capadity: 64Mbit
Clock Frequency (fc): 133MHz
Page write time (Tpp): 3ms
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W25Q64JVXGIQ NOR FLASH 3V 64M-BITSERIAL FLASH MEMORY WITHDUAL QUAD SPI

W25Q64JVXGIQ NOR Flash Memory
3V 64M-bit Serial Flash Memory with Dual/Quad SPI Interface
Key Features
  • New SpiFlash Memory Family: 64M-bit / 8M-byte capacity
  • Multiple Interface Options: Standard SPI, Dual SPI, and Quad SPI
  • Software & Hardware Reset functionality
  • High Performance: 133MHz clock speed with 266/532MHz equivalent Dual/Quad SPI
  • Endurance: Minimum 100K program-erase cycles per sector
  • Data Retention: Over 20 years
  • Low Power Operation: Single 2.7-3.6V supply with <1µA power-down
  • Temperature Range: -40°C to +85°C / -40°C to +105°C options
  • Flexible 4KB Sector Architecture with uniform erase capabilities
  • Advanced Security: Write-protection, OTP, array protection, and 64-bit unique ID
Available Package Options
8-pin SOIC 208-mil, 8-pad WSON 6x5-mm/8x6-mm, 16-pin SOIC 300-mil, 8-pad XSON 4x4-mm, 24-ball TFBGA 8x6-mm, 12-ball WLCSP. Contact Winbond for KGD and other options.
Pin Configuration
Pin No.Pin NameI/OFunction
1/HOLD or /RESET (IO3)I/OHold or Reset Input (Data Input Output 3)
2VCCPower Supply
3/RESETIReset Input
4-6, 11-14N/CNo Connect
7/CSIChip Select Input
8DO (IO1)I/OData Output (Data Input Output 1)
9/WP (IO2)I/OWrite Protect Input (Data Input Output 2)
10GNDGround
15DI (IO0)I/OData Input (Data Input Output 0)
16CLKISerial Clock Input
Product Documentation

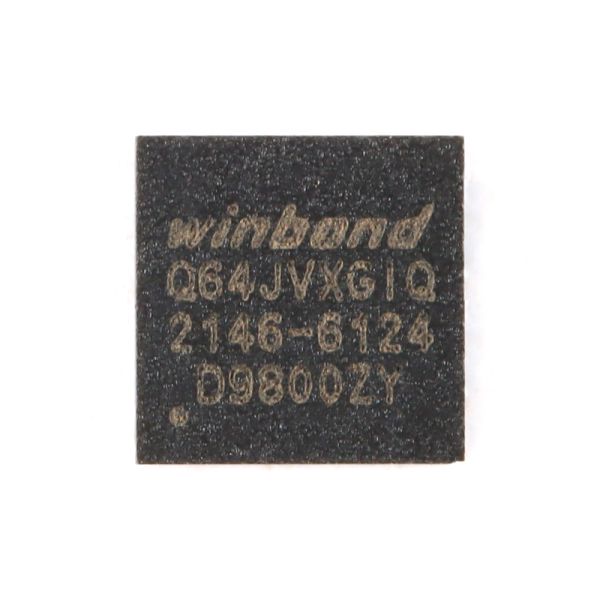

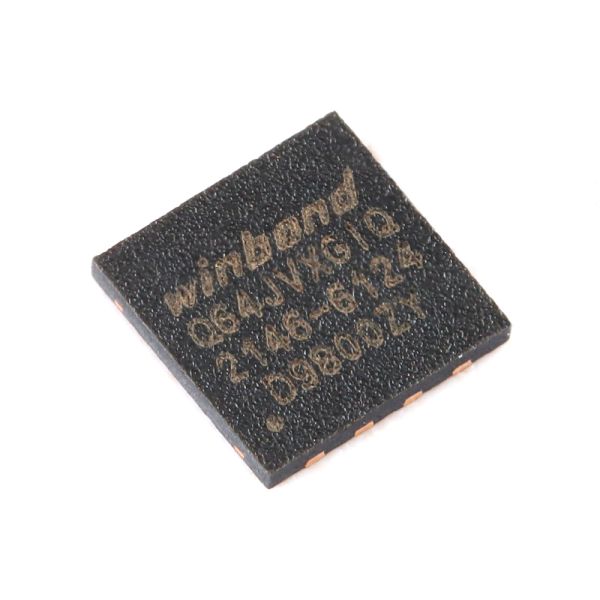

W25Q64JVXGIQ NOR Flash Memory technical diagram W25Q64JVXGIQ pin configuration diagram W25Q64JVXGIQ package dimensions W25Q64JVXGIQ application circuit
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
