MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter

Categories Power Management Chip
Brand Name: AEROSEMI
Model Number: MT1471
Certification: rohs
Place of Origin: CN
MOQ: 1
Price: consult with
Payment Terms: T/T,Western Union
Supply Ability: 100000
Delivery Time: 5-8days
Packaging Details: T/R
Chip type: DC/DC Converter
operating voltage: 4.5V~16V
Switching Frequency: 500kHz
Static Current (Iq): -
Output Control Terminals: 1
Operating temperature range (°C): -40℃~+85℃
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

MT1471 3A 4.5V-16V Input 500kHzSynchronous Step-Down Converter

MT1471 3A 4.5V-16V Input 500kHz Synchronous Step-Down Converter
High-efficiency synchronous step-down converter delivering 3A output current with 4.5V to 16V input voltage range and 500kHz switching frequency.
Key Features
  • High Efficiency: Up to 96%
  • 500kHz Frequency Operation
  • 3A Output Current
  • No Schottky Diode Required
  • 4.5V to 16V Input Voltage Range
  • 0.8V Reference Voltage
  • Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
  • Integrated Internal Compensation
  • Stable with Low ESR Ceramic Output Capacitors
  • Over Current Protection with Hiccup-Mode
  • Thermal Shutdown
  • Inrush Current Limit and Soft Start

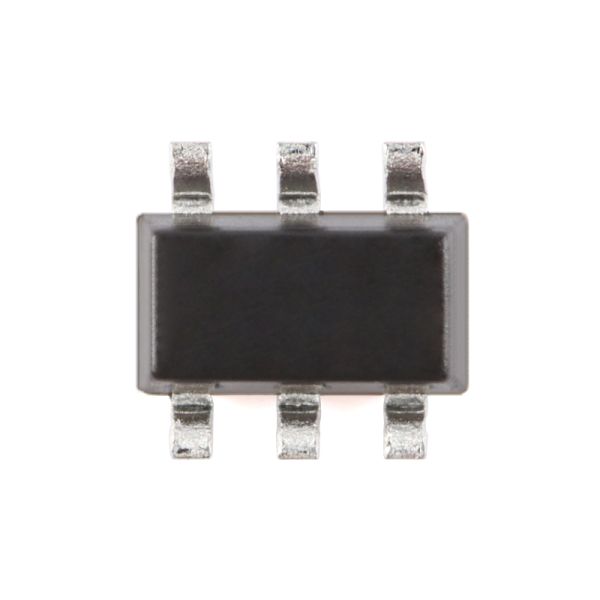

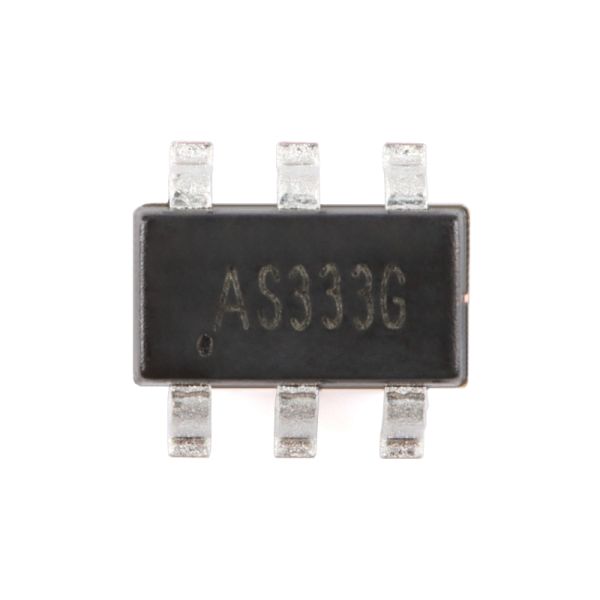

  • Available in SOT23-6 Package
  • -40°C to +85°C Temperature Range
Applications
  • Distributed Power Systems
  • Digital Set Top Boxes
  • Flat Panel Television and Monitors
  • Wireless and DSL Modems
  • Notebook Computers
Pin Configuration
Pin NamePin NumberDescription
GND1Analog ground pin
SW2Switching Pin
VIN3Power supply Pin
FB4Adjustable version feedback input. Connect FB to the center point of the external resistor divider
EN5Drive this pin to a logic-high to enable the IC. Drive to a logic-low to disable the IC and enter micro-power shutdown mode. For automatic start-up, connect EN to VIN using a 200kΩ resistor
BS6Bootstrap. A capacitor connected between SW and BS pins is required to form a floating supply across the high-side switch driver
Product Documentation
MT1471 technical diagram and specifications
MT1471 application circuit diagram
MT1471 performance characteristics graph
MT1471 package dimensions and layout
