1250mm Material Width, Steel Metal Corrugated Panel Forming Machine With Punching
|
... Material yield strength: 310Mpa Material thickness: 2.5-4.0mm Max. Feeding coil width: 1250mm Machine working speed: 4-8m//min Forming station: approx 18 stations Size of roll shaft: Ф120mm Roller material: GCr15, quenching HRC 58-62 ° Total power:...
Wuxi Techwell Machinery Co., Ltd
|
20 Forming Stations Corrugated Roll Forming Machine Metal Roofing Sheet Roll Forming Machine
|
...Forming Stations Corrugated Roll Forming Machine Metal Roofing Sheet Roll Forming Machine Parameter Material thickness 0.3-0.8mm Diameter of shaft(solid shaft) 70mm Roller 11steps Material of shaft (solid shaft) (high grade) 45# Steel, quenching and tempering treatment Material of roller 45# steel polished and coated with chrome HRC55-60° Reducer 8# cycloid reducer (high grade) Cutting hydraulic cutting after roll forming......
Henan WadJay Machinery Co.Ltd
|
Automatic Cold Roll Forming Machine , 25 Stations Floor Decking Forming Machine
|
Automatic high quality cold rolled metal Floor Deck Roll Forming Machine Product Description No. Item 1. Processing Material PPGI,GI 2. Feeding Width As drawing 3. Processing Thickness(mm) 0.6-1.5mm or as your Customized 4. Material of Rollers Cr12 5. ......
BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD
|
Omron Encoder Corrugated Steel Forming Machine 13 - 30 Roller Stations
|
...Corrugated Roll Forming Machine is a type of steel roll forming machine that is designed to create corrugated panels for roof, wall, and other applications. It features a width of 1000mm, a PLC control system, 13-30 roller stations, an Omron encoder, and a cutting accuracy of ±2mm. This machine is perfect for producing high-quality corrugated panels......
Hangzhou bluesteel machine co., ltd
|

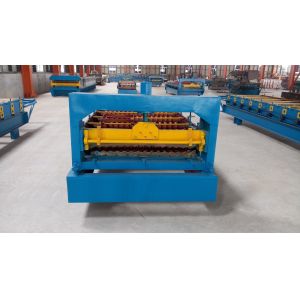

corrugated roof forming machine parts
|
corrugated roof forming machine parts 1. Machine Parameters Technical Data & Specification Productivity Corrugated sheet as the drawing Man Power Required One operator with one assinstant Set Up time 15 mins Working Hours per Day 8 to 16 Number of Stations 18 sets Thickness 0.3-0.8mm Main Power 7.5 KW Shipment Packing one 40 FT containe Forming Speed 20mtr./min(Not include shear) Line Direction Left to Right While Facing Operator Panel......
Shijiazhuang Aison Hardware Co Ltd
|
8 Kw Corrugated Roll Forming Machine , Roofing Sheet Metal Rolling Machine With PLC Control
|
...Corrugated Roofing Sheet Roll forming machine with PLC control WhatsApp/Wechat : +8615133711731 Mexico market Corrugated Roofing Sheet Roll forming machine with PLC control Description Specification Main moter power 5.5KW Hydraulic station power 4KW Hydraulic oil pump CB-E310 Sprocket P-25.4 Roller station......
ZhongHeng Machine Manufacture Co.,Ltd
|
Steel Silo PPGI Corrugated Roll Forming Machine For 0.7mm Roof Sheet
|
... quality. The raw materials can be galvalume steel coils, galvanized steel coils or aluminium coils. The applications ● Factory sheds ● Railway stations ● Ware houses ● Metro Stations ● Aircraft hangers ● Power Plants ● Work Shops ●...
Cangzhou Huachen Roll Forming Machinery Co., Ltd.
|
30m/Min 0.7mm Color Sheet 20 Stations Corrugated Panel Roll Forming Machine
|
...Corrugated Roof Panel Roll Forming Machine Technical parameter: Rolling Speed 0-30m/min Feeding width 1250mm Thickness 0.3-0.7mm Control System PLC Roller Stations about 20 stations Roller Material 45# forge steel, coated with chrome Motor Power 11kw main motor+3KW servo motor Hydraulic power 5.5kw Hydraulic Pressure 12Mpa Tolerance 1.5mm Power supplier 380V, 60HZ,3 phase Way Of Drive 1.2 inch single chain Machine...
Sussman Machinery(Wuxi) Co.,Ltd
|
380V Electrical Corrugated Roll Forming Machine For 850mm Width Roofing Sheet
|
...Corrugated Roof Panel Cold Roll Forming Machine roll former Manufacture Roll Forming Machine Used For Corrugate Specification Configurations Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. Control System PLC Delta Inverter Main Frame 250mm H-Beam Main Power 3.0 kw Pump Power 3.0 kw Power Supply 380V, 3-Phase,50Hz Forming...
Xinghe Roll Forming Machinery Co.,Ltd
|
High Efficiency 3Ph Corrugated Panel Making Machine Sheet Roll Former
|
...Corrugated Panel Making Machine Corrugated Sheet Roll Forming Machine 1. Description of Corrugated Sheet Roll Forming Machine YX18-840 Corrugated Sheet Roll Forming Machine is a common metal roll forming equipment that produces 840 type Corrugated Sheets, which are used for the cover on the Stacker. YX18-840 Corrugated Sheet Roll Forming Machine makes the corrugated......
Jiangsu Lebron Machinery Technology Co., Ltd.
|
