Transmission Nylon Wheel Bundled Conductor Stringing Blocks Pulley
|
...Wheel Bundled Conductor Stringing Blocks 750MM Overhead Conductor Stringing Blocks (Running out Blocks) are used for overhead transmisson line bundled conductors or OPGW stringing. The sheave is made in MC Nylon. 750MM Nylon Sheaves Conductor Stringing Blocks Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave......
Ningbo Suntech Power Machinery Tools Co.,Ltd.
|
660mm Nylon Wheel Bundled Conductor Stringing Block Pulley
|
...Wheel used for Large Diameter Bundled Conductor Stringing Block pulley Technical Data Item number Model Number of sheaves Rated load (kN) Weight (kg) Features 10121 SHD660 1 20 30 Rubber lined aluminium sheave 10122 SHS660 3 40 100 Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave 10123 SHW660 5 60 150 10124/10124A SHDN660 1 20 26 MC nylon sheave 10125 SHSLN660 3 40 86 Middle : MC nylon sheave Conductor......
Ningbo Lingkai Electric Power Equipment Co., Ltd.
|

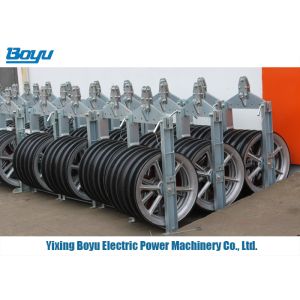

Five Wheel Bundled Conductor Pulley 120kN Aluminum 68mm
|
...Wheel Bundled Conductor Pulley For Four-bundle Conductor Five-wheel fixed pulley used for four-bundle conductors Five-wheel fixed pulley, it is used for four-bundle conductors. The cast aluminum wheel is mounted on the protected bearing. The throat is covered with neoprene. Use pins or swivel hooks to provide full security and facilities during assembly and disassembly operations. The characteristic is as follows Working Load: 40kN The wheel...
Yixing Boyu Electric Power Machinery Co.,LTD
|
508*110mm Three Nylon Wheels Bundled Conductor Pulley
|
...wheels diameter bundled conductor pulley for transmission line 508 mm stringing blocks 508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction. We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing. 1.Maximum suitable conductor ACSR400.Configuration: 2.Sheave......
SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD
|
30kg Single Wheel Bundled Conductor Pulley Overhead Line Accessories With 100mm Width
|
... Diameter: 660mm Wheel Width: 100mm Single Aluminum Wheels Galvanized Steel Frame With Rubber Covered or Without Rated Load: 20kN Conductor Size: under 500mm2 Description: Stringing blocks have different diameter were used to string different conductors....
Galaxy power industry limited
|
Transmission Line Stringing Tools Three Wheel Bundled Conductor Pulley Stringing Block
|
.../Cable/OPGW Bundled Conductor Pulley 5. Three Wheels Nylon Wheels 6. Galvanized Steel Frame 7. With Rubber Covered or Without 8. Rated Load: 80kN 9. Boyu Brand Specification: Single Wheel-Wheel material aluminum or Nylon, and it could be covered by rubber....
Changshu Xinya Machinery Manufacturing Co., Ltd.
|
SZ Series 130KN Cable Pulling Running Board For Four Bundle Conductors
|
...bundle conductors Applicatoin SZ Series Cable Pulling Running Board for Two Bundle Conductors are designed to avoid torsion strain accumulation during line stringing. Apply to tension stringing or mechanical traction stringing construction. Specificaitons Item No. Model Applicable Sheave Width(MM) Rated load(KN) Weight(KG) Feature 17231 SZ4A-13 100 130 139 Poising sheave......
Ningbo Newart Power Machinery Tools Co.,Ltd.
|
TYSHSN Bundled Stringing Pulley Three Wheel Nylon Conductor Pulley
|
... Bundled Three Wheel Nylon Conductor Pulley TYSHSN Three Nylon Conductor Pulleys The pulleys are suitable for string two or three bundled conductor lines. Model Wheel size Outside Dia. x Width (mm) Conductor size (mm2) Rated load (kN) Weight (kg) Wheel ......
Wuxi Hanyu power equipment co.,ltd
|
Three sheaves Stringing Blocks
|
... stringing blocks, also known as triple-sheave pulley blocks, are essential tools in various industries, particularly in construction, telecommunications, and electrical work. These devices consist of three pulleys (sheaves) mounted on a single frame,...
Jiangsu Net Power Equipment Technology Co., Ltd.
|
25KN Conductor Stringing Blocks Nylon Sheave Universal Stringing Block
|
.... 2. Apply to leading and pull large section conductor,Splicing sleeve can pass throught from the groove. 3. The Tandem sheaves stringing blocks are used for stringing conductors in the condition of big angle or corner on transmission line. Application:...
Ningbo Suntech Power Machinery Tools Co.,Ltd.
|
