| Categories | 1.2 GHz Antenna |
|---|---|
| Place of Origin: | Shenzhen, China. |
| Brand Name: | AMEISON |
| Model Number: | AMXP-1415S-D14L65X |
| Certification: | RoHS and REACH Compliant by Exemption |
| Frequency range（MHz）: | 1420～1530 |
| Polarization: | ±45º |
| Gain（dBi）: | 14 |
| half-power beam width（0°）: | H:65 V:14 |
| VSWR: | ≤1.5 |
| Maximum input power（W）: | 200 |
| Lightning protection: | DC Ground |
| Input connector type: | 4-7/16DIN Female |
| Price: | FOB SHENZHEN |
| Packaging Details: | bubble PP bag or EPE/inner box/master carton(safe export packaging) |
| Delivery Time: | 10 days |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability: | 80,000 Pieces per Month |
| MOQ: | 500 pcs per item |

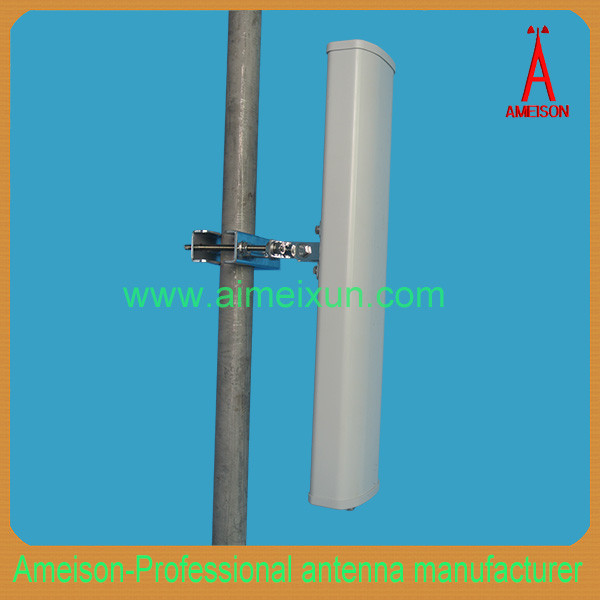

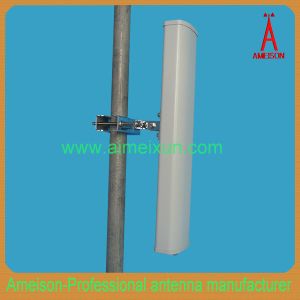

1420-1530MHz Directional Panel Antenna
AMXP-1415S-D14L65X
Feature:
High gain
Full day working
Optimized dimension
Dual polarization
Application:
1420-1530 MHz Wireless communication and data transmission system
AMXP-1415S-D14L65X Electrical Specifications | |
Frequency range | 1420～1530 |
Polarization | ±45º |
Gain(dBi) | 14 |
half-power beam width(0°) | H:65 V:14 |
Front-to-back ratio(dB) | ≥25 |
Input Impedance(Ω) | 50 |
Isolation between ports | ≥28dB |
Cross-polar ratio | ≥15dB@0º ≥10dB@+/-60º |
Sidelobe suppression for first sidelobe above horizon | 15 dB |
VSWR | ≤1.5 |
Maximum input power(W) | 200 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | 4-7/16DIN Female |
Dimensions-mm (Height/Width/Depth) | 800*280*80 |
Packing size(mm) | 850*320*160 |
Antenna weight (kg) | 6.3 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt(°) | 0～10 |
Operating temperature(°c) | -40～60 |
Rated Wind Velocity(m/s) | 60 |
Mounting hardware(mm) | ￠35～￠90 |
|
