| Categories | 1.2 GHz Antenna |
|---|---|
| Place of Origin: | Shenzhen, China. |
| Brand Name: | AMEISON |
| Model Number: | AMXW-1200-10B |
| Certification: | RoHS and REACH Compliant by Exemption |
| Frequency range（MHz）: | 1100-1300 |
| Bandwidth（MHz）: | 200 |
| Gain（dBi）: | 10 |
| VSWR: | ≤1.5 |
| Polarization: | Vertical |
| Lightning protection: | DC Ground |
| Input connector type: | N Male or Requested |
| Mounting hardware（mm）: | ￠35-￠50 |
| Price: | FOB SHENZHEN |
| Packaging Details: | bubble PP bag or EPE/inner box/master carton(safe export packaging) |
| Delivery Time: | 10 days |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,PayPal |
| Supply Ability: | 80,000 Pieces per Month |
| MOQ: | 500 pcs per item |

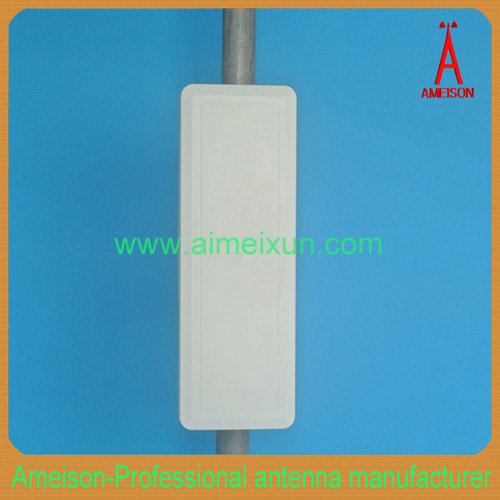

Ameison Flat Panel Antenna
Factory price
Superior performance
Mounting kits included
Waterproof heavy-duty ABS redome
1100-1300MHz Directional Wall Mount Antenna
AMXW-1200-10B
Feature:
High gain,strong anti-interference ability
Good defense system
Full day working
Exquisite appearance
Optimized dimension
Application:
1.2Gsystem
Wireless communication and data transmission system
AMXW-1200-10B Electrical Specifications | |
Frequency range(MHz) | 1100-1300 |
Bandwidth(MHz) | 200 |
Gain(dBi) | 10 |
half-power beam width(°) | H:65 V:40 |
VSWR | ≤1.5 |
Input Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum input power(W) | 50 |
Lightning protection | DC Ground |
Input connector type | N Male or Requested |
Mechanical Specifications | |
Dimensions-mm (Height/Width/Depth) | 225*195*47 |
Antenna weight(kg) | 0.45 |
Operating temperature(°c) | -40～60 |
Rated Wind Velocity(m/s) | 60 |
Radome material | ABS |
Radome color | white |
Mounting hardware(mm) | ￠35-￠50 |
|
