| Categories | Digital Pressure Transmitter |
|---|---|
| Brand Name: | Mkfale |
| Model Number: | SMAPB8010 |
| Place of Origin: | CHINA |
| MOQ: | 10PCS |
| Price: | Negotiate |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000PCS |
| Delivery Time: | 5-30days |
| Packaging Details: | Box |
| Certification: | ISO9001 |
| Proof Pressure: | 150 % F S |
| Operating Temp: | - 20 to +85 ℃ |
| Process Connection: | 1/4NPT male or 1/8NPT male |
| Wetted Parts: | SS304 |
| Housing Material: | Plastic |
| Power Consume: | < 0.5W ( 24VDC ) |
| Company Info. |
| Ningbo Sanmin Import And Export Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

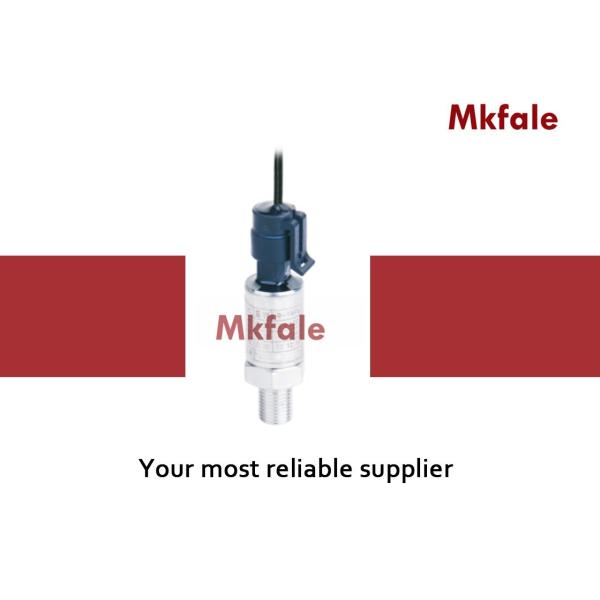

High Precision Digital Pressure Transmitter SMAPB8010 Series With Wide Measuring Range
Technical Specification Table
SMAPB SERIES PRESSURE TRANSMITTER | SMAPB8010 |
| Accuracy | 0.5%F S,1%F S,5%F S(including linearity.Hysteresis and repeatability) |
| Measuring Range | 0... 1bar to 0... 25bar |
| Response time | ≤10ms |
| Power supply | 24VDC (or 12 to 36VDC) |
| Output | 4 to 20mA 2-wires |
| Load(Ω) | ＜(u-12) / 0.02A |
| Proof pressure | 150%F S |
| Burst pressure | 300%F S |
| Operating Temp | -20 to +85℃ |
| Storing Temp | -40 to +125℃ |
| Process connection | 1/4NPT male or 1/8NPT male |
| Wetted parts | SS304 |
| Housing material | Plastic |
| Power Consume | <0.5W(24VDC) |
| Weight | 110g |
Why choose us
1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee
FAQ
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special
customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include
Flow meter,Water meter,Manometer,Pressure ,Temperature,Level
transimitter and parts.and industry Valve for water,anticorrosion
fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you
can give me the information ,
then we can give you an estimated price is for reference only . We
can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give
advise about details.
|
