DL 090 Sealed Sumitomo Automotive Connectors / Ignition Coil Connector 6195-0009

Categories	Sumitomo Automotive Connectors
Brand Name:	YBADDVANCE
Model Number:	6195-0009
Certification:	ISO9001
Place of Origin:	China(mainland)
MOQ:	100 units
Price:	Negotiation
Payment Terms:	T/T, Western Union,PayPal , credit card
Supply Ability:	50,000 units/moth
Delivery Time:	About 5-8 work days
Packaging Details:	Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer
P/N:	6195-0009
Color:	Grey
Feature:	Waterproof
Way:	3 hole
Gender:	Female and Male
Type:	Sumitomo connector
Martial:	PBT/PA66
HS code:	8536909000
WARRANTY:	1 year
PLACE OF ORIGIN:	Shaanxi,China

Contact Now

Add to Cart

Company Info.

Xi'An YingBao Auto Parts Co.,Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

3 Pin DL 090 Sealed Series Sumitomo Ignition Coli Connector 6195-0009

Description

3 Pin DL 090 Sealed Series Sumitomo Ignition Coli Connector

The connector for N issan M azda RX8 Ignition Coil

1 Row , 3 way

Including : 3 Pin Housing Connector+Secondary Lock+3 Wire Terminals+3 Wire Seals

Length :28mm

Width : 27.3mm

Height : 18.9 mm

Mating part : 6195-0012

Fits wire : 18 -22 AWG

The connectors have a maximum current capacity of 10 Amps

If you need more, please contact with us to get cheaper price.

Our product is high quality with reasonal price

Specification

Item name	3 Pin DL 090 Sealed Series Sumitomo Ignition Coli Connector 6195-0009
P/N	6195-0009
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	3 pin Sumitomo Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	3 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles

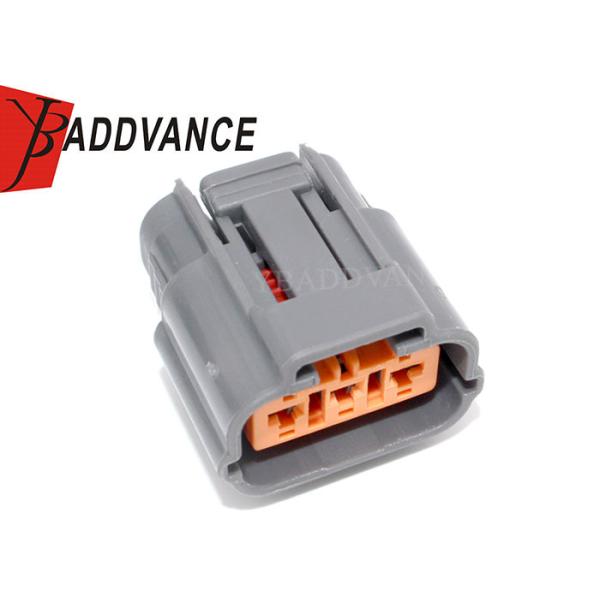

Product Picture Details
