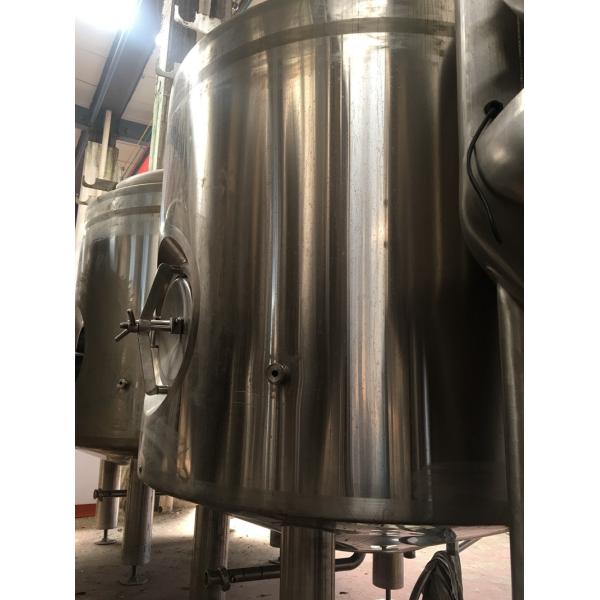

50T Industrial Beer Fermentation Equipment Big Scale Fermentation Tank

50T Industrial Beer Fermentation Equipment Big Scale Fermentation Tank

CGET, over 20 years brewery equipment manufacturing history.

50t fermentation tank

jacketed tank

conical tank

glycol cooling

Specification Details:

1. Minimum net work volume of 50T + 25% minimum free space at the head of the tank. -

2. 60º conical cylinder fermentation tank -

3. Preferred working pressure: 1.5 bar minimum. - Pressure test with water and gas at 3 bar minimum.. -

4. Manhole in top / without shadows to the CIP cleaning. -

5. Interior finish SUS304 2B with internal mechanical polishing of minimum welds of Ra. - 50 mm high density polyurethane insulation minimum.

6. Independent Cooling jackets around the cylinder and bottom cone

7. Minimum working pressure of the cooling jackets 1.5 bar, minimum pressure test 3 bar. -

8. PRVP valve in Dish head, tared to the maximum working pressure of the tank -

9. Rotating arm for CIP cleaning of the interior, equipped with 360º ball and Butterfly Sanitary Valve. -

10. Rotary arm for pressure control equipped with "tee" for Membrane Pressure Gauge-SS304 (Stainless Steel Diaphragm Gauge), adjustable (spunding) pressure relief valve and final butterfly valve. -

11. Tri clamp Dry Hop Port 4 "in Top with End Cap - Tri Clamp + Sanitary sample valve. - Tri Clamp + Stainless steel sphere thermometer SUS304. - Tri Clamp + Thermowell and temperature probe PTC 100 - Tri Clamp port with carbonation stone + ¼ "Check valve + small ball valve - Rotating racking arm and port on cone with butterfly valve with sliding seal without leakage. -

12. Tri clamp total discharge arm with butterfly valve - Liquid livel indicator with flexible tube and sanitary ball valve between the CIP arm and the total discharge arm of the cone.

dehui established in 1997,headquartered in Jinan,Shandong provide,registered capital 52,300,000,with more than 800 staff.The company is a High-tech enterprise on the fermentation field,and the productive modern service enterprise on the fermentation field.Provide the customers with the systemic solution of non-standard technical renewal on the fermentation filed,is committed to the First Person on the fermentation service outsourcing field!

Company provides fermentation project technology service to enterprises in the area of Alcohol, condiment, biopharmacy and any other bio-fermenting lines.Service is including technology proposal design,a complete set of equipment,application project installation,training technicians,financing service etc five system links.

Our products have been exported to many countries in the world,and our company has established long-term and friendly cooperative relations with Russia, the United States, Canada, Britain, Australia, New Zealand, Kenya, Moldova, Israel, Singapore, Philippines, India, Holland and many other countries and regions,awarding high praise from our customers.
