2000L Beer Fermentation Equipment Commercial Beer Fermenter Touch Screen Control

2000L Beer Fermentation Equipment Commercial Beer Fermenter Touch Screen Control

1. Exterior of tank 2B Plate, interior of tank Mechanical polish, inner body polishing ratio ≦0.6μm;

2. Design pressure 30 psi , using pressure:15psi

3. Interior shell: 304 stainless steel, thickness 3mm; Exterior shell thickness 2mm;

4. Effective volume: 2000l; total volume: 2700l; 60 degree cone bottom;

5. Racking Arm and discharge port with butterfly valve and fittings;

6. Side manhole; With an extra top manway.

7. Dual zone dimple cooling jacket with glycol inlet and outlet;

8. Polyurethane insulation thickness 80mm

9. CIP arm and spray ball

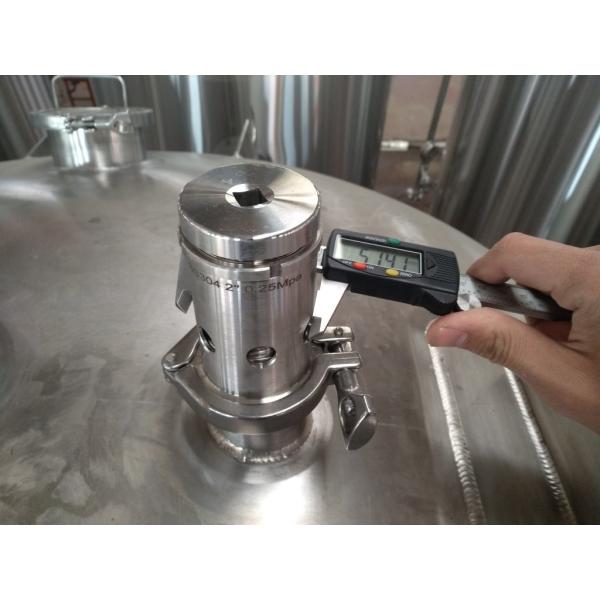

10. Relief valve, pressure regulating valve

11. Pressure gauge & Thermometer & Sample valve.

12. Four legs with brace and adjustable bolt;

13. With necessary fittings and valves

14. For details, please see tank drawing.

Product specification

Beer Brewery Machine system Overview (Can be customized )
Architecture	Main Components
Milling System	Malt Mill
Brwehouse	Mash Tun, lauter tun, boiling, whirlpool
Fermentation unit	Fermentation tank
	Bright beer tank(optional)
Cooling unit	Ice water tank
	Chiller
Cleaning unit	Pump
	Alkaline liquid tank
	Sterilization tank
Control unit	Touch screen
	Control cabinet
	CE certified electric fittings
	Speed control
	Temp display and control

Small Sized Beer Fermenter Copper Beer Fermenter 1000L Beer Fermenter 2000L Beer Fermenter

Material SUS304 or copper Copper SUS304 SUS304

Capacity Custom-design Custom-design

Gross capacity 1000L+25%

effective capacity 1000L

Gross capacity 2000L+25%

effective capacity 2000L

Outer container Material SUS304 fully welded Copper fully welded SUS304 fully welded SUS304 fully welded

Thickness 2mm

Inner container Material SUS304 fully welded

Thickness 3mm

Insulation Material Polyurethane

Thickness 80mm

Function Wort fermentation or beer ripening

Polishing accuracy of the inner container 0.4-0.6μm .No dead ends

Cooling jacket Dimple metal plate(for cone and container both)

System composition:

1. With strict water / air pressure test,air pressure test for 48 hours before delivery.

2. Cooling jacket with strict water / air pressure test.

3. Dished head, thickness is 2.5mm, Cone angle can be custom-design.

4. Sanitary top pressure manhole on top.

5. 360°full coverage CIP cleaning arm.

6. Carbon dioxide exhaust arm with butterfly valve.

7. Mechanical pressure regulating valve.

8. Liquid level gauge with soft pipe.
