| Categories | Special Purpose Trucks |
|---|---|
| Brand Name: | Dongfeng |
| Model Number: | DFL1311 |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Price: | USD 76000/UNIT |
| Payment Terms: | T/T |
| Supply Ability: | 50 units per month |
| Delivery Time: | 30 working days |
| Packaging Details: | in nude |
| Drive mode: | 6*4 LHD RHD |
| Engine: | Cummins |
| Power: | 245 hp |
| Emission: | Euro 3 |
| Wheel base (mm): | 4350+1300 |
| overall dimension: | 9600×2500×3150 mm |

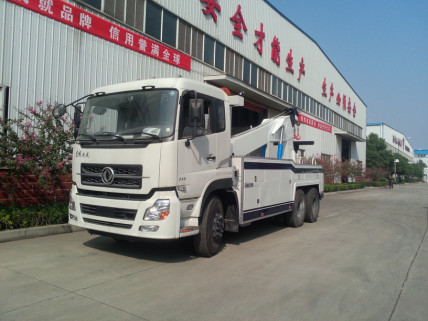

Dongfeng Wrecker Truck
| Truck | Drive mode | 6×4 | |
| Chassis | DFL1311 | ||
| Engine | Model | Cummins C245 33 | |
| Type | 136/2500 | ||
| Power/Displacement(Kw/ml) | 180KW/8300 | ||
| Type of fuel | Diesel | ||
| Oil Consumption(km/L) | 22.4 | ||
| Tyre | Size | 11.00R20 | |
| Gear Box | Mechanical 6 speed gear box | ||
| Steering | Power assist steering | ||
| Air conditioner | A/C | ||
| Dimensions | Overall dimension (mm) | 9600×2500×3150 | |
| Wheel base (mm) | 4350+1300 | ||
| Front/Rear tread(mm) | 1986/1860 | ||
| Performance | Max. speed(Km/h) | 90 | |
| App./Dep. angel (°) | 20/15 | ||
| Max. gradability (%) | 30 | ||
| Min.turning diameter(m) | 18 | ||
| Min.ground clearance(mm) | 240 | ||
| Mass | Payload (Kg) | 22000 | |
| Curb weight(Kg) | 19305 | ||
| G.V.W (Kg) | 35000 | ||
| Axle Loading Weight(Kg) | 7000/18000 | ||
| Special Device | Lifting Structure | Max lifting capacity(kg)(Choosing) | 16000 |
| Max lifting high(mm)(Choosing) | 9800 | ||
| Lift-hoist telescope | 3000 | ||
| Winch rating pulling capacity(kg) | 5000 *2 | ||
| Length of steel(m) | 45 | ||
| Hoisting Structure | Max under-hoistuseful length(mm) | 2800 | |
| Rating under-hoisting capacity(kg) | 4990 | ||
| Fully extended max under-hoisting | 3850 | ||
| Rating under-pulling capacity(kg) | 25000 | ||
| Other Configuration | 1. Lifting Capacity: 55000kg. Suspension (mm) : 0 and wheelbase
(mm) : 2340239 4350 + 1350, 4350 + 1300 one-to-one correspondence;
Double winding (20 t) with the 3.1 M long (arm), hydraulic leg. | ||
|
