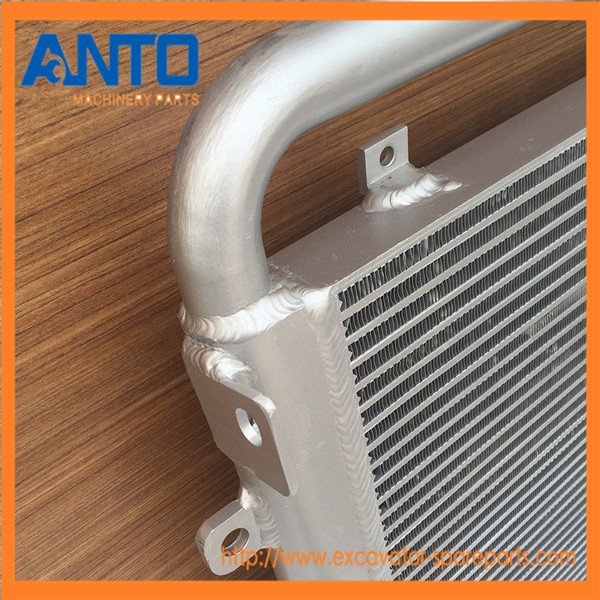

Hydraulic Oil Cooler Excavator Engine Parts 20Y-03-31121 PC200-7 PC210LC-7 PC210LC-7K

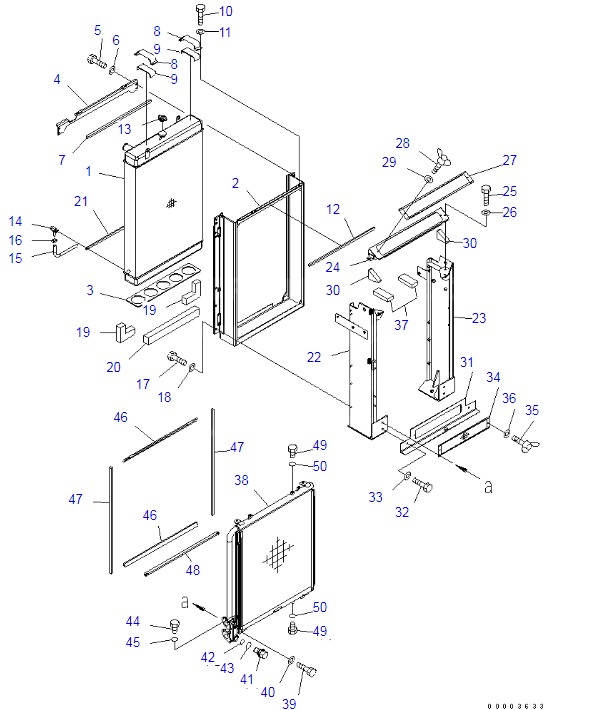

1.20Y-03-32110[1]- RADIATOR CORE ASS'Y Komatsu ["SN: 40001-UP"] analogs:[] Weight: 84.4 kg.
2.20Y-03-32120[1]- FRAME Komatsu China ["SN: 40001-UP"] analogs:[]
3.20Y-03-24280[1]- SHEET Komatsu China ["SN: 40001-UP"] analogs:[]
4.20Y-03-32130[2]- BRACKET Komatsu China ["SN: 40001-UP"] analogs:[]
5.01010-80816[4]- BOLT Komatsu ["SN: 40001-UP"] analogs:["0101050816", "801015084"] Weight: 0.022 kg.
6.01643-30823[4]- WASHER Komatsu ["SN: 40001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] Weight: 0.004 kg.
7.20Y-03-32280[1]- SEAL Komatsu China ["SN: 40001-UP"] analogs:[]
8.20Y-03-24250[2]- BRACKET Komatsu China ["SN: 40001-UP"] analogs:[]
9.203-03-65770[2]- SHEET Komatsu China ["SN: 40001-UP"] analogs:[]
10.01010-80820[7]- BOLT Komatsu ["SN: 40001-UP"] analogs:["801014067", "0101050820", "801015086"] Weight: 0.013 kg.
12.20Y-03-32270[1]- SEAL Komatsu China ["SN: 40001-UP"] analogs:[]
13.20Y-03-22110[1]- CAP Komatsu OEM ["SN: 40001-UP"] analogs:[] Weight: 0.25 kg.
14.07730-50004[1]- VALVE Komatsu ["SN: 40001-UP"] analogs:["0773030004"] Weight: 0.222 kg.
15.195-03-13180[1]- HOSE Komatsu ["SN: 40001-UP"] analogs:["1950316110", "1950313190"] Weight: 0.08 kg.
16.07281-00197[1]- CLAMP Komatsu ["SN: 40001-UP"] analogs:["1950313250"] Weight: 0.015 kg.
17.01010-81035[10]- BOLT Komatsu ["SN: 40001-UP"] analogs:["801015556", "01010D1035", "0101051035"] Weight: 0.033 kg.
18.01643-31032[10]- WASHER Komatsu ["SN: 40001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] Weight: 0.054 kg.
19.20Y-03-32240[2]- SHEET Komatsu China ["SN: 40001-UP"] analogs:[]
20.20Y-03-32230[1]- SEAL Komatsu China ["SN: 40001-UP"] analogs:[]
22.20Y-03-32140[1]- FRAME Komatsu China ["SN: 40001-UP"] analogs:[]
23.20Y-03-32150[1]- FRAME Komatsu China ["SN: 40001-UP"] analogs:[]
24.20Y-03-32160[1]- COVER Komatsu China ["SN: 40001-UP"] analogs:[]
25.01010-81025[1]- BOLT Komatsu ["SN: 40001-UP"] analogs:["0101051025", "0101651025", "801015109"] Weight: 0.36 kg.
27.20Y-03-32170[1]- NET Komatsu China ["SN: 40001-UP"] analogs:[]
28.01434-10616[2]- BOLT¤ WING Komatsu ["SN: 40001-UP"] analogs:[] Weight: 0.02 kg.
29.01643-30623[2]- WASHER Komatsu ["SN: 40001-UP"] analogs:["0164370623"] Weight: 0.002 kg.
30.20Y-03-32260[2]- SHEET Komatsu China ["SN: 40001-UP"] analogs:[]
31.20Y-03-31181[1]- PLATE Komatsu China ["SN: 40001-UP"] analogs:[]
34.20Y-03-31420[1]- NET Komatsu China ["SN: 40001-UP"] analogs:[]
37.20Y-03-32250[2]- SEAL Komatsu China ["SN: 40001-UP"] analogs:[]
38.20Y-03-31121[1]- OIL COOLER ASS'Y Komatsu OEM ["SN: 40001-UP"] analogs:[] Weight: 42 kg.
39.01010-81030[4]- BOLT Komatsu OEM ["SN: 40001-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"] Weight: 0.03 kg.
41.20Y-03-31480[1]- VALVE ASS'Y Komatsu ["SN: 40001-UP"] analogs:[] Weight: 0.75 kg.
42.07000-12020[1]- O-RING Komatsu ["SN: 40001-UP"] analogs:[] Weight: 0.001 kg.
43.07002-13034[1]- O-RING Komatsu China ["SN: 40001-UP"] analogs:["0700203034"] Weight: 0.005 kg.
44.07040-11812[1]- PLUG Komatsu ["SN: 40001-UP"] analogs:["0704001812"] Weight: 0.07 kg.
45.07002-11823[1]- O-RING Komatsu ["SN: 40001-UP"] analogs:["0700201823"] Weight: 0.36 kg.
46.22U-03-21740[2]- SHEET Komatsu China ["SN: 40001-UP"] analogs:[]
47.20Y-03-31290[2]- SEAL Komatsu China ["SN: 40001-UP"] analogs:[]
48.22U-03-21760[1]- SHEET Komatsu China ["SN: 40001-UP"] analogs:[]
49.07040-11409[2]- PLUG Komatsu ["SN: 40001-UP"] analogs:[] Weight: 0.033 kg.
50.07002-11423[2]- O-RING Komatsu China ["SN: 40001-UP"] analogs:["0700201423"] Weight: 0.001 kg
