Fully Automatic Sandwich Panel Production Line / Corrugated Cardboard Machine

Full automatic EPS Rock wool sandwich panel roll forming machine For Building

Main parameters

No.		main parameter of Sandwich panel forming machine line
1		Suitable to process	Color steel plate
2		Width of the plate	1000&1200mm
3		Rollers	17-44rows
4		Dimensions	38.0*2.25*2.5m
5		Power	30kw
6		Thickness of the plate	0.3-0.8mm
7		Productivity	2-6m/min
8		Diameter of the roller	Φ90mm
9		Weight	About 15 T
10		Voltage	380V 50Hz 3phases
11		Material of the cutting plate	Cr12
12		Processing precision	Within 1.00mm
13		Control system	PLC control

1. Technical parameters

sandwich panel standards
Length	Min cut length: 3 m Max stacker length: 15 m
raw material standards
Coil thickness	0.4~0.6mm (the coil surface should be flat, no arch and the others surface trouble.)
Material coil yield strength	235MPa
Material coil max width	see detailed profile drawings.
Material coil max weight	5 T
Material coil inner diameter	Φ508,Φ610 mm
EPS core material
density	≥18Kg/m3
straight rate	≤1mm/m
arch degree	≤3mm/m
panel surface	shoule be flat no flat degree is ≤1.5mm/m,
sandwich panel length	longer than 5 meters
wool material
fiber length	≥100mm
cubage density	≥100Kg/m3
sandwich panel length	≥3 meters

2. Main parameters

No.	main parameter of roll forming machine
1	suitable material	Color Steel plate, galvanized sheet
2	Width of the plate	1200mm
	effective surface	950/960/970/980mm
3	Rows of rollers	14 rows
4	Size	7.5*1.3*1.2m
5	Total power	4kw
6	Thickness of raw material	0.3-0.8mm
7	Productivity	8-10m/min
8	diameter of shaft	80mm
9	Weight	About 4T
10	Voltage	380V 50Hz 3phases

3. Payment Term and Condition:

1	Payment Term	30% T/T in advance, 70% T/T before shipment
2	Delivery Time	Within 60 Working Days after receipt of the down payment
3	Warranty	1 year and life-long maintenance
4	Installation and commissioning	Our engineer will go to make installation there, Buyer pay our engineer 60 USD /day, and provide accommodation, Visa and the round-trip ticket fee

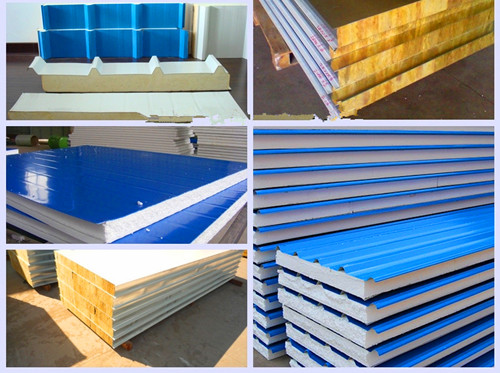

Product Pictures

we can manufacture contains: roofing sheet machine, CZ purlin machine, light steel gauge machine, metal embossing machine, door system forming machine, ceiling system machine, pipe welding machine, slitting and cut to length machines, rack system machines, floor decking machine, stone coated steel roofing sheet machine as so on. The company has passed ISO9001 quality control system certification, European CE safety certification, North American CAS electric certification, and has instill the concept “time is money, quality is life, customer is the king” into the mind of every employees. We strictly control quality while improving production efficiency and shortening delivery time. All the machines produced by us need full line test before leaving the factory, we never send problematic equipment to customers. We have full experience of export and know well about the different needs of customers from both developing countries and developed countries, we provided many satisfactory machine proposals to customers in the past years. Nowadays our machines have already been exported to more than 150 countries and we established long-term and stable cooperative relationship with our clients.
