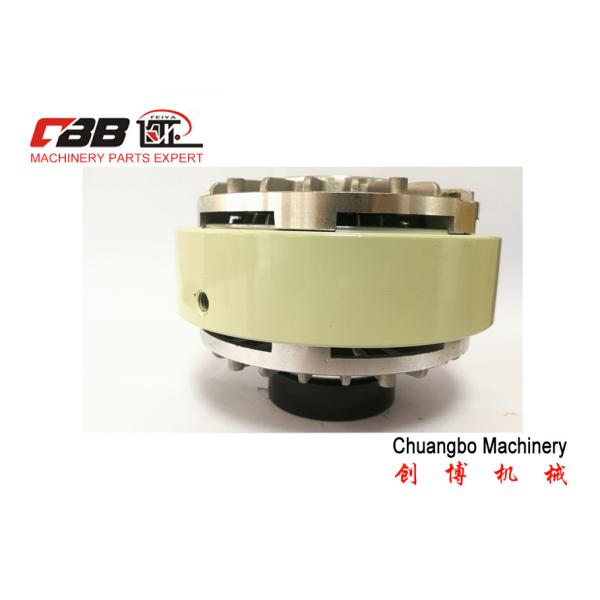

Cellular FL100K 100NM 10kg Magnetic Powder Clutch

Cellular Type FL100K Electromagnetic Powder Clutch 100NM Torque 10kg Tension

Introduction

Magnetic powder clutch FL100K is a special type of electromagnetic clutch which does not use friction plates. Instead, it uses powder of magnetically susceptible material (typically stainless steel) to mechanically link an otherwise free wheeling disc attached to one shaft. When a magnetic field is applied to the powder, it forms chains connecting the disc and rotor. The strength of the chains depends on the strength of the magnetic field. It is widely used in unwinding and rewinding tension control in papermaking, printing, packaging, plastics, rubber, glass, textile, printing and dyeing, wire and cable, metallurgical and other machine and industrial. We will be reliable powder brake supplier for you.

Details for clutch

Parameters

Application

Powder brake is widely used in printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery, coil machinery, wire winding machines, strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, steel extruders, CNC lathes, specialized machinery and so on.

Features

1. The transmission torque is linear controlled by the magnetizing current. The torque can get controlled within large range of 5%-100% rated torque.
2. The friction part will generate heat inevitably or even destroyed when it keep continuous sliding. But this device has a complete cooling set, it will not generate a lot of heat after long time running and it has a long service life.
3. Under control of automatic tension controller, the torque of the powder brake can controlled very precisely, will eliminate any human mistake.

Advantages

1. Fast response. Dry design means instant reaction to commands.

2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions.

3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier.

4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed.

5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life.

6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications.

Why choose CBB Chuangbo

A. Long history and biggest machine spare parts in East China

Established in 1995, CBB Chuangbo has been in machinery parts for 25 years, now we are biggest manufacturer of machinery parts in East China.

B. Hight quality material

High quality of steel shell for the brake and imported powder for longer life of the brake.

C. Cooling treatment

Insider there is a small cooling fan inside the brake, cooling the tempreture and make the brake stable.

D. Quality control

We have the quality control system during the whole production fromthe very beginning to the end and our principle is to make sure each shaft is qualified.

    Ruian Chuangbo Machinery Co., Ltd. established in 1995, is specialized in manufacturing of machinery parts.

    The company has advanced production level and scientific research equipment, the products are matched with printing, packaging, plastics, paper, textile, pharmaceutical machinery and other industries. Our main products include aluminum guide roller series, curved roller series, air expand shaft series, centrifugal fan series, torque electric motor and controller series, frequency motor series, magnetic brake / clutch and tension controller serious , pneumatic diaphragm pump serious and so on.The company has been granted with independent import and export rights, the products sold to allover the country and export to more than thirty countries and regions, such as: India, Pakistan, Israel, Russia, Spain and so on.

In 2015, the company was recognized as “Wenzhou Science and Technology (Innovative) Enterprise; in 2016, it was recognized as “Zhejiang Science and Technology SMEs”; in 2017, it was recognized as a scaled enterprise in Ruian; in 2018, it was recognized as “National High-Tech enterprise” and also awarded Wenzhou Technology R&D Center Enterprise; in 2019, company listed in Dutch Caribbean Securities.

    Company now is the member of the National Printing Machinery Standardization Technical Committee, and has 3 invention patents and 33 utility model patents.

    The company insists on the concept as "Branding Chuangbo, Satisfying customers and innovating constantly", implements ISO9001 standards and striving for excellence to ensure the product as leading ranks for domestic and international markets, provide the markets with stable quality, reasonable price, highly quality and newly competitive products. The company will continue to innovation to meet higher requirements and is willing to cooperate sincerely with all friends at home and abroad by high-quality products.
