Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Categories Door Air Curtains
Brand Name: NANYOO
Model Number: FM-1215A
Certification: CE/CB/CCC
Place of Origin: China
MOQ: 1 unit
Price: Negotiated
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 15000 pcs per month
Delivery Time: 20-30 work days
Packaging Details: Carton With Foam Protection
Type Fan: Closs Flow Fan
Name: Door Air Curtains
Mounting: Door / Wall / Window Mount or other
Operating voltage: 110V-220V / 50HZ & 60HZ
Application: Commercial, Shopping Malls, Airports, Restaurant, Warehouses
Color: White Color
Diameter of Impeller: 120
Input power: 250 W
Size: 0.9m / 1.0m / 1.2m /1.5m
Mounting Height: 2.3-3 m
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

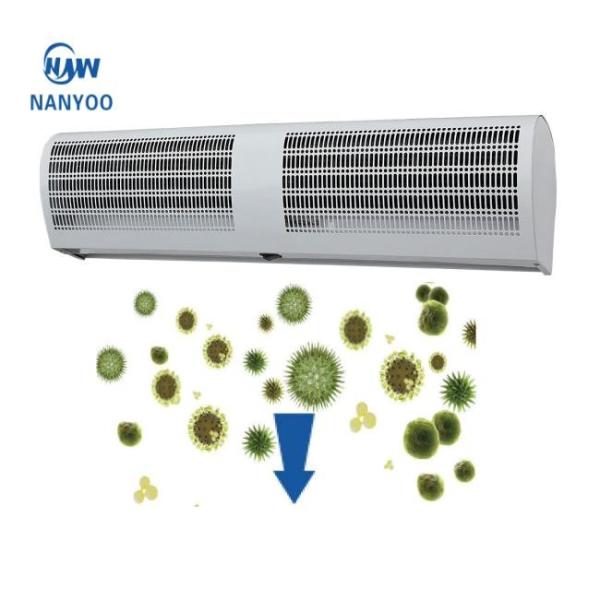

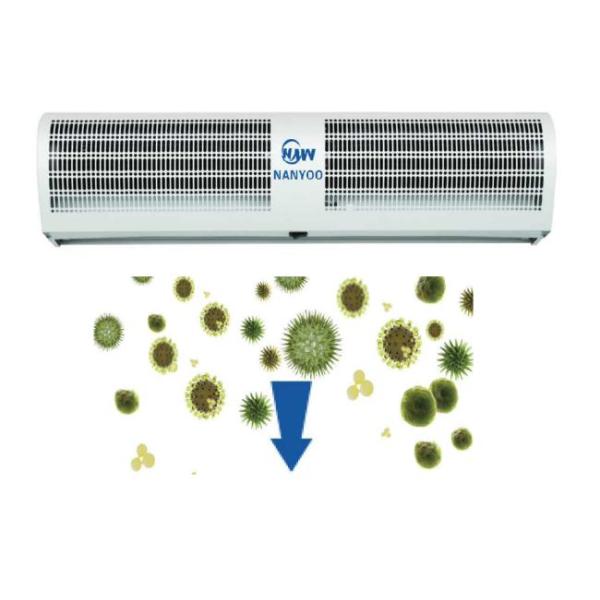

Hospital Fresh Air 1747CFM Cross Flow Indoor Air Curtains Easy To Install

Closs Flow Door Air Curtains With High Air Flow Suitable For Indoor Hospital / Keeping Fresh Air


Voltage / Frequency 220 - 240V / 50Hz or 110V / 60HZ , 110V / 50HZ , 220V / 60HZ are all available

ModelDiameter of ImpellerInput PowerAir
Velocity
Air VolumeNoiseNet
Weight
Gross
Weight
Unit SizeCarton SizeMounting
Height
(mm)(W)(m/s)(m³/h)/CFM(dB)(KG)(KG)(mm)(mm)(m)
FM-1209A-2(Y)120150111780/1047≤4510.212.5900×220×195940×265×2202.3-3
FM-1210A-2(Y)120150111980/1164≤4612.313.81000×220×1951040×265×2202.3-3
FM-1212A-2(Y)120180112370/1394≤4813.715.51200×220×1951240×265×2202.3-3
FM-1215A-2(Y)120250112970/1747≤4916.318.51500×220×1951540×265×2202.3-3

INSTALLATION DIAGRAM

Step 1 Remover mounting plate from air curtain fuselage


Step 2 If installed on concrete and other hard wallk , need postion the mounting fix screw for

the mounting plate on the wall and then fix with M8 expansion screw , the exposed part of

the expansion screw is ensured to be in 13-15 mm .


Step 3 If mounted on a wooden board or soft , use STS tapping screw , Fix the mounting plate ot the wall


Step 4 Installation method of glass door

1 / Use strong nail - free glue direct smear to installation , Solidity , Affordable and artistic


2 / Make a strut horizontally for fixting the gusset plate of the air curtain machine


Door Air Curtains Working Principle


PRODUCT PARAMETERS


Company Profile


Foshan Nanhai Nanyang Electric Appliance& Motor Co.,Ltd (NANYOO)
NANYOO was set up in March 1987. Over more than three decades of development since its founded, it has become a professional scientific and technological enterprise which specializes in the research and development, production and sales of air curtain, ventilator and fresh air ventilation products.
NANYOO has a large-scale processing and testing equipment more than 100 sets. The company has passed the iso9001:2000 international quality system management certification, occupational health and safety management system certification, national compulsory certification CCC certification. Also, we have the international certification like CE, CB, SASO and ROHS environmental protection report.
