| Brand Name: | OEM |
| Model Number: | OEM |
| Certification: | ISO9001 |
| Place of Origin: | china |
| MOQ: | 1Pair |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram,Paypal |
| Supply Ability: | 50000Unit/Month |
| Delivery Time: | 3-6 work days |
| Packaging Details: | pvc box+outer carton |
| Product name: | fiber optic transceiver |
| Fiber type: | Single Fiber Single Mode |
| Interface: | LC |
| Wavelength: | 1310/1550nm |
| Distance: | 100m to 120km |
| Data rate: | 1.25G |
| Operating temperature: | Commerical:0 to 70 °C Industrial:-40 to 85 °C |
| Supply Voltage: | 3.13V~3.47V |
| Warranty: | 3 Years |
| Application: | Gigabit Ethernet,Fiber Channel,Switch to Switch interface |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD. |
| Verified Supplier |
| View Contact Details |
| Product List |

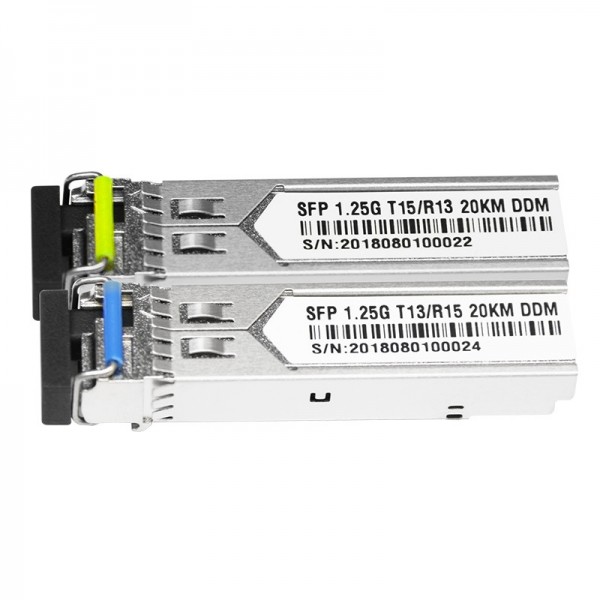

Bidirectional Fiber Optic Transceiver 1.25G Lc Connector 20Km Single Fiber Sfp Module
Description
SFP-BIDI transceivers are high performance, cost effective modules
supporting dual data-rate of 1.25Gbps/1.0625Gbps and
120km transmission distance with SMF.The transceiver consists of
three sections: a DFB laser transmitter, a PIN photodiode
integrated with a trans-impedance preamplifier (TIA) and MCU
control unit. All modules satisfy class I laser safety
requirements.
The transceivers are compatible with SFP Multi-Source Agreement
(MSA) and SFF-8472. For further information, please refer to SFP
MSA.
Feature
Absolute Maximum Ratings
| Parameter | Symbol | Min. | Max. | Unit | Note |
| Supply Voltage | Vcc | -0.5 | 4.0 | V | |
| Storage Temperature | -40 | 85 | °C | ||
| Relative Humidity | 5 | 85 | % |
Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.
General Operating Characteristics
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
Data Rate  | 1250 | Mb/s | ||||
| Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V | |
| Supply Current | Icc5 | 220 | mA | |||
| Operating Case Temp. | Tc | 0 | 70 | °C | ||
| -10 | 80 | °C | ||||
| -40 | 85 | °C |
OPTICAL CHARACTERISTICS
l )Transmitter
| arameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Operating Wavelength | λC | 1270 | 1310 | 1360 | nm | |
| 1470 | 1490 | 1510 | ||||
| Ave. output power (Enabled) | Po | -8 | -4 | dBm | 1 | |
| Extinction Ratio | ER | 9 | dB | 1 | ||
| RMS spectral width | Δλ | 4 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 0.26 | ps | 2 | ||
| Output Eye Mask | Compliant with IEEE802.3 z (class 1 laser safety) | |||||
Note (1): Measure at 2^23-1 NRZ PRBS pattern
Note (2): Transmitter eye mask definition
2)Receiver
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Operating Wavelength | 1470 | 1490 | 1510 | nm | ||
| 1270 | 1310 | 1360 | ||||
| Sensitivity | Psen | -22 | dBm | 1 | ||
| Min. overload | Pimax | -3 | dBm | |||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -23 | dBm | 2 | ||
| LOS Hysteresis | Pd-Pa | 0.5 | 6 | dB |
Note (1): Measured with Light source 1490nm(1310nm), ER=9dB; BER =<10^-12 @PRBS=2^23-1 NRZ.
Note (2): When LOS de-asserted, the RX data+/- output is signal output.
Ordering Information
| SFP BIDI,LC,Tx1310/Rx1550nm 1.25Gbps, 20km, with DDM |
| SFP BIDI,LC,Tx1550/Rx1310nm 1.25Gbps, 20km, with DDM |
| SFP BIDI,LC,Tx1310/Rx1550nm 1.25Gbps, 20km, without DDM |
| SFP BIDI,LC,Tx1550/Rx1310nm 1.25Gbps, 20km, without DDM |






                             |
