| Categories | Bitumen Emulsion Plant |
|---|---|
| Brand Name: | ZOOMLINE |
| Model Number: | YR-6/8/10 |
| Certification: | ISO, CE, EAC |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Supply Ability: | 5 sets per month |
| Delivery Time: | within 20 working days |
| Packaging Details: | Standard container |
| Application: | Mainly used in highway construction and highway maintenance projects. |
| Capacity: | 1-8t/h |
| Voltage: | 380/220v-50hz |
| Color: | Customized |
| Warranty: | 12 months |
| After-sales Service: | Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service |

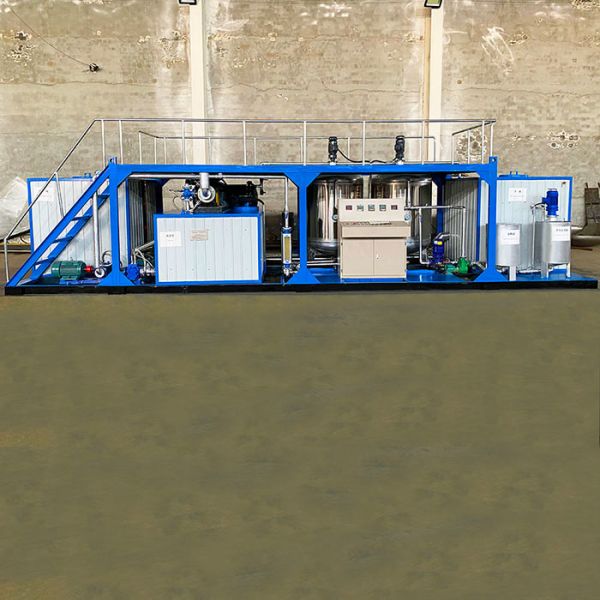

The bitumen emulsifying equipment developed by our company has the advantages of simple structure, convenient operation, wide range of bitumen content, stable quality, and can meet the requirements of different construction technologies. It has been widely used in highway construction and highway maintenance projects.
| Model | YR-6 | YR-8 | YR-10 | |
| Capacity | l-6T/h | l-8T/h | l-10T/h | |
| Butimen emulsified fineness | ≤5um accounted for 85% | ≤5um accounted for 85% | ≤5um accounted for 85% | |
| Parting size(L*W*H) | 6000*2000*2300mm | 6000*2000*2300mm | 10000*2300*2300mm | |
| Emulsion blending tank(Diameter * height) | 1150*1250mm | 1150*1250mm | 1150*1250mm | |
| Bitumen transfer tank(L*W*H) | 1500*1400*1500mm | 1500*1400*1500mm | 1800*1500*1500mm | |
| Water heating tank(L*W*H) | 1500*1400*1500mm | 1500*1400*1500mm | 1800*1500*1500mm | |
| Finished box | L×W×H =1000*800*800mm | L×W×H =1000*800*800mm | L×W×H =1800*1500*1500mm | |
| Bitumen speed regulating pump | Model | LCP-5A | LCP-5A | LCP-5A |
| Motor | YCT160-4B(4kw) | YCT160-4B(4kw) | YCT160-4B(4kw) | |
| Flow | 4.5T/h | 5T/h | 5T/h | |
| Emulsion speed control pump | Model | LCP-5B | LCP-5B | LCP-5B |
| Motor | YCT160-4B(3kw) | YCT160-4B(3kw) | YCT160-4B(3kw) | |
| Flow | 5T/h | 5T/h | 5T/h | |
| Emulsification machine | Model | MR-10 | RH-10 | RH-10 |
| Motor | Y160M2-2(30kw) | Y160M2-2(30kw) | Y160M2-2(37kw) | |
| Flow | 6T/h | 10T/h | 10T/h | |
| conveying pump | Model | LCBS-6A | LCBS-6A | LCBS-6A |
| Motor | Y132Ml-6(3kw) | Y132Ml-6(4kw) | Y132Ml-6(4kw) | |
| Flow | 6T/h | 10T/h | 10T/h | |
Performance characteristics:
• The emulsified bitumen production core component emulsifier (ie colloid mill) is developed by our company and adopts a unique stator-rotor clearance adjustment structure to maintain a very small stable gap. The specially treated stator and rotor have good wear resistance and corrosion resistance, ensuring emulsification effect and stability.
• Equipped with a high-efficiency heat exchanger, the finished emulsified bitumen is cooled to normal temperature by a heat exchanger, which improves its storage stability and provides possibilities for continuous large-scale micro-surface construction.
• Adopt PLC control to precisely control the bitumen content (oil-water ratio) of emulsified bitumen.
• The heat transfer oil heating system is convenient, efficient and efficient, and can realize automatic temperature control.
• All materials in contact with the emulsion are made of high quality stainless steel, which has good corrosion resistance and can be applied to various types of emulsified bitumen production.
Structure composition of emulsified bitumen equipment
1. Emulsion system--It is composed of emulsion tank AB, flowmeter, emulsion pump, regulating valve, etc.
2. Emulsified bitumen System--It consists of emulsifier, sampling valve, heat exchanger, etc.
3. Heat Exchange System--It consists of heat exchanger, emulsified asphalt discharge pipeline, submersible pump (or sewage pump) and cooling water inlet and outlet pipeline.
4.
|
