Gray 3 Pin Connector Female 6189-0165 / Sumitomo Electric Connectors For Toyota

Categories	Sumitomo Sealed Connectors
Brand Name:	YBADDVANCE
Model Number:	6189-0165
Certification:	ISO9001
Place of Origin:	China(mainland)
MOQ:	100 UNITS
Price:	Negotiation
Payment Terms:	T/T, Western Union,paypal,credit card
Supply Ability:	50,000 units/month
Delivery Time:	About 5-8 work days
Packaging Details:	Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.
Series:	Sumitomo TS Sealed 4.8mm Series
Sumitomo P/N:	6189-0165
Sealed/Unsealed:	Sealed
Color:	Gray
Material:	PBT
Tab size(mm):	4.8mm(187)
Mating Parts:	6188-0129 (TS sealed series)
Number of position:	3 Pin
Leak current:	100μA Max.
Insulation resistance:	100MΩ Min.

Contact Now

Add to Cart

Company Info.

Xi'An YingBao Auto Parts Co.,Ltd

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

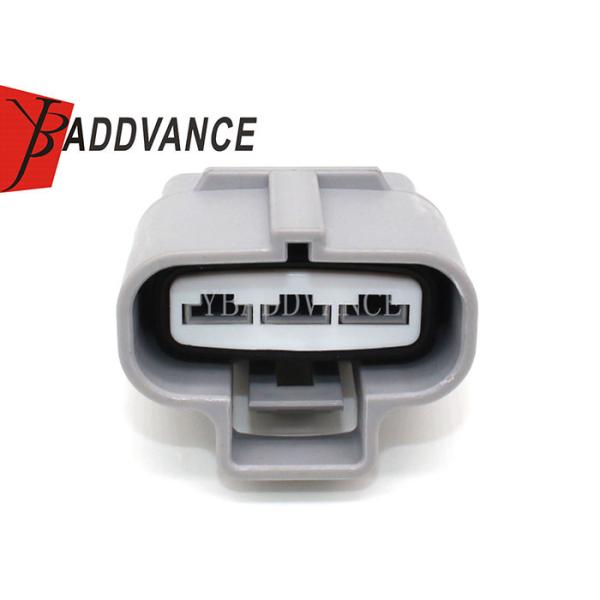

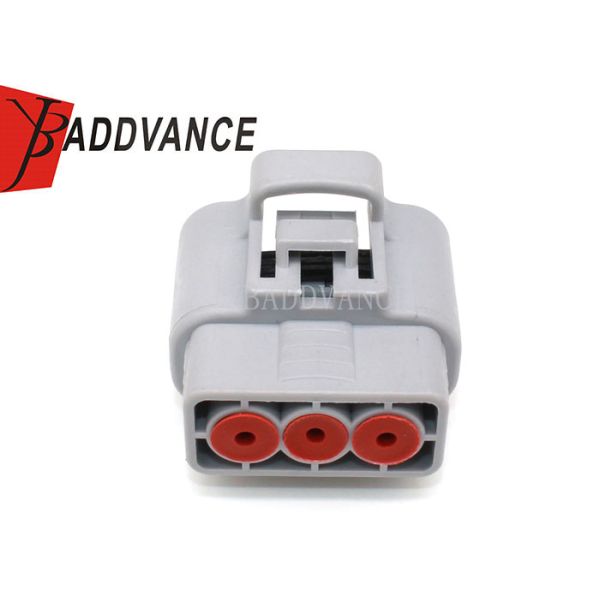

Sumitomo 6189-0165 3 Pin Female Connector Gray For Toyota Corolla Camry

Product Description

3 Pin sumitomo TS series sealed connector female Includes terminals and seals.

This connector we also have male type that is sumitomo 6188-0129.

What's Included:

1 X female housing
3 X female termianls
3 X wire seals
1 X white locking clip

Specification

Keywords	Sumitomo 3 Pin female connector
Sumitomo Part Number	6189-0165
Series	TS sealed 4.8mm series
Male/Female	female
Material	PBT
Number of Rows	1 row
Number of Pin	3 Pin
Leak current	100μA Max.
Insulation resistance	100MΩ Min.
Seal	Initial 49.0kPa Min. after durability tests 29.4kPa Min.
Quality Control	All goods will be 100% inspected before shipment
Color	Gray
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1.5kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

More details about pictures
