| Categories | Hydrophilic Aluminium Foil |
|---|---|
| Brand Name: | GBS |
| Model Number: | GBS-QSB |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 5mts |
| Payment Terms: | L/C, T/T, D/A, D/P |
| Supply Ability: | 1800mts per month |
| Delivery Time: | 25-35 works day |
| Packaging Details: | wooden box |
| surface: | golden, blue,white |
| appliaction: | cooling exchanger,air conditioners,etc |
| packing: | wooden box |
| alloy: | AA8011/1100/3102 |
| Thickness: | 0.089--0.25mm |
| Temperor: | O,H22 |

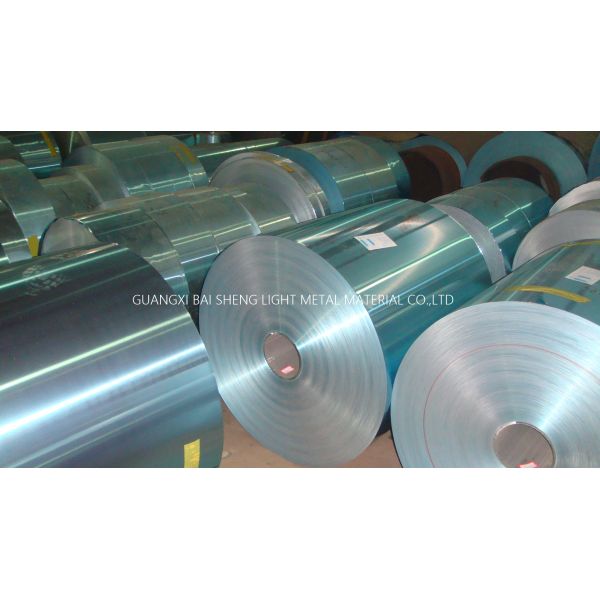

HYDROPHLIC ALUMINIUM FINSTOCK
Hydrophlic aluminium foill, golden, blue, white,for
airconditioners,AA8011/3102
Product Description

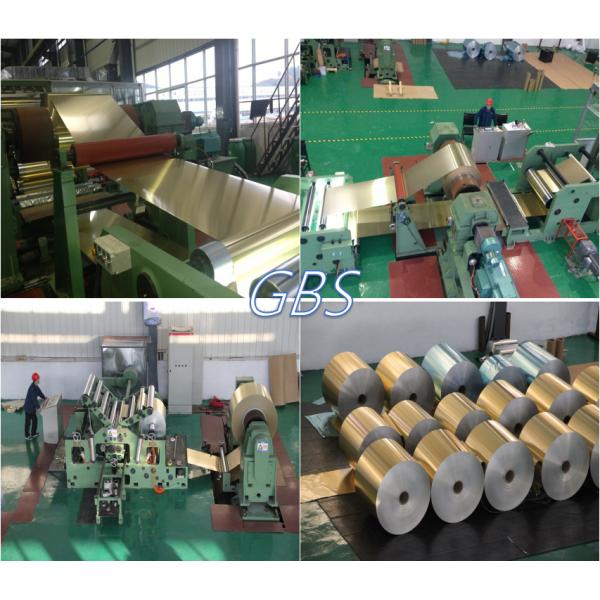

GBS have 4 aluminium hydrophlic finstock production lines which are
able to produce annual 28000mts different color of aluminium
finstock which is widely used in airconditoners, heat exchangers,
colling machines.ALuminium coated finstock(hydrophlic finstock)
Technical data
| Alloy No. | Temper | (mm)Thickness | T.S(MPa) | Elogation50mm | Cup burst value |
| 1100 | H22 | 0.09-0.20 | 95-135 | ≥15 | ≥5.5 |
| H24 | 0.09-0.20 | 125-145 | ≥13 | ≥5.0 | |
| 1200 | H26 | 0.09-0.20 | 125-160 | ≥10 | ≥4.5 |
| 8011 | H22 | 0.09-0.20 | 120-140 | ≥20 | ≥6.0 |
| H24 | 0.09-0.20 | 125-150 | ≥15 | ≥5.5 | |
| H26 | 0.09-0.20 | 130-155 | ≥10 | ≥5.0 | |
| 1030B | H26 | 0.09-0.20 | 130-155 | >9.5 | >4.5 |
| category | Alloy | Temper | Specification(mm) | |
| Organic hydrophlic aluminium foil | Blue, | AA1100 | O | Thickness:0.08-0.30 |
| Inorganic hydriphlic aluminium foil | LG white and green | |||
Thickness tolerance(mm)
| Thickness(mm) | Tolerance(mm) |
| 0.080 | ±0.005 |
| > 0.115-0.130 | ±0.008 |
| > 0.130-0.32 | ±0.010 |
Width tolerance(mm)
| Width(mm) | tolerance |
| ≤500 | +1.0,-0.5 |
| > 500 | ±1.0 |
Inspection items
Item | Features & requirements | Test items | Test methods | Requirements | |
| 1 | Coating thickness | Thickness | Chambre captivity | (Single side)(0.001mm-0.002mm) | |
| 2 | Adgesiive power | Adhesion test | Blade grid maker | Coat not fall off | |
| Cupping test | Cupping machine | Coat not fall off | |||
| bend test | Vise | Coat not fall off | |||
| 3 | hydrophilic(initial stage) | Contact angle | Drip contact | ≤10°or ≥2.5mm | |
| After washing | Drip contact | ≤15°or≥2.5mm | |||
| Water drop test | ≥3.0mm | ||||
| 4 | (continuance)hydrophilic | Dead water dipping test | Dry and met cycle tank | ≤30°or≥2.5mm | |
| Dry and wet cycle test | ≤35°or≥2.5mm | ||||
| 5 | Corrosion | Salt.spray test | (72h)Salt.spray tester | ≥tNo9.8 | |
| 6 | Heat-resisting Property | 200℃ | Heat 5℃ min in the oven at 200℃ |
| |
| 7 | Solvent Resistance | Heat and dissolve trethylene | ≤1% | ||
| 8 | Alkaline Resistance | The change of hydrophilicity after alkali eroding | ≥2.5mm | ||
| 9 | Anti-volatility | Naphtha's effect on coat's hydrophilicity | ≥2.5mm | ||
| 10 | Trethylene-resistant | trethylene's on coat's hydrophilicity | ≥2.5mm | ||
| 11 | Shapability | During manufacturing, check the abrasion of high died mould by hydro-coat. | No abrasion to high died mould | ||
Features: excellent coating performance,uniform mechnical
performance,processing adaptability,excellent hydrophlic
envirements
chararestics
advantage: widely used in all over the world, LG, geree,etc world
famous company are our long term customers for years
|
golden aluminium finstock , application of heater, evaporators, cooling machines
