| Categories | General Purpose Rectifier Diode |
|---|---|
| Brand Name: | XUYANG |
| Model Number: | S2A ~ S2M |
| Certification: | ISO9001/RoHS |
| Place of Origin: | China |
| MOQ: | 3000PCS |
| Price: | negotiation |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 1000000pcs per month |
| Delivery Time: | 7 - 10 work days |
| Packaging Details: | 5000pcs/reel |

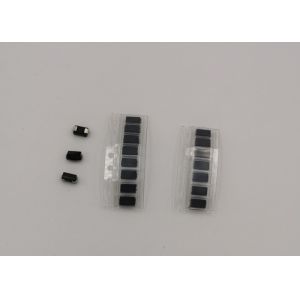

| Product Name: | S2A ~ S2M |
| Current: | 2A |
| Voltage: | 50-1000V |
| Package: | SMB/DO-214AA |
| Packing: | Tape in reel |
| SPQ: | 3000pcs |
The rectifier diode is a semiconductor device that utilizes the unilateral conductivity of the
PN junction to convert the alternating current into a pulsating direct current. When choosing
a rectifier diode, the parameters such as maximum rectification current, maximum reverse
operating current, cut-off frequency, and reverse recovery time should be considered.
Feature
1. The plastic package carries Underwriters Laboratory Flammability Classification
94V-0
2. For surface mounted applications
3. Low reverse leakage
4. Built-in strain relief,ideal for automated placement
5. High forward surge current capability
6. High temperature soldering guaranteed: 250°C/10 seconds at
terminals
MECHANICAL DATA:
Case: JEDEC DO-214AA molded plastic body
Terminals: leads solderable per MIL-STD-750, Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight: 0.005 ounce, 0.138 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25°C ambient temperature uniess otherwies specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
| TYPE NUMBER | S2A | S2B | S2D | S2G | S2J | S2K | S2M | Unit |
| Maximum Recurrent Peak Reverse Voltage | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS Voltage | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC Blocking Voltage | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
Maximum Average Forward Rectified Current .375"(9.5mm) Lead Length at Ta=110°C | 2.0 | A | ||||||
Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) | 60 | A | ||||||
| Maximum Instantaneous Forward Voltage at 2.0A | 1.1 | V | ||||||
Maximum DC Reverse Current Ta=25°C at Rated DC Blocking Voltage Ta=125°C | 5.0 200 | mA mA | ||||||
| Typical Junction Capacitance (Note 1) | 30 | pF | ||||||
| Typical Thermal Resistance (Note 2) | 16 | °C /W | ||||||
| Storage and Operation Junction Temperature TSTG,TJ | -65 to +150 | °C | ||||||
Drawing:


Why choose us?
1. ISO9001:2008 certified factory
2. 20 years rich experience in the diode production
3. Strict quality control, achieve customer's maximum satisfaction
4. The Annual production capacity is over 2 billion
|
