Gear Box Drive 165mm High Frequency Welded Pipe Mill

1. Description of goods:

MA-Φ165 High Frequency Welded Pipe Mill with gear box drive high speed froming unit

2. Specification:

Material to be processed: carbon steel, cold hot rolled pre slit strip coils of weld able grade with max. 0.2% carbon

Type of Production: Round Tubes, Squar, Square and Rectangular Hollow Sections

Round Tube Outside Diameter: Min 50.8, Max 165mm

Square Hollow Section: Min 40x 40, Max 130 x 130 mm

Rectangular Hollow Section: Min 40 x 60, Max 100x 160 mm

Tube Thickness: Min 1.8 Max 6.0 mm

Forming Line Speed: Max 55 m/min

(Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)

Tube Cut Length: Min 4 Max 15meter

Length Accuracy: ± 3mm

3. Line Composition:

V-shape pre-discharging table (V coil stand)

Hydraulic charging wagon (coil car)

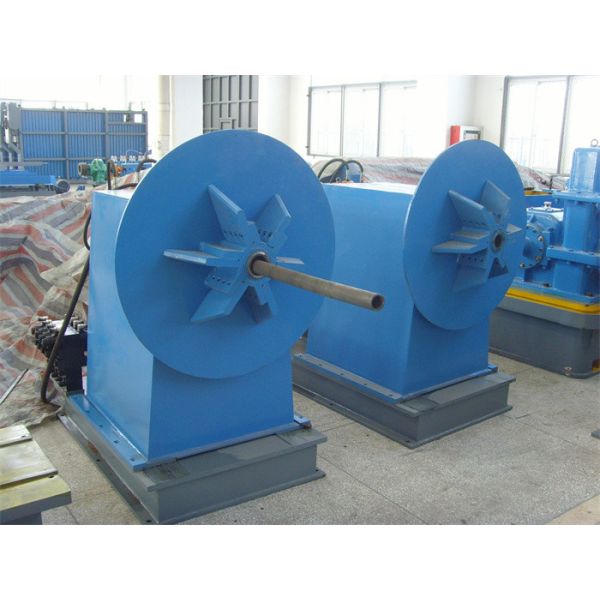

Hydraulic discharging machine (uncoiler)

HydraulicShear and TIG Welder.

Horizontal Strip Accumulator.

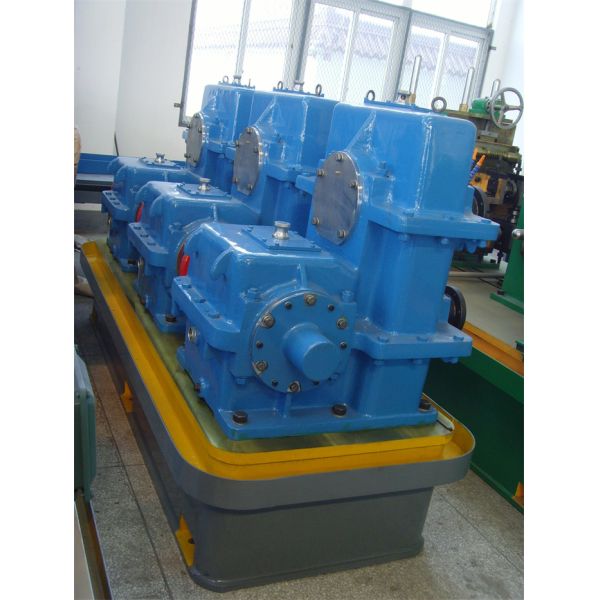

Forming, Welding, Cooling and Sizing Section. Drive Motor: DC 132 kW+ 132 kW

Computer Flying Saw Cut-Off.

Straightener

End Milling and Chamfering Machine

Baling Press

Driven Roller Run Out Table, Inspection table & Collectors.

Solid State H.F. Induction Welder: 400 kW, Solid State Type

Rolls: Rolls are manufactured out of AISI D3 D2 or E52100

Hydraulic Units

Electrical Panels

4. Technical parameter:

WUXI MAZS MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD. is a high-tech enterprise which is engaged in developing, manufacturing and trading. We have one science part and four production bases. Our main products are metallurgy machinery such as metal coil cold rolling mill lines, slitting lines, HF welded pipe mill lines, cut-to-length lines, roll forming machines, etc.

Which not only has been sold in all parts of China but also has been exported to South Asia, Middle East, Europe, American, etc.

We are the council member of China Welding Association, the standing council member of China Metal Structure Association, National Spark Plan High-tech Enterprise, Jiangsu Star Enterprise, Jiangsu Comprehensive Management Demonstration Enterprise. We are the manufacturing enterprise participated in the above mentioned Equipment Standard. We take the lead in passing ISO9000 quality system certification and CE certificate.

Our unchangeable policy: “Proceed from Optimum in Everything; and Satisfy Customer’s Demand and Expectation with High Quality Products and Excellent Service.”

Bearing grateful heart always in mind, we are willing to cooperate with all customers from home and abroad to create a new brilliance together.
